Once again, the EM1000-...- 00 is a legacy part that has been replaced with the
EM1000-...- 01. In case you have already made the PCB based on the EM1000-...-
00 specifications and are not willing to change it, you can easily modify it to

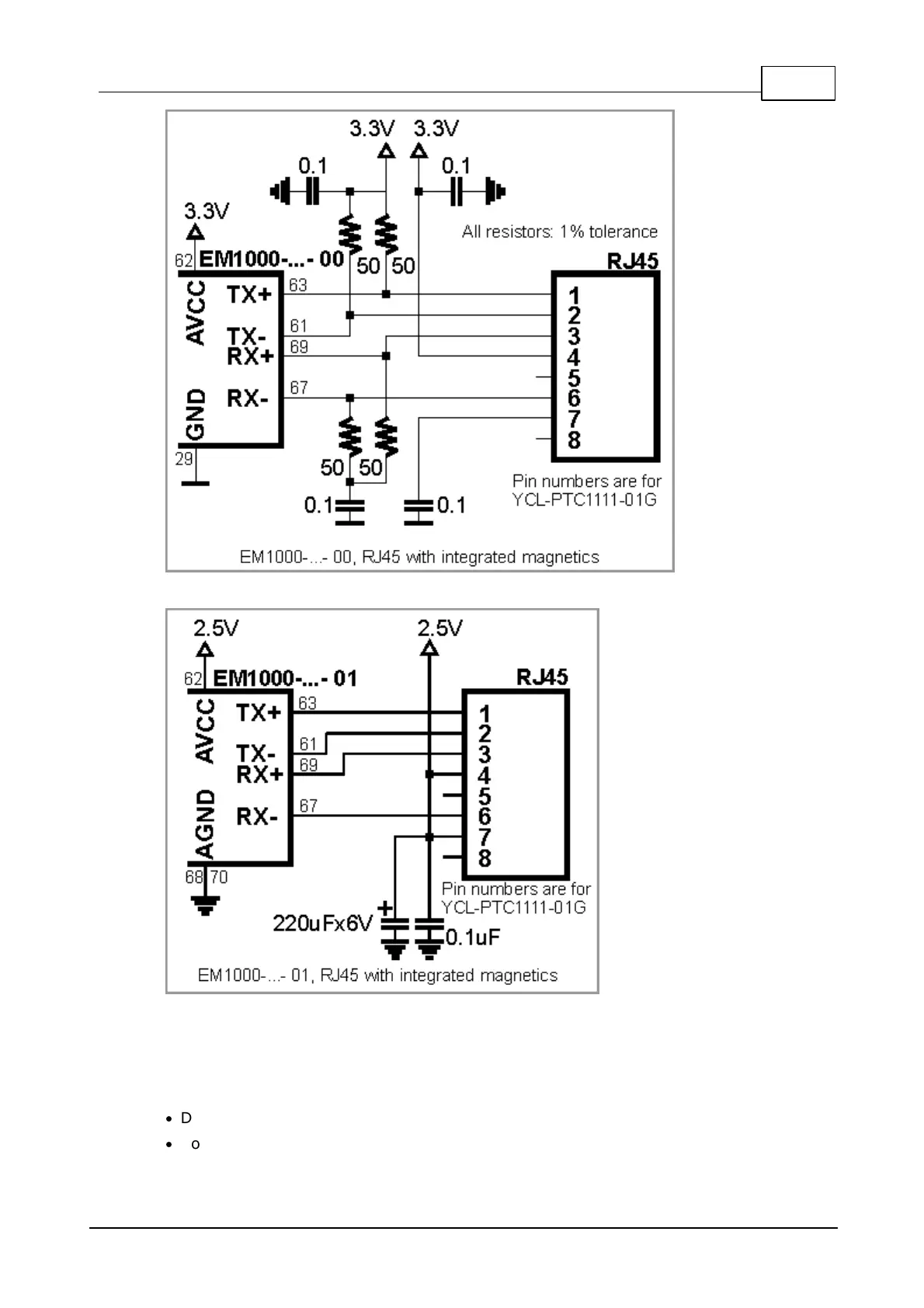

accommodate the EM1000-...- 01 (see diagram below):
·
Do not install four 50 Ohm resistors (they are crossed out on the diagram).
·
Connect a wire between pins 4 and 7 of the RJ45 connector (pin numbers are for
YCL-PTC1111-01G).
