YASKAWA V1000 Series Technical Manual

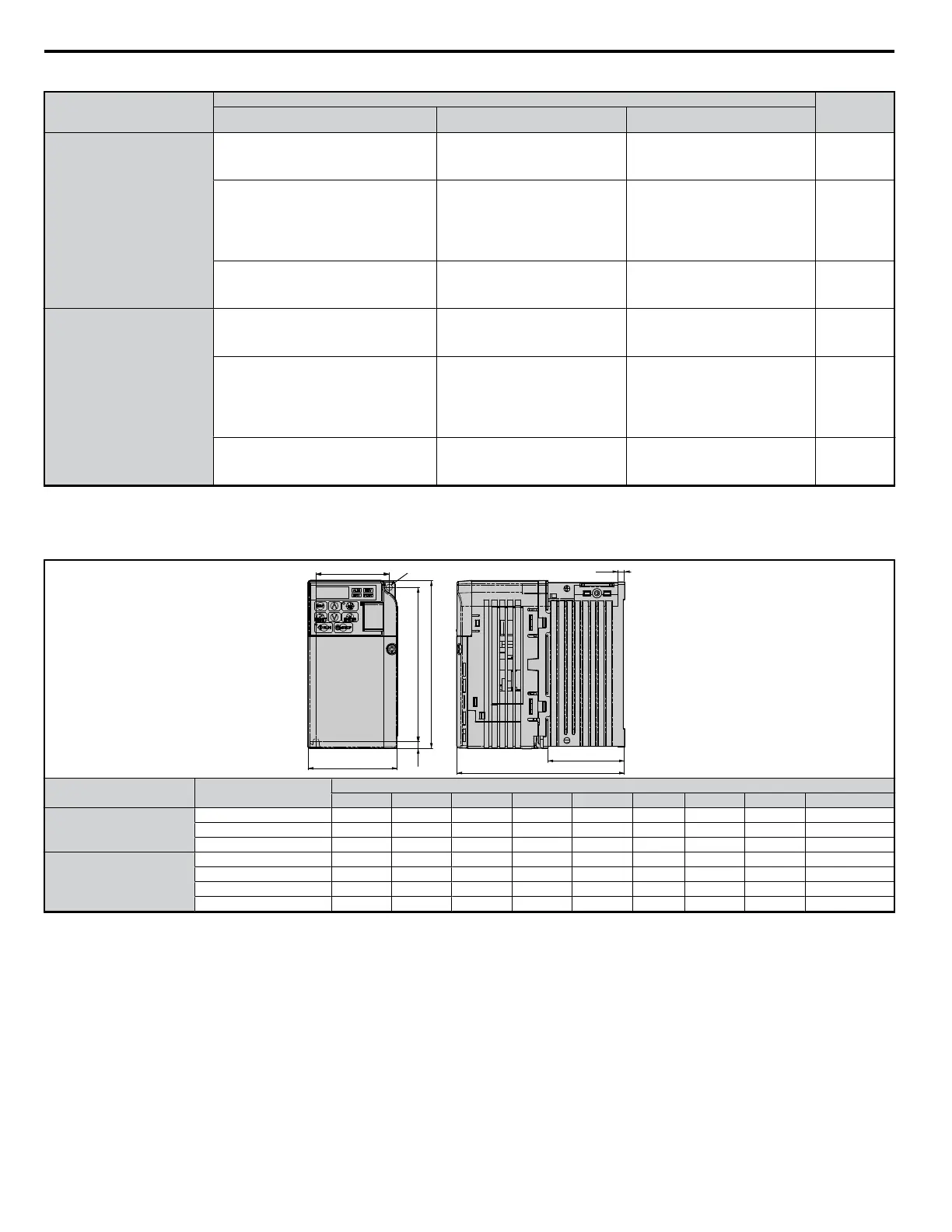

Table 2.2 Drive Models and Types
Protective Design
Drive Model CIMR-Vo
Page
Single-Phase
200 V Class
Three-Phase
200 V Class
Three-Phase
400 V Class
IP20/Open-Chassis
Bo0001B
Bo0002B
Bo0003B
2o0001B
2o0002B
2o0004B
2o0006B
– 28
Bo0006B
Bo0010B
Bo0012B
Bo0018B
2o0010B
2o0012B
2o0020B
4o0001B
4o0002B
4o0004B
4o0005B
4o0007B
4o0009B
4o0011B
29
–
2o0030B
2o0040B
2o0056B
2o0069B
4o0018B
4o0023B
4o0031B
4o0038B
30
IP20/NEMA Type 1
Bo0001F
Bo0002F
Bo0003F
2o0001F
2o0002F
2o0004F
2o0006F
– 29
Bo0006F
Bo0010F
Bo0012F
Bo0018F
2o0010F
2o0012F
2o0020F
4o0001F
4o0002F
4o0004F
4o0005F
4o0007F
4o0009F
4o0011F
30
–
2o0030F
2o0040F
2o0056F
2o0069F
4o0018F
4o0023F
4o0031F
4o0038F
30
Note: Refer to Specifications on page 281 for information on the amount of heat generated by the drive and appropriate cooling methods.
n
IP20/Open-Chassis Drives
Table 2.3 IP20/Open-Chassis (without an EMC filter)
D1
t1
D
2-M4
W1
H1H2
W
H
Voltage Class
Drive Model
CIMR-Vo
Dimensions (in)
W1 H1 W H D t1 H2 D1 Weight (lb)
Single-Phase
200 V Class
BA0001B 2.20 4.65 2.68 5.04 2.99 0.12 0.20 0.26 1.32
BA0002B 2.20 4.65 2.68 5.04 2.99 0.12 0.20 0.26 1.32
BA0003B 2.20 4.65 2.68 5.04 4.65 0.20 0.20 1.52 2.20
Three-Phase
200 V Class
2A0001B 2.20 4.65 2.68 5.04 2.99 0.12 0.20 2.26 1.32
2A0002B 2.20 4.65 2.68 5.04 2.99 0.12 0.20 2.26 1.32
2A0004B 2.20 4.65 2.68 5.04 4.25 0.20 0.20 1.52 1.98
2A0006B 2.20 4.65 2.68 5.04 5.04 0.20 0.20 2.30 2.43
2.2 Mechanical Installation
28
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
