5. CONFIGURATION
Parameter Description
Factory De-
fault
Possibilities
Parameter w (APDUs)
Maximum number of
data messages (I-Frame)
received and not acknowl-
edged
8 1 to 8
Table 146: IEC 60870-5-104 Server Link Layer Configuration
Note:
The fields Time-out t1 (s), Time-out t2 (s) and Time-out t3 (s) are dependents between themselves and must be configured
in a way that Time-out t1 (s) be bigger than Time-out t2 (s) and Time-out t3 (s) be bigger than Time-out t1 (s). If any of these
rules be not respected, error messages are going to be generated during the project compilation.
ATTENTION
For slow communication links (example: satellite communication), the parameters Time-out
t1 (s), Time-out t2 (s) and Time-out t3 (s) must be properly adjusted, such as doubling the
default values of these fields.
5.5.14.6. Application Layer
To configure the IEC 60870-5-104 Server application layer, shown on figure below, follow the parameters described on
table below:

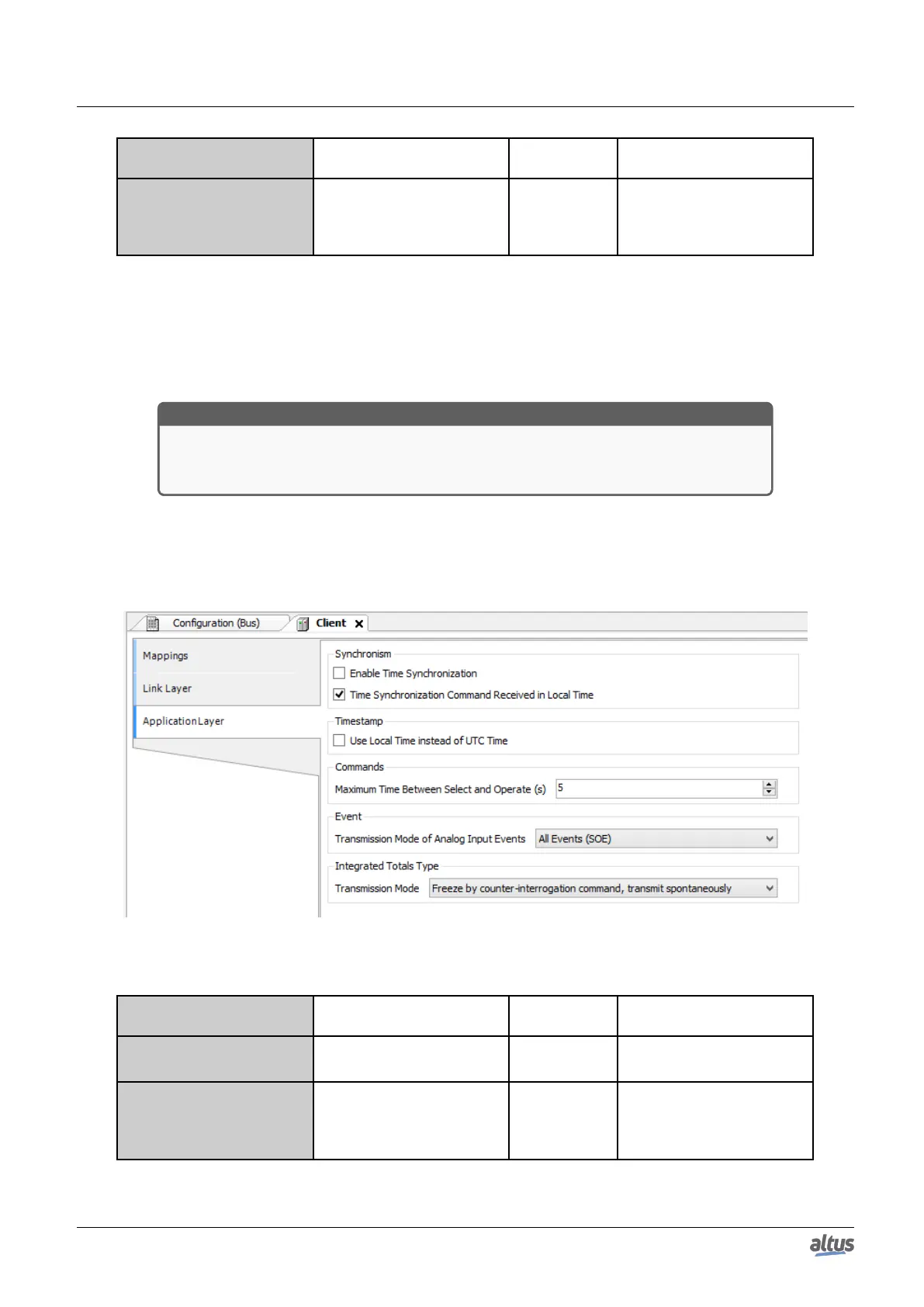

Figure 126: Server IEC 60870-5-104 Application Layer Configuration Screen
Parameter Description
Factory De-
fault
Possibilities
Enable Time Synchroniza-
tion
Option to Enable/Disable
time sync request
Disabled
Disabled
Enabled
Time Synchronization
Command Received in
Local Time
Option to Enable/Disable
the treatment of the synchro-
nization command in local
time
Enabled
Disabled
Enabled
