ALTUS Nexto Series User Manual

7. MAINTENANCE
Direct representation Size
AT DG vari-
able_Modulo.tDetailed.*
Description
%QW(n+661)
WORD
SOE[1].
wEventsCounter
Customer Queue Event Counter 01
%QX(n+663).0
BIT
SOE[2].
bConnectionStatus
Client Connection Status 02
%QX(n+663).1
BIT
SOE[2].
bOverflowStatus
Client event queue status 02:
FALSE - No overflow
TRUE - Queue limit exceeded
%QB(n+664)
BYTE
SOE[2].
byReserved_0
Reserved.
%QW(n+665)
WORD
SOE[2].
wEventsCounter
Client queue event counter 02.
Table 241: SOE Group Detailed Diagnostics
Notes:
Synchronization of SOE group diagnostics in a system operating with Half-Cluster redundancy: When a project is
configured with Half-Cluster redundancy, the SOE group diagnostics are not synchronized between the two Half-Clusters.
Updating SOE group diagnostics on transition to active state: When a Half-Cluster goes from Standby state to Active
state, SOE group diagnostics are updated from the third cycle on.
Direct representation Size
AT DG vari-
able_Modulo.tDetailed.*
Description
%QD(n+667)
DWORD
Rack.
dwAbsentRacks
Each bit represents an identification number of
a rack, if any bit is TRUE, it means that the rack,
with that identification number, is absent.
%QD(n+671)
DWORD
Rack.
dwDuplicatedRacks
Each bit represents an identification number of
a rack, if any bit is TRUE, it means that more
than one rack is configured with the same iden-
tification number.
%QD(n+675)
DWORD
Rack.
dwNonDeclaredRacks
Each bit represents a rack identification number,
if any bit is TRUE, it means that there is a rack
configured with an identification number that is
not declared in the project.
Table 242: Rack Group Detailed Diagnostics
Direct representation Size
AT DG vari-
able_Modulo.tDetailed.*
Description
%QD(n+681)
DWORD
ApplicationInfo.
dwApplicationCRC
32-bit CRC of the application. When the appli-
cation is modified and sent to the CPU, a new
CRC is calculated.
Table 243: ApplicationInfo Group Detailed Diagnostics
7.1.6. Diagnostics via Function Blocks
The function blocks allow the visualization of some parameters which cannot be accessed otherwise. The function regard-
ing advanced diagnostics is in the NextoStandard library and is described below.
7.1.6.1. GetTaskInfo
This function returns the task information of a specific application.

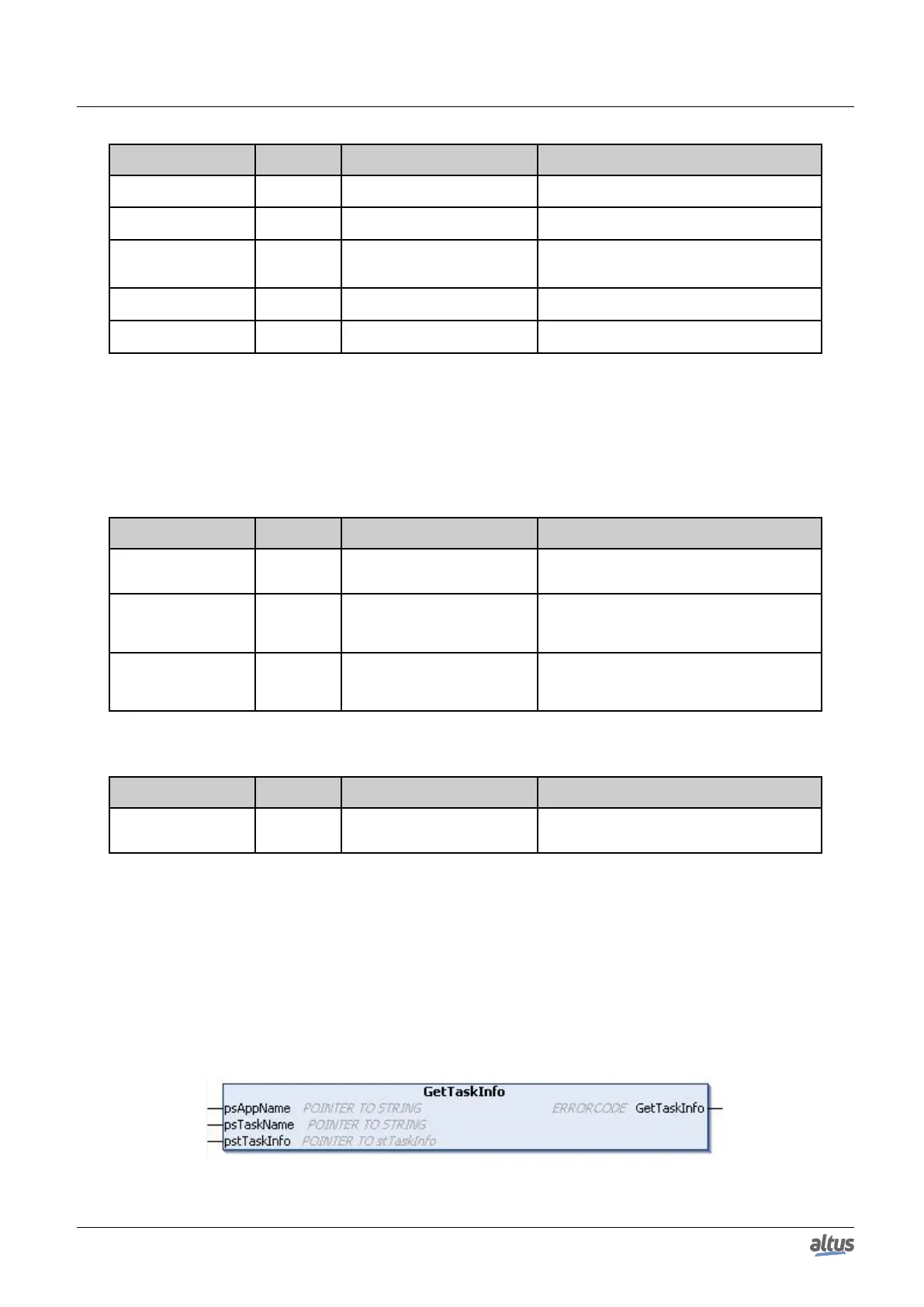

Figure 196: GetTaskInfo Function
370
