3. INSTALLATION
ready to be taken off. For that, the card must be pressed against the CPU until a click is heard, then release it and withdraw it
from the compartment as showed on figure below. At this moment the card will be loose.

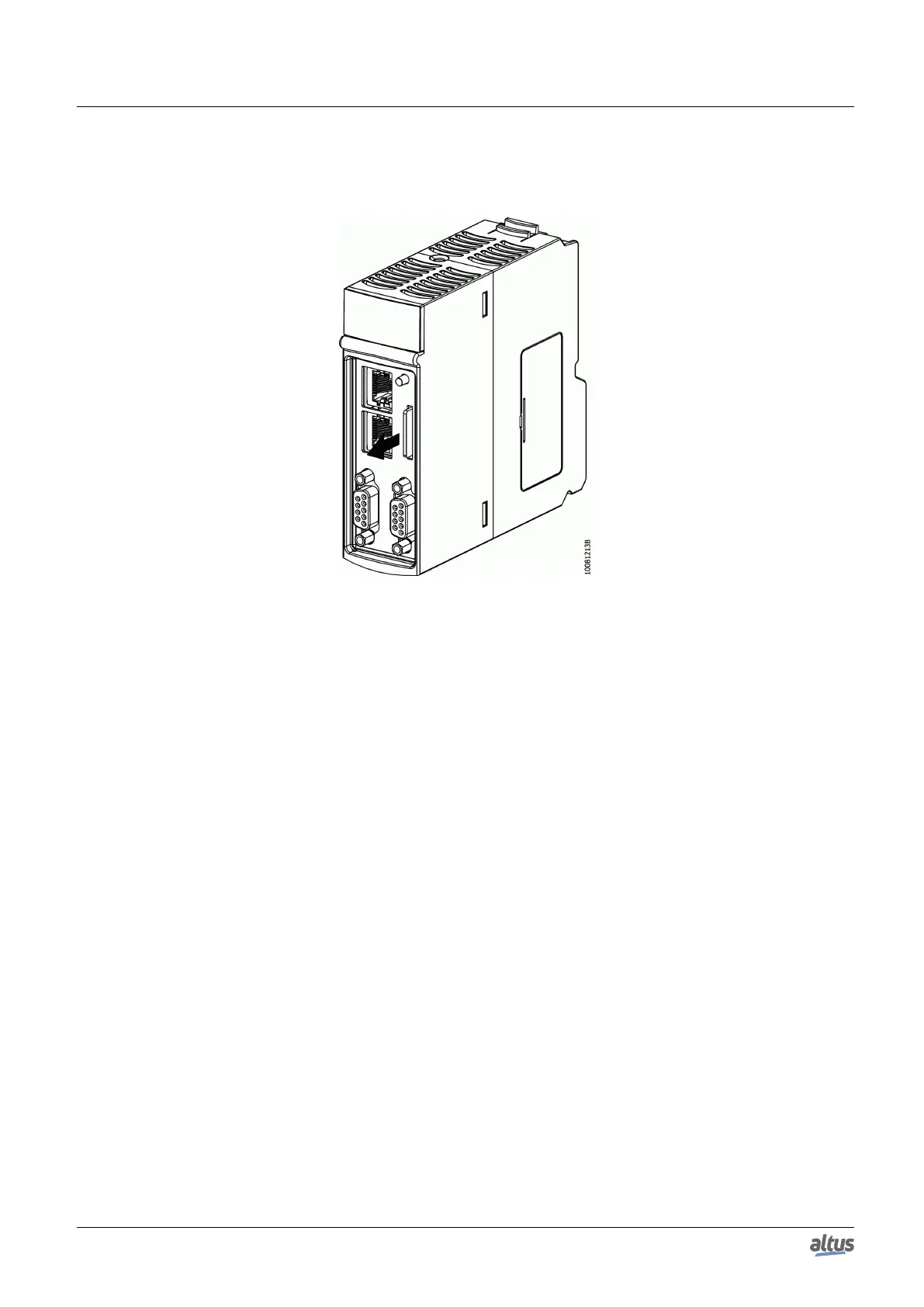

Figure 18: Memory Card Withdrawal
3.7. Architecture Installation
3.7.1. Module Installation on the Main Backplane Rack
Nexto Series has an exclusive method for connecting and disconnecting modules on the bus which does not require much
effort from the operator and guarantee the connection integrity. For further information regarding Nexto Series products
fixation, please see Nexto Series User Manual – MU214600.
3.8. Programmer Installation
To execute the MasterTool IEC XE development software installation, it is necessary to have the distribution CD-ROM or
download the installation file from the site http://www.altus.com.br/site_en/. For further information about the step by step to
installation, consult MasterTool IEC XE User Manual MT8500 – MU299609.
31
