ALTUS Nexto Series

6. REDUNDANCY WITH NX3030 CPU

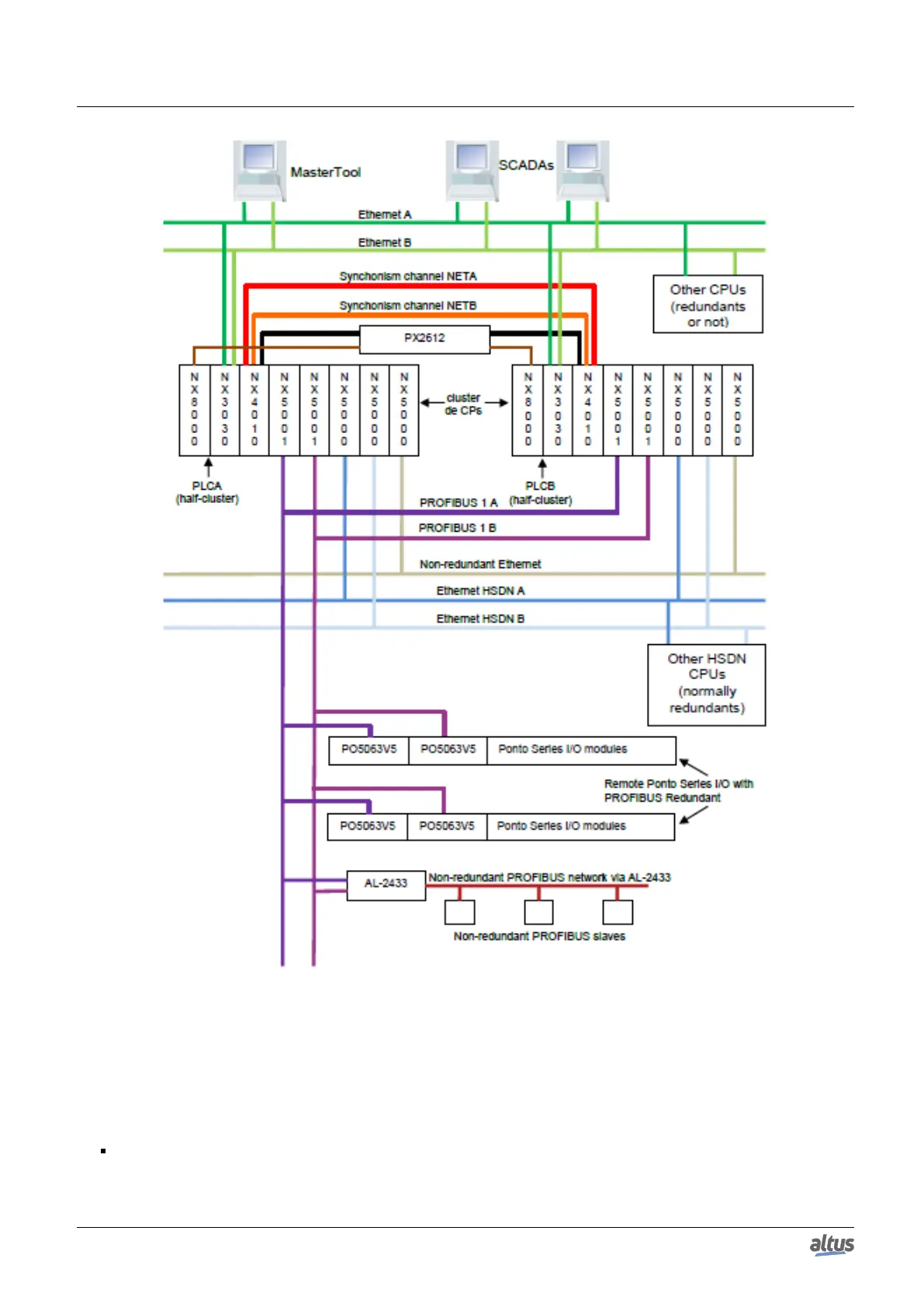

Figure 164: Example of redundant architecture with NX3030 CPU
6.2. Technical Description and Configuration
6.2.1. Minimum Configuration of a Redundant CPU (Not Using PX2612 Panel)
A redundant CPU is composed, at least, by:
Two identical half-clusters
Each half-cluster consists of at least the following modules:
269
