5. CONFIGURATION

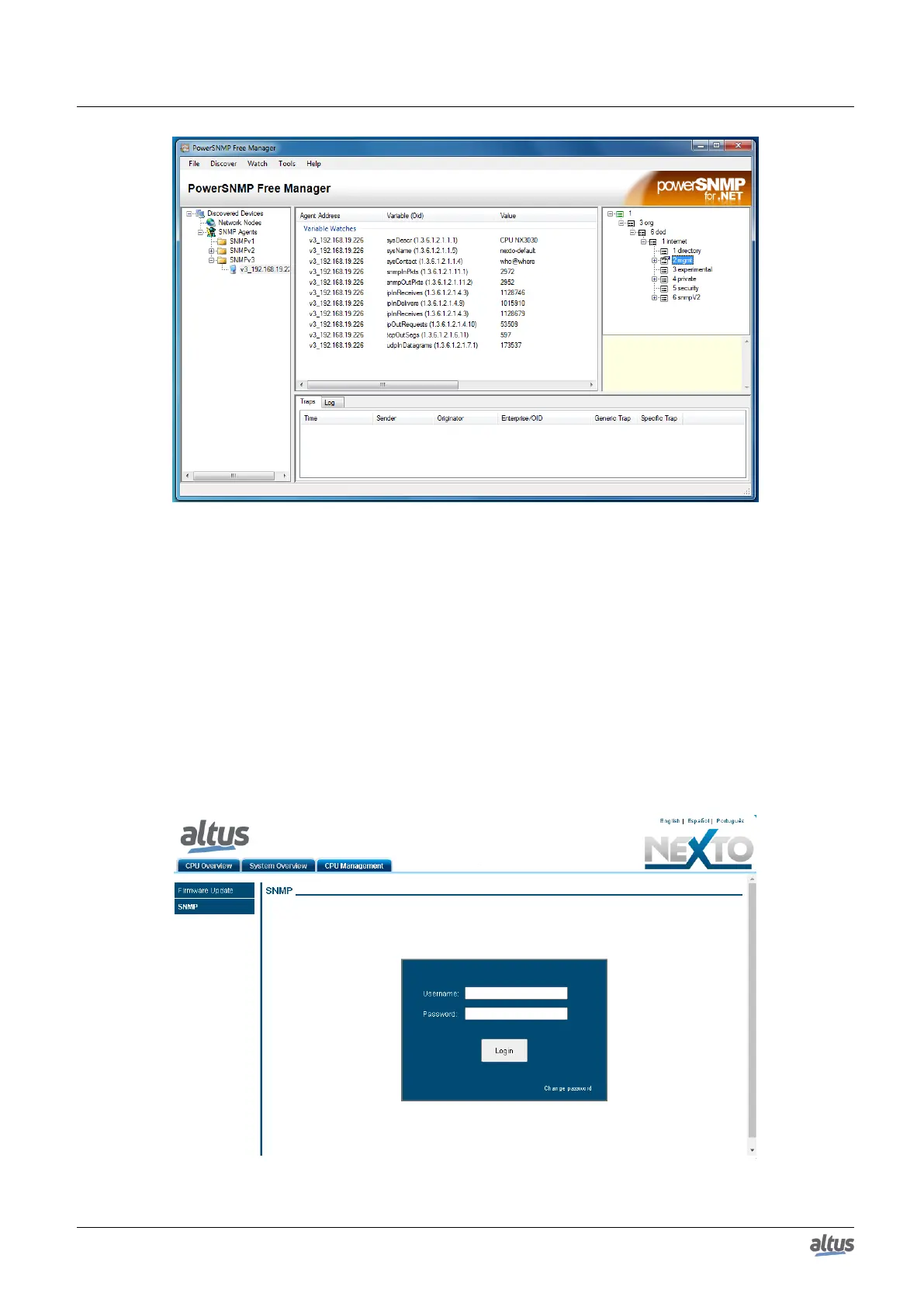

Figure 161: SNMP Manager Example
For SNMPv3, in which there is user authentication and password to requests via SNMP protocol, is provided a standard
user described in the User and SNMP Communities section.
If you want to disable the service, change the SNMPv3 user or communities for SNMPv1 / v2c predefined, you must access
the web page of the CPU. For details, see the SNMP Configuration section.
5.13.3. Private MIB
The Private MIB has been discontinued since June 2019.
5.13.4. SNMP Configuration
SNMP settings can be changed through the web page, in the CPU Management tab in the SNMP menu. To access the
settings, you must first log in, as shown in figure below.
Figure 162: SNMP Login screen
265
