5. CONFIGURATION
The communication times of the MODBUS Server protocol, found on the Advanced... button of the configuration screen,
are divided into: Task Cycle (ms) and Connection Inactivity Time-out (s). Further details are described in MODBUS Server
Protocol General Parameters – Configuration via Symbolic Mapping section.
The diagnostics and MODBUS commands are described in Table 121.
5.5.9.2.2. Mapping Configuration – Configuration via Direct Representation (%Q)
The MODBUS relations settings, viewed in the figures below, follow the parameters described in table below:

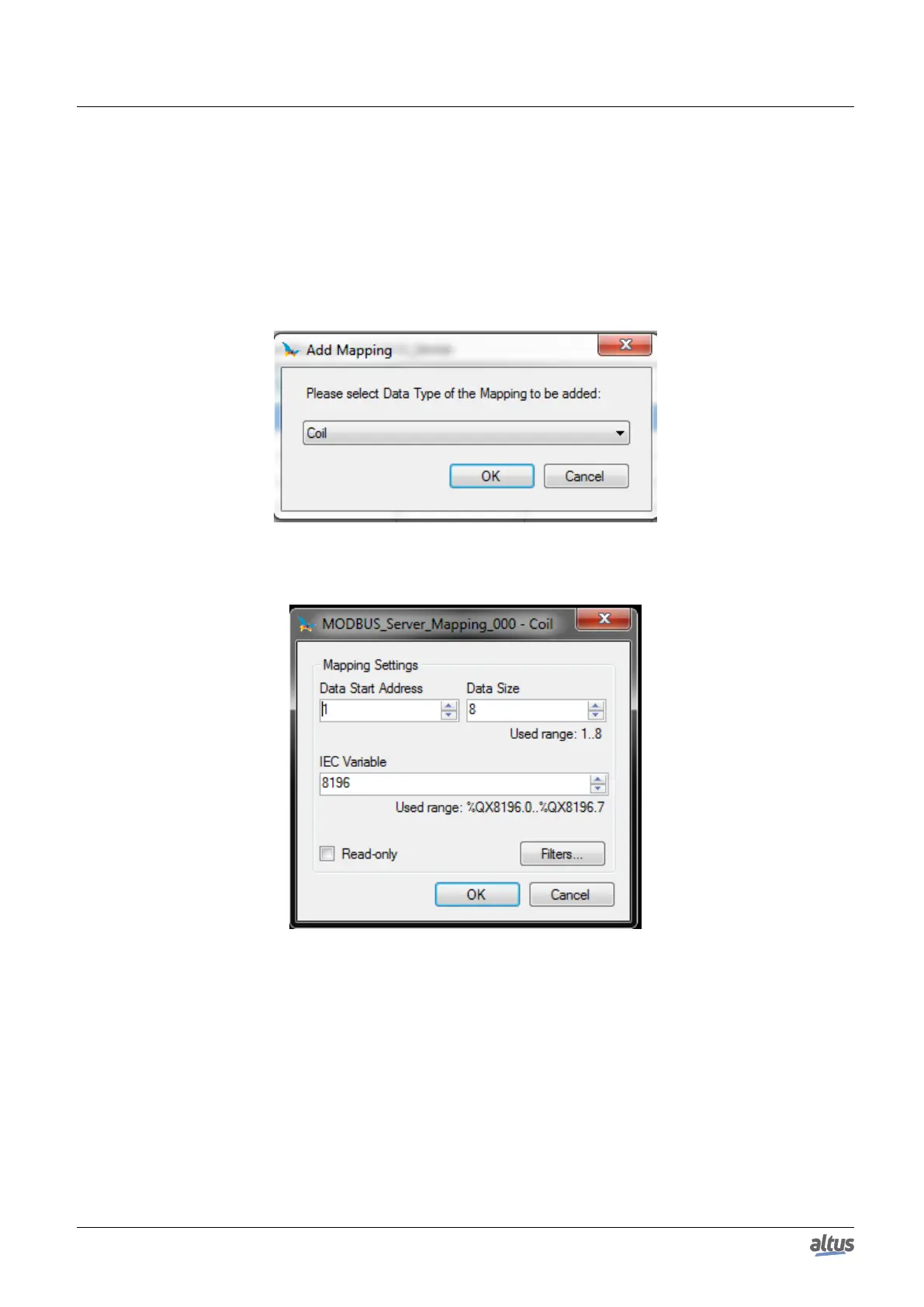

Figure 83: MODBUS Data Type
Figure 84: MODBUS Server Function
150
