5. CONFIGURATION
5.5.13.2.1. General
After open the Adapter declared under the Scanner it’s possible to configure it as needed. The first Tab is General, on it is
possible to configure the IP address and the Electronic Keying parameters. These parameters must be checked or unchecked if
the adapter being used is installed on MasterTool. Otherwise, if the adapter used is type Generic, then the fields Check device
type, Check vendor ID, Check product code, Check major revision and Check minor revision must be fulfilled with the correct
information and the boxes checked as long as needed. The verification can be switched from Compatibility Check to Strict
Identity Check.

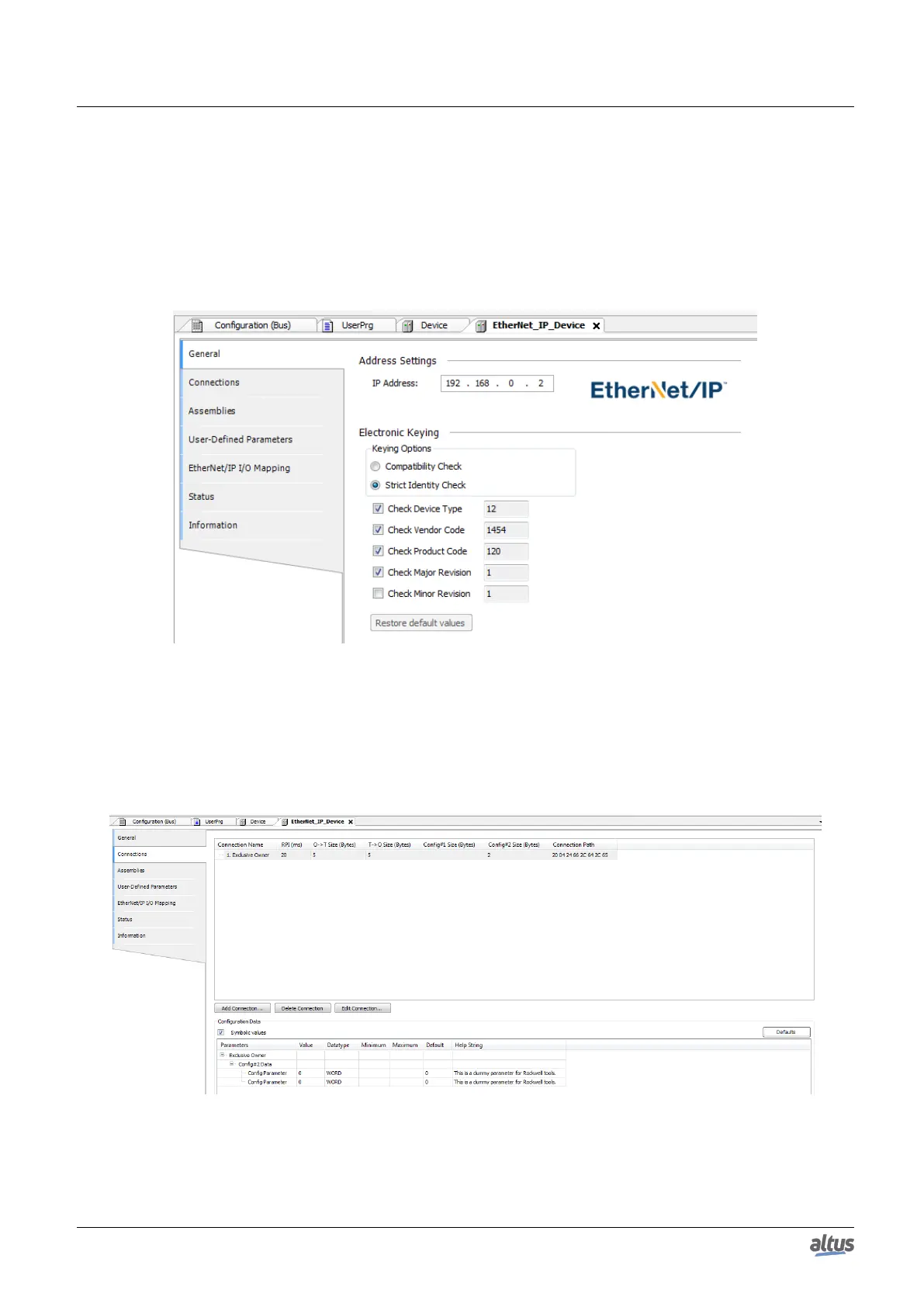

Figure 111: EtherNet/IP General Tab
5.5.13.2.2. Connections
The upper area of the Connections tab displays a list of all configured connections. When there is an Exclusive Owner
connection in the EDS file, it is inserted automatically when the Adapter is added. The configuration data for these connections
can be changed in the lower part of the view.
Figure 112: EtherNet/IP Connection Tab
Notes:
For two or more EtherNet/IP Scanners to connect to the same Remote Adapter:
192
