5. CONFIGURATION
files in the CPU’s internal memory, since it is not possible to transfer files to the root directory. If necessary, the user can create
other folders in the root directory or subfolders inside the “InternalMemory” folder.
The “MemoryCard” folder is the directory where the memory card is mounted, if it is inserted into the CPU. Files which
are transferred to the “MemoryCard” are being transferred directly into the memory card. As new features are being added to
the product, some folders may appear and which should be ignored by the user.
ATTENTION
In the case where the memory card is inserted after the CPU startup, an username and pass-
word will be requested to perform the MasterTool IEC XE access and/or file transfers to the
memory card or vice versa. The standard user with privileges to access the CPU is “Owner”
and the default password for that user is “Owner”.
In order to perform a file transfer from the microcomputer to the CPU just select the desired file in the left column and
press the “»” key located in the center of the screen, as shown in figure below. The download time will vary depending on file
size and cycle time (execution) of the current application of the CPU and may take several minutes.
The user does not need to be in Run Mode or connected to the CPU to perform the transfers, since it has the ability to
connect automatically when the user performs the transfer.

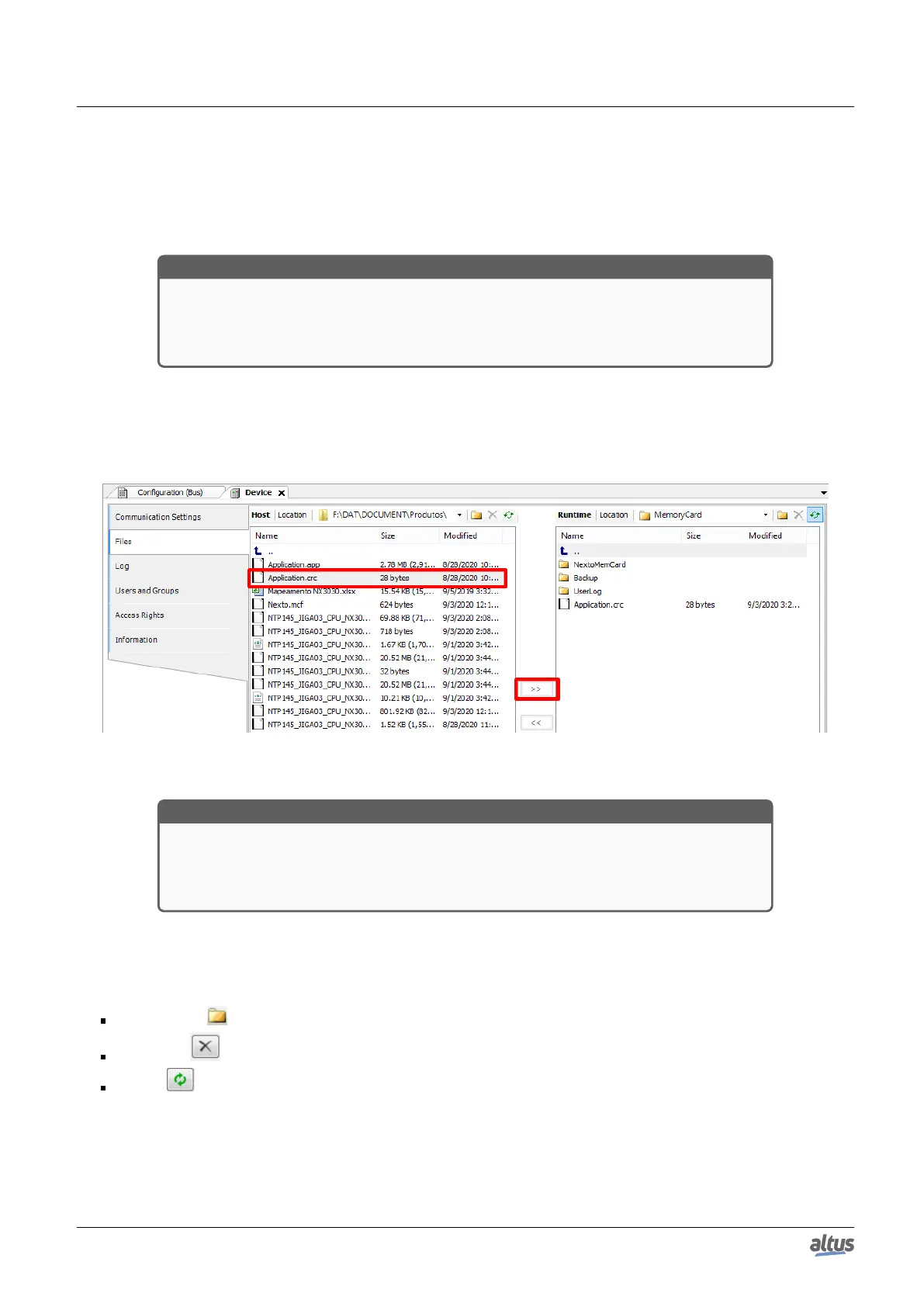

Figure 134: Files Transference
ATTENTION
The files contained in the folder of a project created by MasterTool IEC XE have special
names reserved by the system in this way cannot be transferred through the Files tab. If the
user wishes to transfer a project to the user memory, you must compact the folder and then
download the compressed file (*.zip for example).
In case it is necessary to transfer documents from the CPU to the PC in which the MasterTool IEC XE software is installed,
the user must follow a very similar procedure to the previously described, as the file must be selected from the right column
and the button “«” pressed, placed on the center of the screen.
Furthermore, the user has some operation options in the storing files area, which are the following:
New directory : allows the creation of a new folder in the user memory area.
Delete item : allows the files excluding in the folders in the user memory area.
Refresh : allows the file updating, on the MasterTool IEC XE screen, of the files in the user memory area and in the
computer.
