6. REDUNDANCY WITH NX3030 CPU

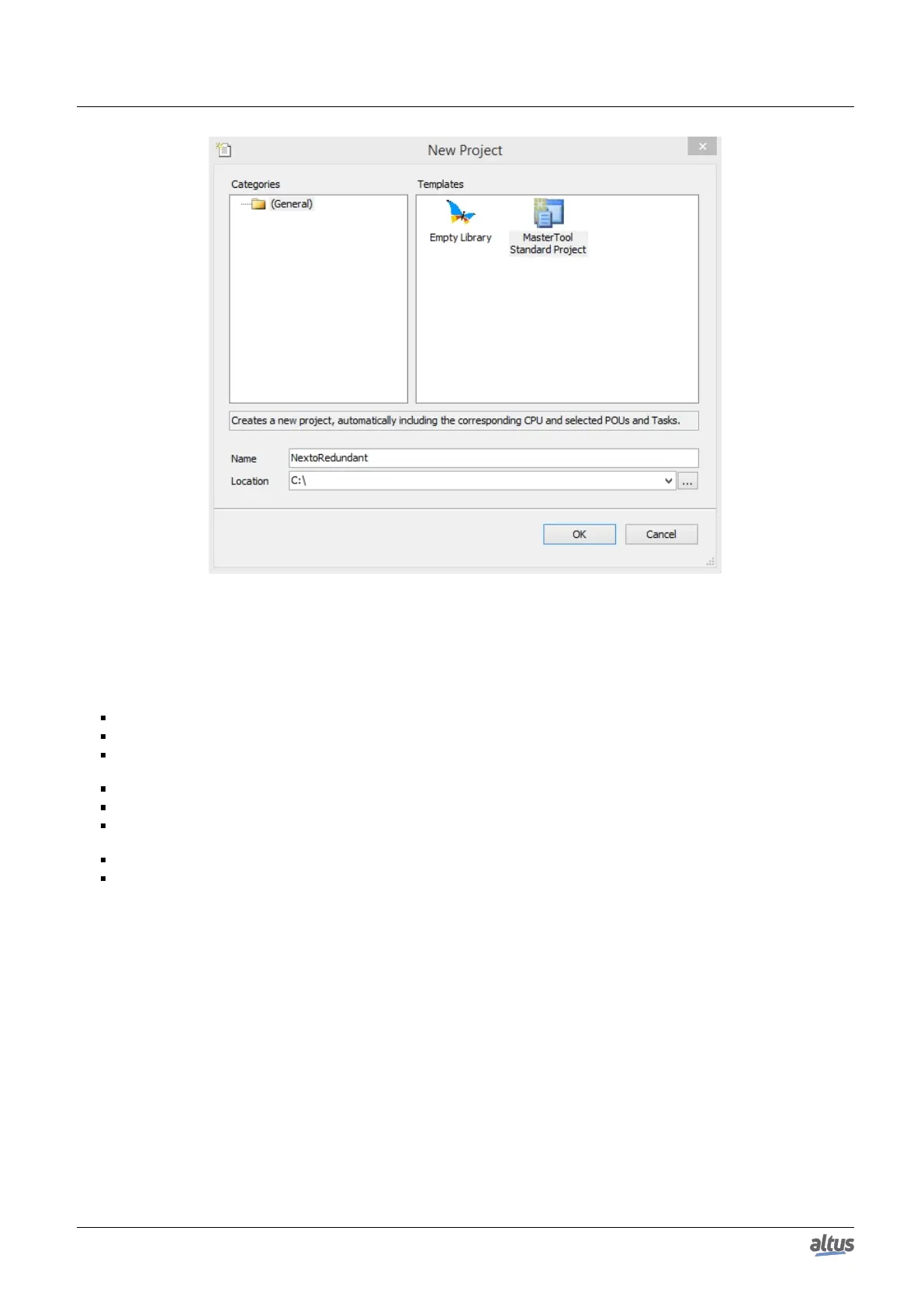

Figure 178: New Project

Next, the Wizard which generates the redundancy project run some questions for the user, regarding the desired conﬁgura-

tion that must be answered successively.

The ﬁrst point to be deﬁned is the initial conﬁguration for the half-cluster hardware:

Select device category: NX3030 can be selected in two categories All Devices or in Modular Controllers

Select the CPU model: As the redundancy is implemented only in NX3030, it must be selected by the user

Select the rack model: There are four rack available models and the choice depends on the module quantity used in the

redundancy. For MasterTool is important the rack size according to the conﬁgured networks quantity (next wizard item)

Select the power supply model

Select the redundancy conﬁguration. For a redundant project is needed to choose With Redundancy option

Select the operation mode of redundancy. In this case the options in operation are with or without redundancy panel

(PX2612)

Select if the OPC DA communication option will be enabled or not

Select if will be used bus expansion redundancy
