6. REDUNDANCY WITH NX3030 CPU

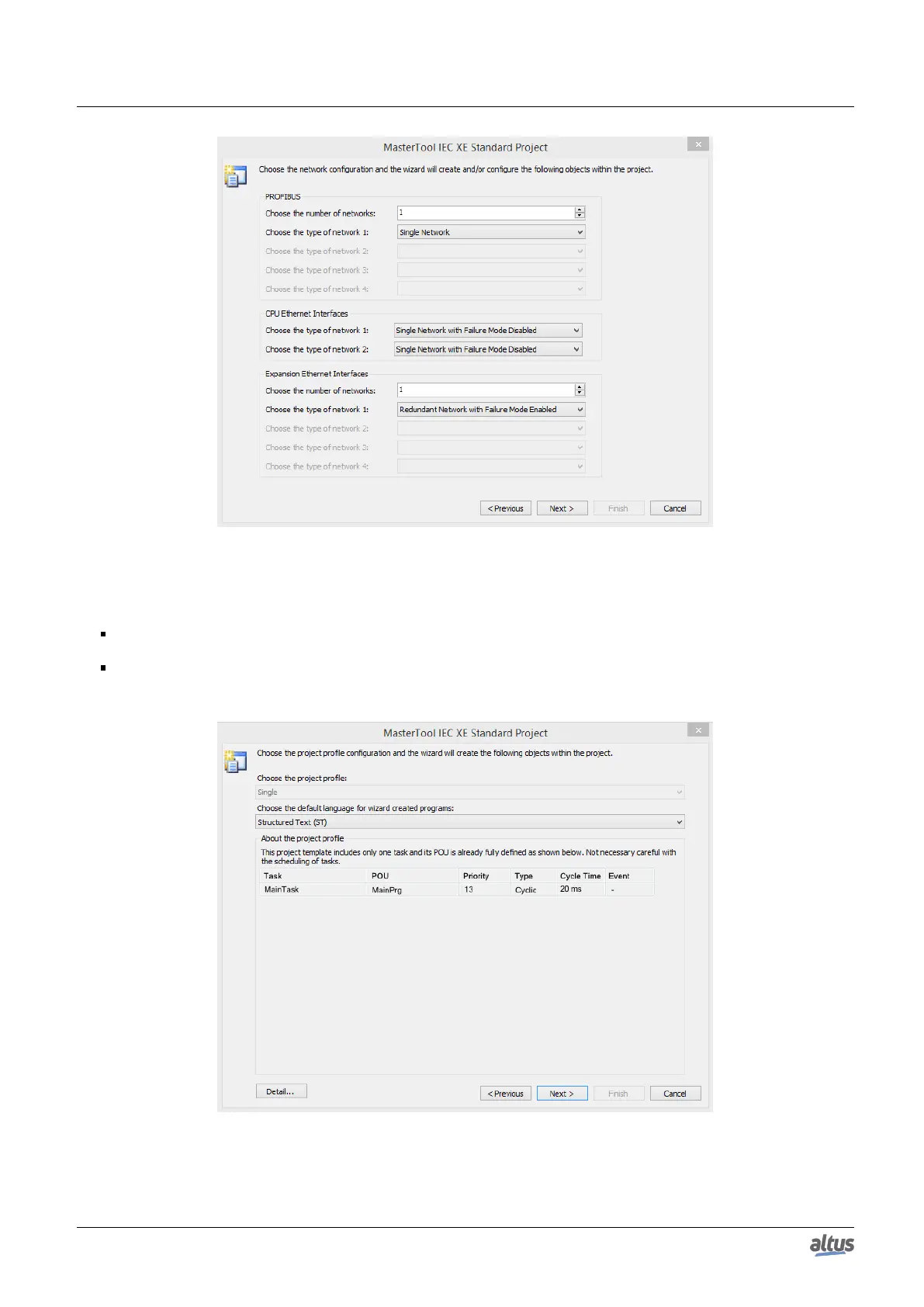

Figure 180: Communication Networks Configuration
Then the project profile and the standard language must be selected for the program creation:
Select the project profile: It’s only possible to use the Single project profile for the redundancy; hence the selection
option is disabled
Select the default language for all programs: The language selected by the user is the standard for all programs, but any
other can be used for a specific POU
Figure 181: Project Profile and Standard Language
To finish, the user must select the program language common and associated to the redundancy:
306
