6.2.2 Wall mounting

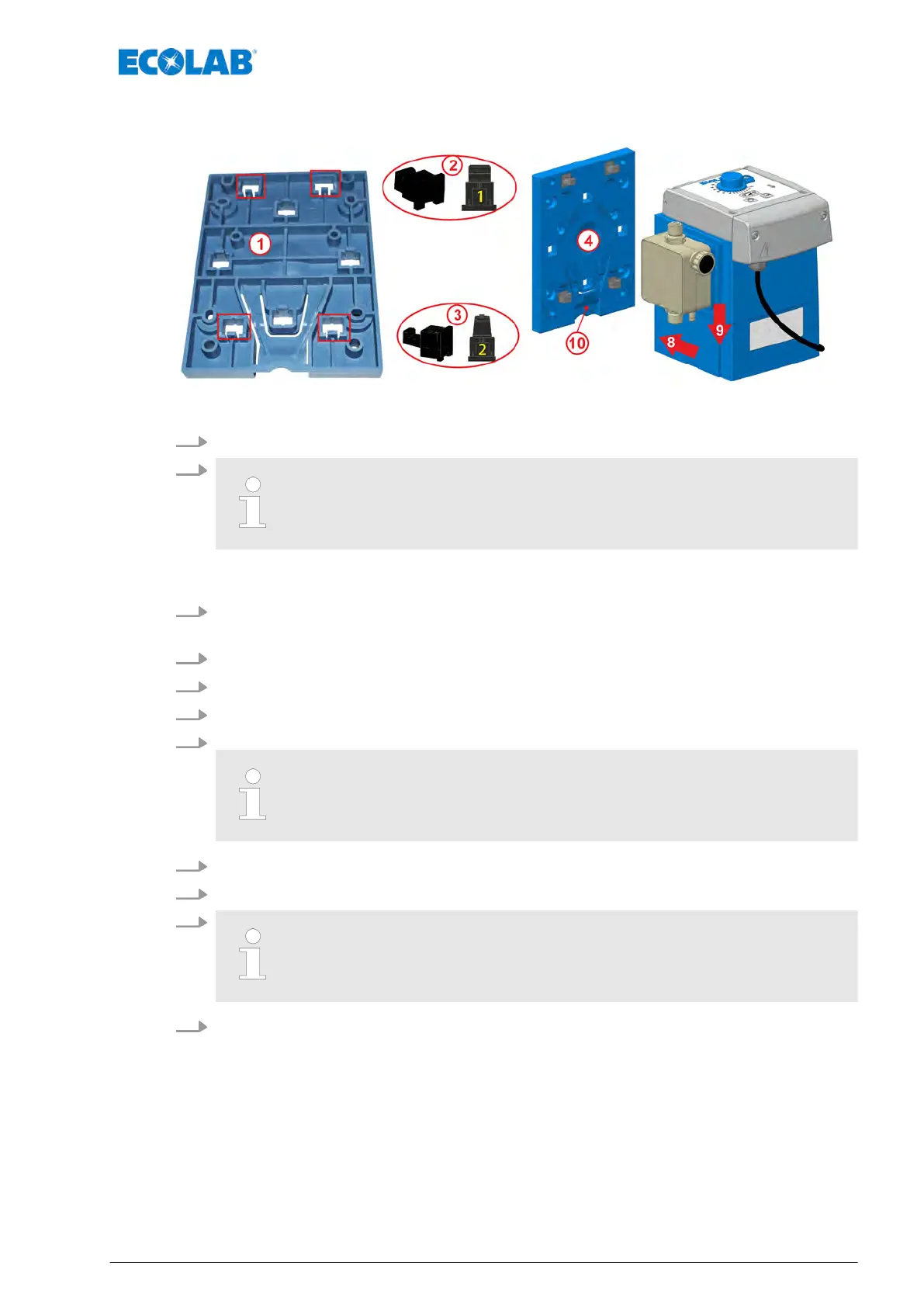

Fig. 9: Preparations for wall mounting
1. T
urn mounting plate over.
2.
Use fastening elements with the code 2
(Fig. 9, 3) and the code 1
(Fig. 9, 2) for wall mounting.
Insert fastening elements (labelled: 1, Fig. 9, 2) into the two upper openings marked
"wall"
(= wall mounting)from rear and secure them.
3. Insert fastening elements (labelled: 2, Fig. 9, 3 ) into the two lower openings marked
"wall" from rear and secure them.
4. T
urn mounting plate over again and hold it against required mounting position.
5. Using mounting plate as a template, mark required boreholes with a sharp pencil.
6. Make the holes.
7. Fasten mounting plate to wall securely
.
The hooks of the fastening elements must point upwards.
8. Place pump onto the hooks on mounting plate from above.
9. Slide pump downwards onto mounting plate until it engages with an audible click.
10.
To remove the pump from the mounting plate again, push down on the
retaining plate (10).
11. Attach the connecting lines (hydraulic and electric):
Ä
Chapter 6.3.1 ‘Hydraulic installation’ on page 34
Ä
Chapter 6.3.4 ‘Electrical Installation’ on page 42.
Assembly, installation, modification and upgrades
33 417102264 Rev. 5-01.2019
