9.3 Austausch von Saug- / Druckventil und Dosierpatrone

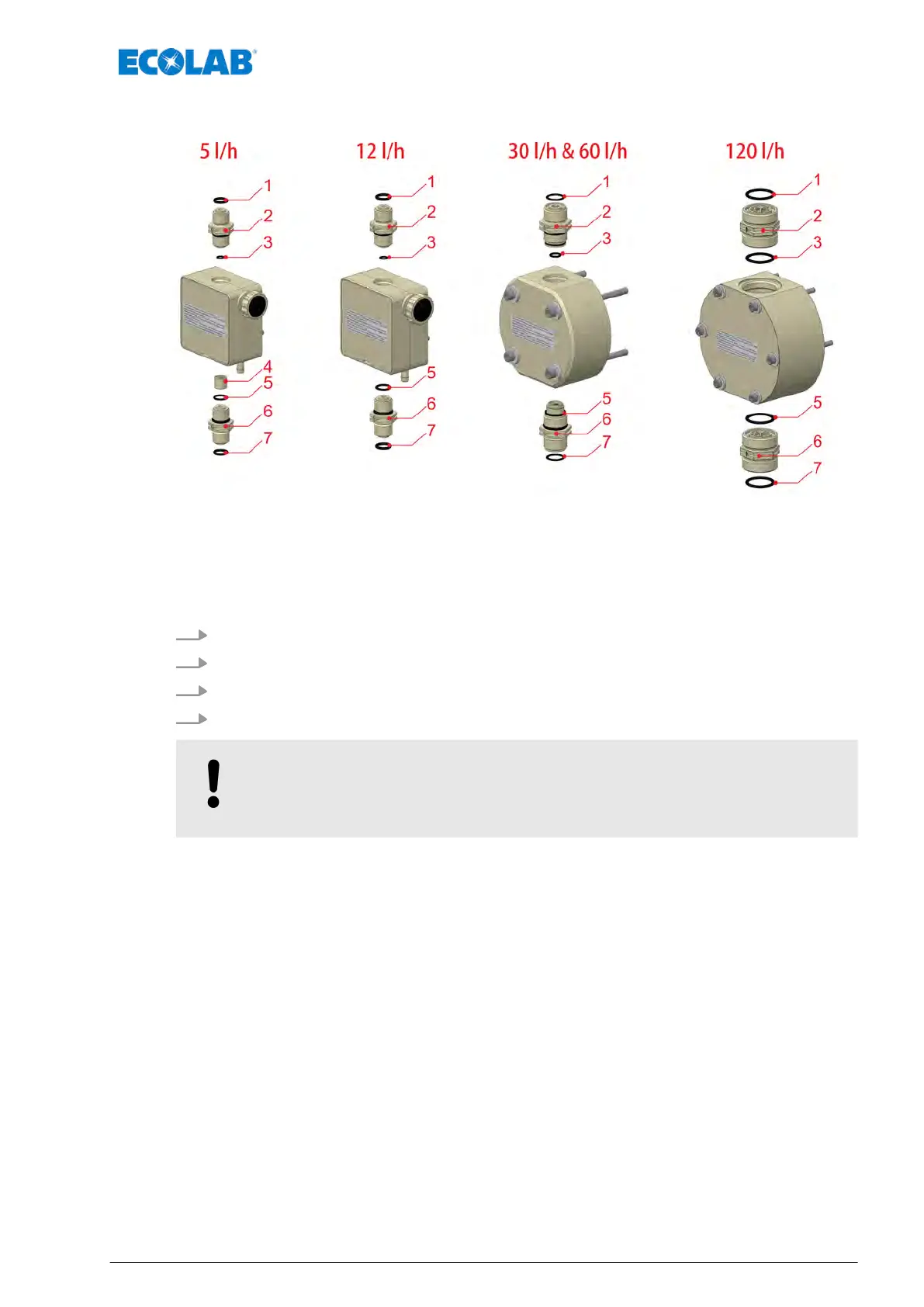

Abb. 20: Austausch von Saug- / Druckventil und Dosierpatrone
1 O-Ring-Schlauchanschluss Druckseite
2 Druckventil
3 O-Ring: Druckventil-Pumpenkopf
4 Dosierpatrone V3
5 O-Ring: Saugventil-Pumpenkopf
6 Saugventil
7 O-Ring-Schlauchanschluss Saugseite
1. Saug- und Druckventil mit Gabelschlüssel demontieren.
2. Alle O-Ringe montieren.
3. Dosierpatronen (bei Pumpenkopf mit 5 l/h) montieren
(Ventilausführung V3)
4. Neues Saug- und Druckventil lagerichtig einschrauben (Anzugsdrehmoment 2-3 Nm)
HINWEIS!
Anzugsdrehmomente der Saug- und Druckventile:
Siehe
Ä
Kapitel 9.4 „Dosierventile lagerichtig einbauen“ auf Seite 56
Wartung
55 417102264 Rev. 5-01.2019
