11.2.3 Upgrading - From ‘EcoPro’ to ‘EcoAdd’
The ‘EcoPro’ version of the pump can be converted or upgraded to the ‘EcoAdd’
version with an operating display and Bluetooth interface by replacing the control unit.

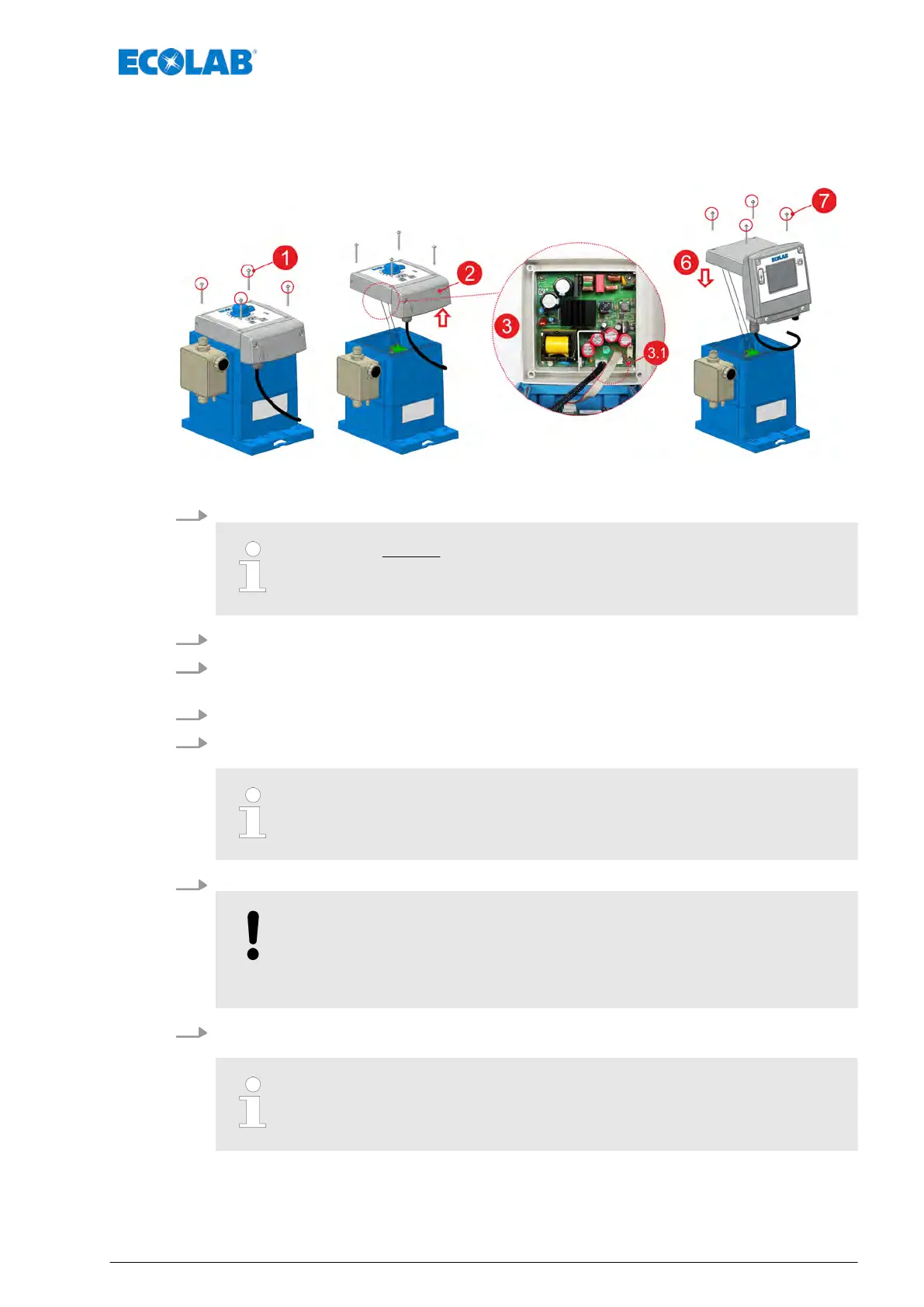

Fig. 32: / Upgrading the ‘EcoPro’ to the ‘EcoAdd version’
1. Undo the fastening screws on the control unit of the ‘EcoPro’.
The screws are not secured against falling out!
Ensure that the screws do not become lost during disassembly and do
not use any screws other than those originally provided.
2. Lift up the control unit of the ‘EcoPro’.
3. Disconnect both connectors (3.1) from the underside of the control unit of the
‘EcoPro’.
4. Remove the control part of the ‘EcoPro’.
5. Insert both connectors (3.1) into the appropriate receptacles on the underside of the
control unit of the ‘EcoAdd’.
The connectors are "coded" on-site and can thus only be inserted into the
sockets in the correct position.
6. Place the control unit of the ‘EcoAdd’ onto the pump housing.
NOTICE!
The pump housing contains a seal for the control unit.
When placing the control unit on the pump housing, ensure that the seal
is free from contamination.
7. T
ighten the fastening screws on the control unit (operating unit/upper part of the
pump).
The tightening torque for the fastening screws on the control unit is
approx. 1 Nm. T
o prevent damage to the thread, we recommend
tightening the screws by hand.
Repair, conversion, upgrade
71 417102264 Rev. 5-01.2019
