10.2.2.2 Replacement part module: Pump head 11 l/h

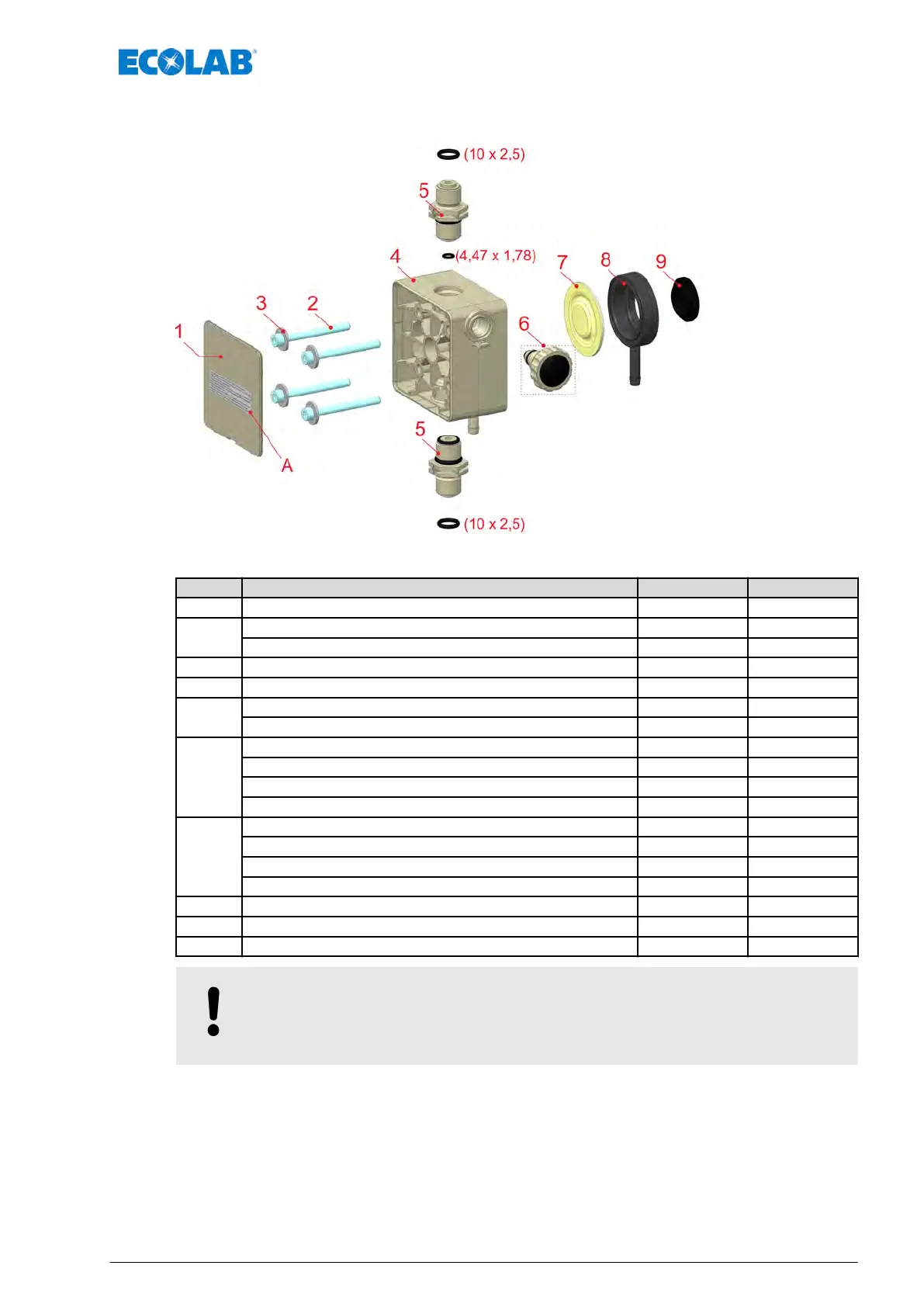

Fig. 27: Replacement part module: Pump head 11 l/h
Pos. Designation Article No. EBS No.
A Adhesive label for commissioning / tightening torque (4 Nm) 34800327 On request
1
Cover plate PP pebble grey 35200180 On request
Cover plate PVDF natural 35200181 On request
2 Hexagon socket screw, M 5 x 50, DIN 912, V2A, 413031127 On request
3 Washer, 5.3 x 15 1.6, DIN 9021, V2A 413501720 On request
4
Pump head, 11 l/h, PP 35200112 On request
Pump head, 11 l/h, PVDF 35200113 On request
5
Suction/pressure valve, PFC-000 G3/8-G3/8-99 252010 On request
Suction/pressure valve, PEC-000 G3/8-G3/8-99 252011 On request
Suction/pressure valve, DFC-000 G3/8-G3/8-99 252012 On request
Suction/pressure valve, DEC-000 G3/8-G3/8-99 252013 On request
6
Vent screw PP/EPDM 252034 On request
Vent screw PP/FKM 252035 On request
Vent screw PV/EPDM 252036 On request
Vent screw PV/FKM 252037 On request
7 Diaphragm 35200114 On request
8 Intermediate plate 35200115 On request
9 Protective diaphragms 35200137 On request
NOTICE!
During assembly
, it is essential to observe the tightening torque attached to the
pump head! See also
Ä
Chapter 13.6 ‘Tightening torques’ on page 78
Consumables and spare parts
65 417102264 Rev. 5-01.2019
