11.2.2 Modification - change from stand mounting to wall mounting
To allow the pump to be adjusted to the site conditions, you can use the pump
in either stand-mounted or wall-mounted form.

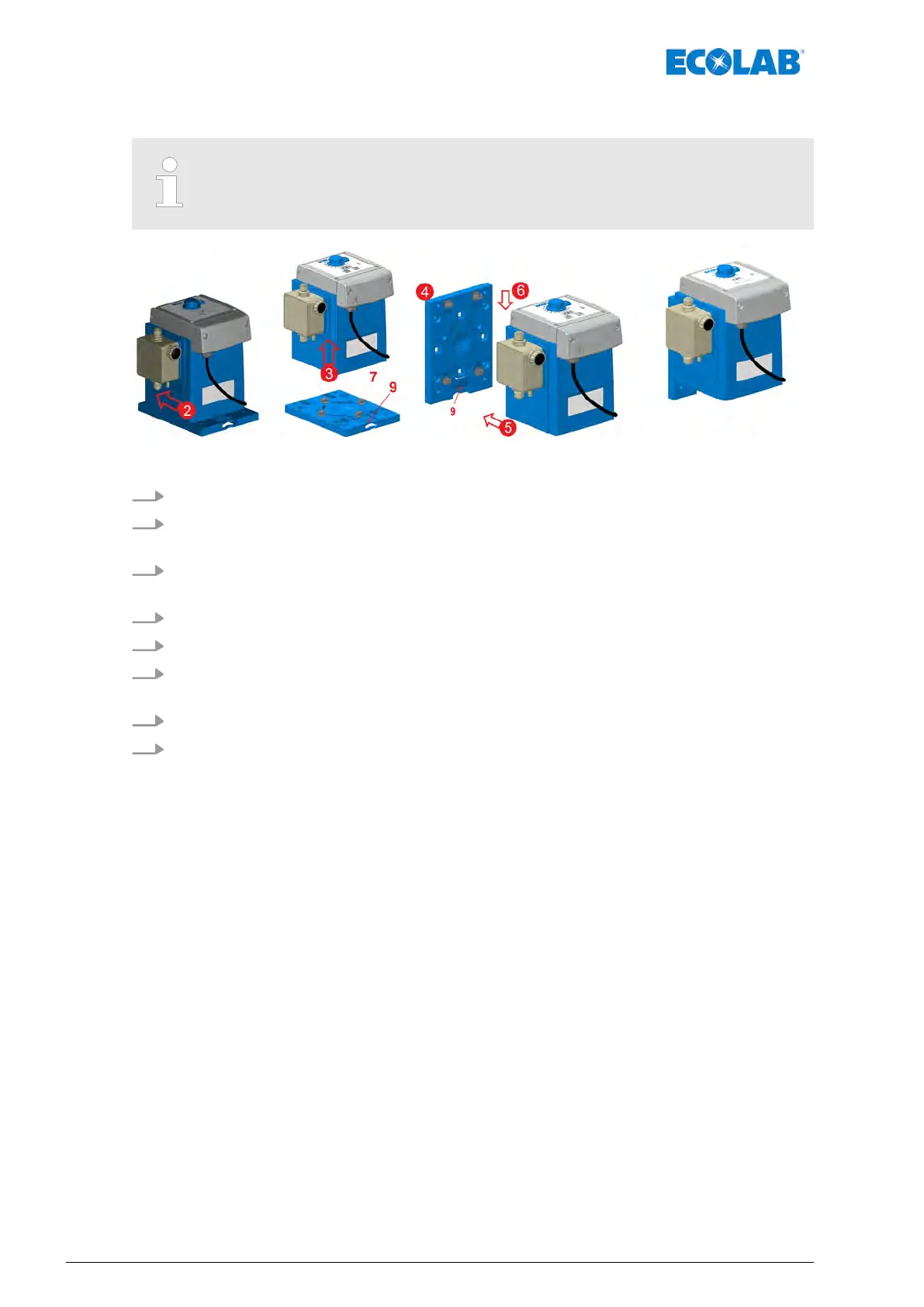

Fig. 31: Changing stand mounting (upright, e.g., floor, bracket or canister) for wall mounting (suspended)
1. If necessary
, dismantle the connecting lines (hydraulic and electric).
2. Press the retaining plate of the mounting plate down to release the locking
mechanism of the pump.
3. Slide the pump along the mounting plate until the fastening elements disconnect
from the pump base.
4. Remove the pump from the mounting plate by lifting upwards.
5. Fit the mounting plate on the wall.
6. Place the pump on the mounting plate from above so that the fastening elements on
the mounting place engage in the recesses on the side of the pump.
7. Push the pump downwards onto the fastening elements until they audibly engage.
8. Attach the connecting lines (hydraulic and electric):
Ä Chapter 6.3.1 ‘Hydraulic installation’ on page 34
Ä Chapter 6.3.4 ‘Electrical Installation’ on page 42.
