6.3.3.4 Rohranschluss mit Aufschweissverbindung

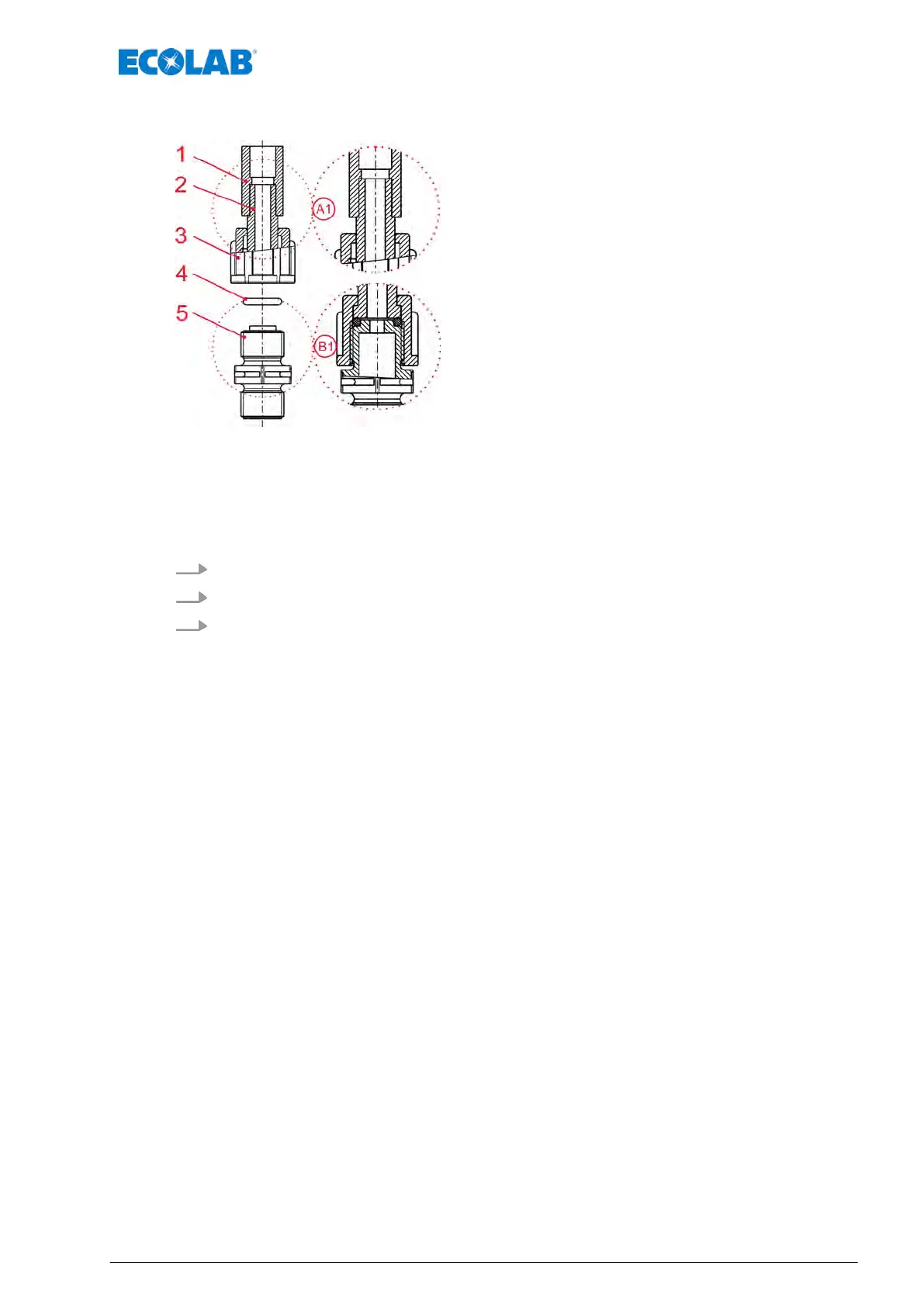

Abb. 13: Rohr- und Schlauchanschluss mit Aufschraubverschraubung
1 Aufschweißverbindung
2 Rohr- oder Schlauch
3 Überwurfmutter
4 O-Ring
5 Saug-, Druckventil
A1 Rohr bzw. Schlauch in der Aufschweißverbindung
B1 Ventilanschluss: Sollzustand nach Zusammenbau
1. O-Ring (Pos. 4) in Nut von Saug-, bzw
. Druckventil (Pos. 5) legen.
2. Überwurfmutter (Pos. 3) festziehen (Detail B1).
3. Aufschweißverbindung (Pos. 1) mit ortsseitigem Schlauchanschluss verschweißen.
Montage, Installation, Umbau und Aufrüstung
41 417102264 Rev. 5-01.2019
