8 Operation
Personnel:
n
Production supervisor
n
Operator
n
Specialist
8.1 Switching the pump on and off

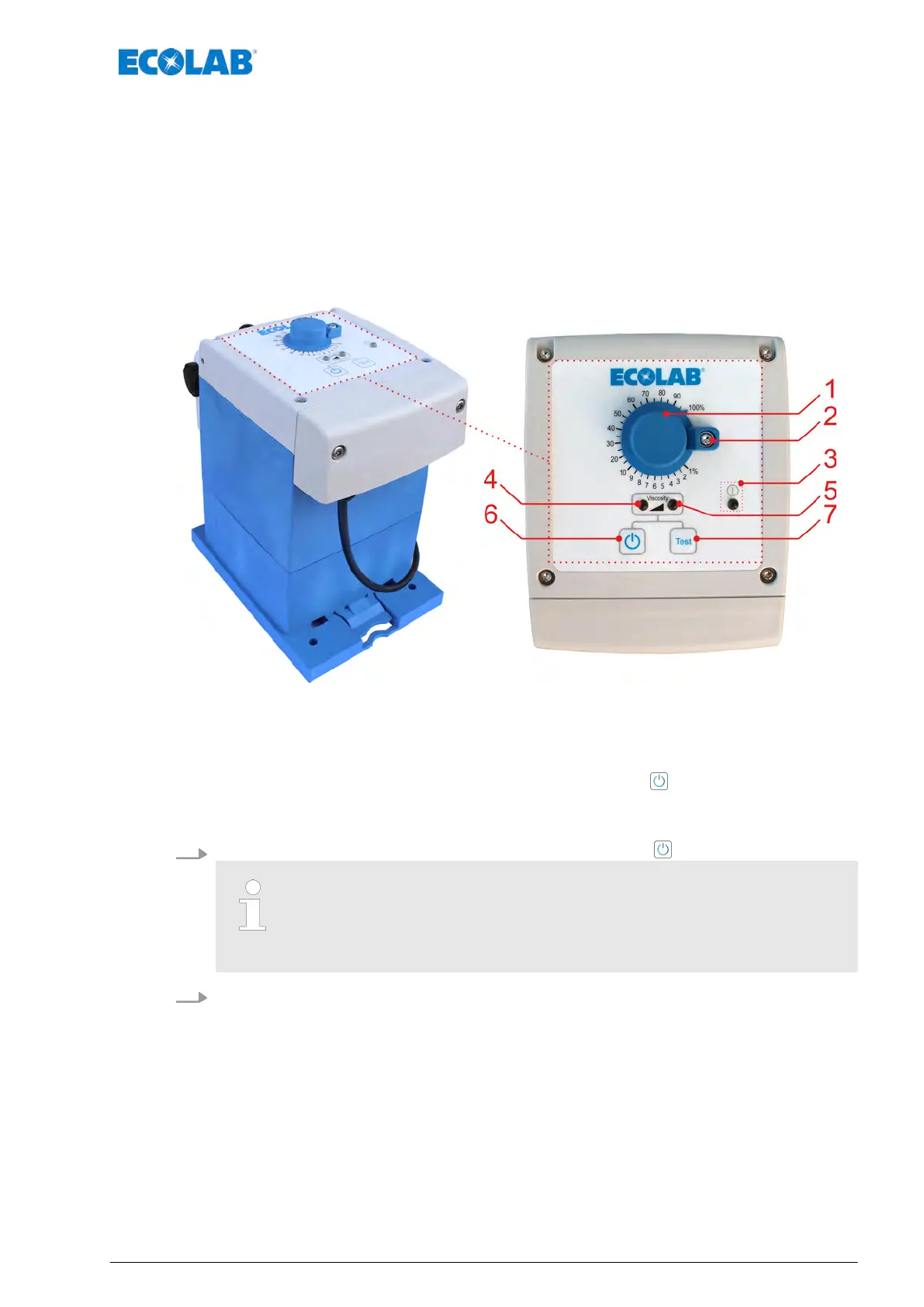

Fig. 18: Switching the EcoPro on/off ‘’
1 Rotary button for stroke adjustment
2 Locking mechanism for fixing the rotary button in place
3 LED - Alarm signal, colour: red flashing
4 LED - Dosing mode "low", colour: yellow
LED - When the pump is started: green (standby)
5 LED - Dosing mode "high", colour: flashing yellow
6
‘ON/OFF button’
7 Test button
8 Cable bushing for the mains connection cable
1.
The pump is switched on and of
f via the ‘ON/OFF button’
(Fig. 18, 6).
Depending on the selected viscosity, either the left or the right LED
flashes yellow (left = low viscosity
, right = high viscosity).
In ‘stand-by’ the relevant LED is lit green, depending on the viscosity
level.
2. After the pump is switched on, the viscosity level can be selected:
Ä
Chapter 8.3 ‘Setting / changeover of the viscosity’ on page 50
