6.3.4.1 Terminal assignment - External enable signal
The terminals are accessible after dismantling the front cover, (see
Ä
Chapter
6.3.4 ‘Electrical Installation’ on page 42, Fig. 14, 2).
In accordance with the terminal assignment given below, modifications can be made to
control inputs at the customer's site.
NOTICE!
All changes to the terminal assignment are only approved by skilled personnel.
In the event of queries and requests for help, please contact our customer
service department.

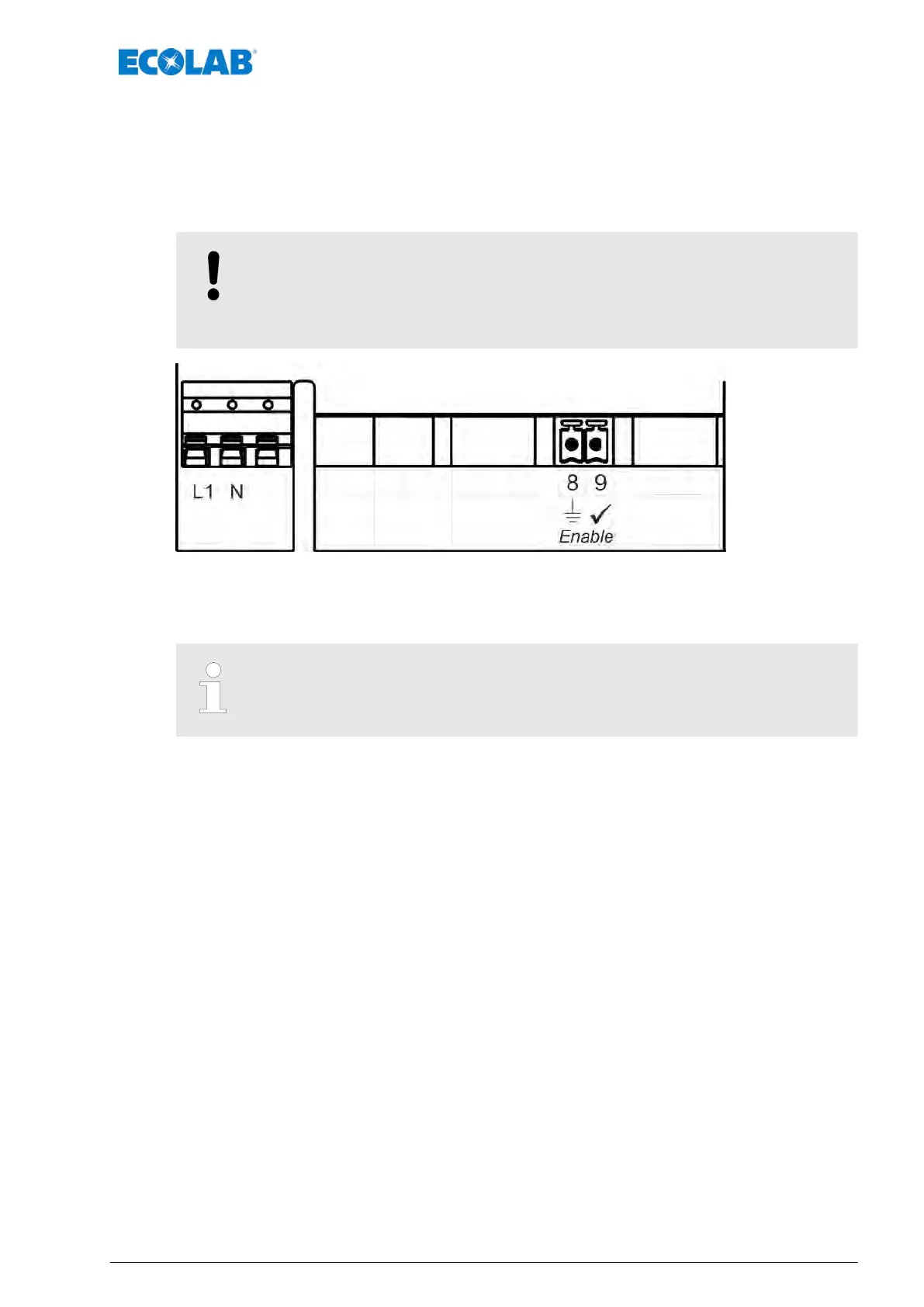

Fig. 15: EcoPro terminal assignment ‘’
L1 Mains phase (live conductor)
N Neutral (earth)
8 Enable signal, earth (GND)
9 Enable signal, signal input
Permissible external diameters for connecting the inputs/outputs:
AD Ø = 5.1-5.7 mm (pos. 2-5).
Permissible cable: LIYY 4x0.5; LIYY 5x0.34; L
YCY 2x0.34; Oilflex 4x0.5
Assembly, installation, modification and upgrades
43 417102264 Rev. 5-01.2019
