10.2.2.4 Replacement part module: Pump head 120 l/h

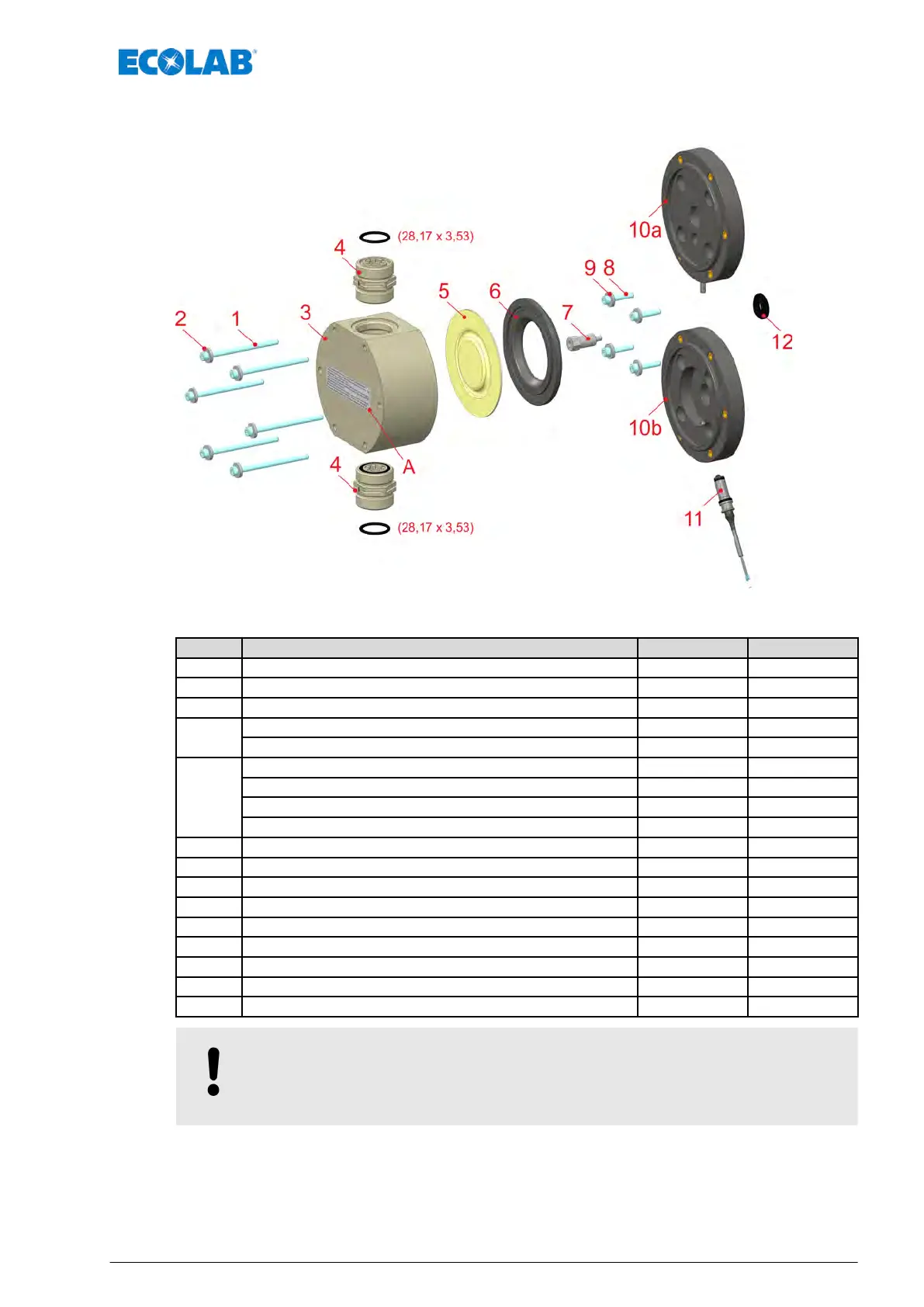

Fig. 29: Replacement part module: Pump head 120 l/h
Pos. Designation Article No. EBS No.
A Adhesive label for commissioning / tightening torque (6 Nm) 34900291 On request
1 Hexagon socket screw, M 6 x 90, DIN 912, V2A 413031148 On request
2 Washer, 17 x 6.4 x 3 DIN 7349 V2A 413501304 On request
3
Pump head, 120 l/h, PP 35200142 On request
Pump head, 120 l/h, PVDF 35200143 On request
4
Suction/pressure valve, PFC-000 G1¼-G1¼-99 249075 On request
Suction/pressure valve, PEC-000 G1¼-G1¼-99 249055 On request
Suction/pressure valve, DFC-000 G1¼-G1¼-99 252028 On request
Suction/pressure valve, DEC-000 G1¼-G1¼-99 252029 On request
5 Diaphragm 35200144 On request
6 Intermediate plate 35200147 On request
7 Diaphragm extension, 120 l/h 35200148 On request
8 Hexagon socket screw, M 6 x 30, DIN 912, V2A, ANTI 413031140 On request
9 Washer, 17 x 6.4 x 3 DIN 7349 V2A 413501304 On request
10a Adapter plate 35200145 On request
10b Adapter plate for diaphragm rupture sensor 35200146 On request
11 Diaphragm rupture sensor, complete 252081 On request
12 Protective diaphragms 35200137 On request
NOTICE!
During assembly
, it is essential to observe the tightening torque attached to the
pump head! See also
Ä
Chapter 13.6 ‘Tightening torques’ on page 78
Consumables and spare parts
67 417102264 Rev. 5-01.2019
