6.3.3.3 Pipe and hose connection with attachment nipple and hose clamp

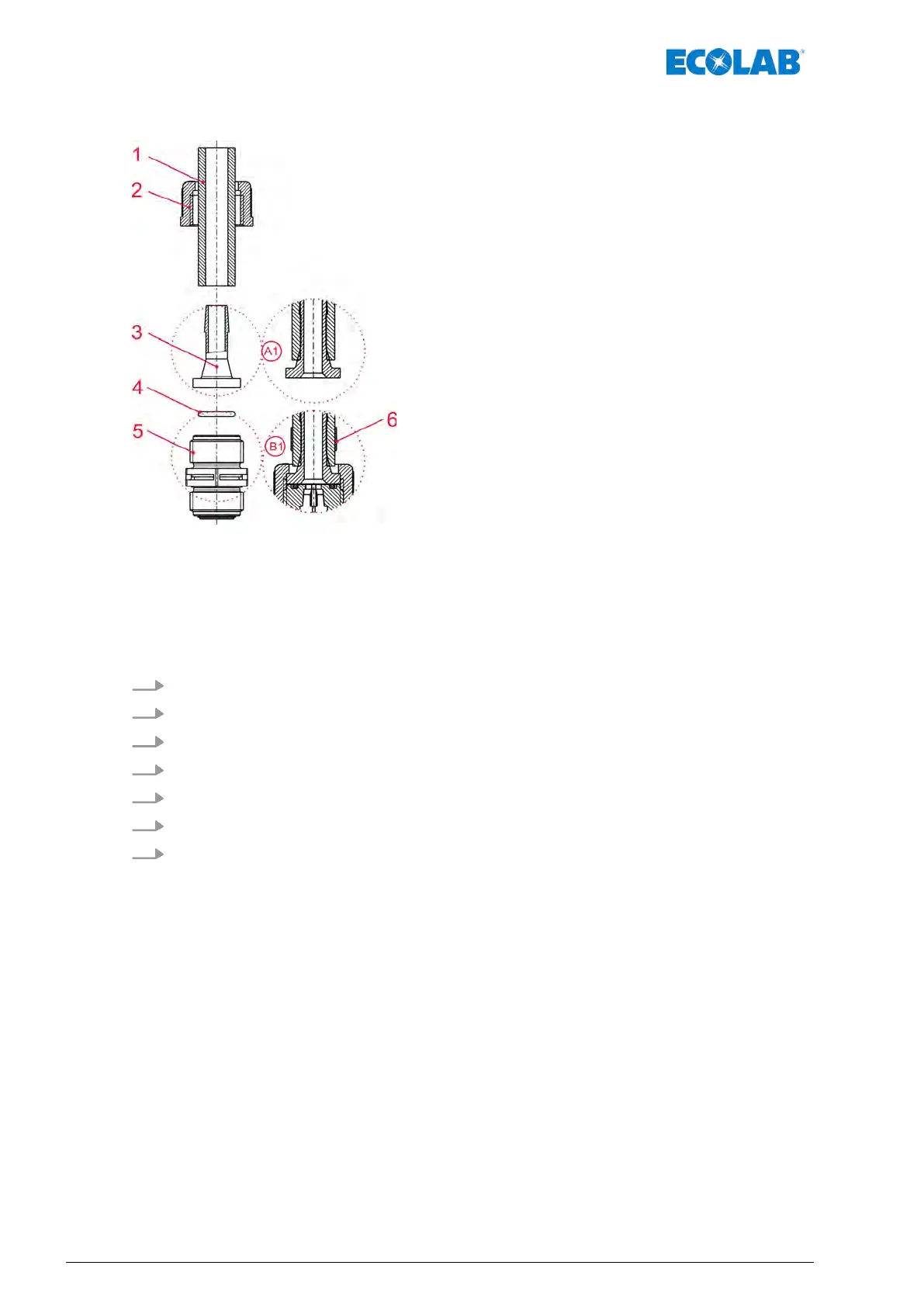

Fig. 12: Pipe and hose connection with attachment nipple and hose clamp
A Detail/Section: Illustration of individual part
1 Hose
2 Union nut
3 Tapered part
4 O-ring
5 Suction valve, pressure valve
6 Hose clamp
A1 Pipe or hose attached
B1 Valve connection: Target state after assembly
1. Cut hose (1) straight.
2. Push the union nut (2) and clamp it over the hose (1).
3. Push the hose clamp (6) over the hose (1).
4. Push the hose (1) onto tapered part (3) up to the stop collar (detail A1).
5. Place the O-ring (4) in the groove of the suction or pressure valve (5).
6. T
ighten the union nut (2) (detail B1).
7. Push the hose clamp (6) downward and tighten (detail B1).
Assembly, installation, modification and upgrades
40417102264 Rev. 5-01.2019
