Mirroring” on page 173), the target port cannot be set to the same target ports
as that used for port mirroring by this command.
◆ When traffic matches the rules for both port mirroring, and for mirroring of
VLAN traffic or packets based on a MAC address, the matching packets will not
be sent to target port specified for port mirroring.
◆ Note that Spanning Tree BPDU packets are not mirrored to the target port.
◆ The destination port cannot be a trunk or trunk member port.
Parameters
These parameters are displayed:
◆ Source Port – The port whose traffic will be monitored.
(Range: 1-12/28)
◆ Target Port – The port that will mirror the traffic on the source port.
(Range: 1-12/28)
◆ Type – Allows you to select which traffic to mirror to the target port, Rx
(receive), Tx (transmit), or Both. (Default: Both)
Web Interface
To configure a local mirror session:
1. Click Interface, Port, Mirror.
2. Select Add from the Action List.
3. Specify the source port.
4. Specify the monitor port.
5. Specify the traffic type to be mirrored.
6. Click Apply.

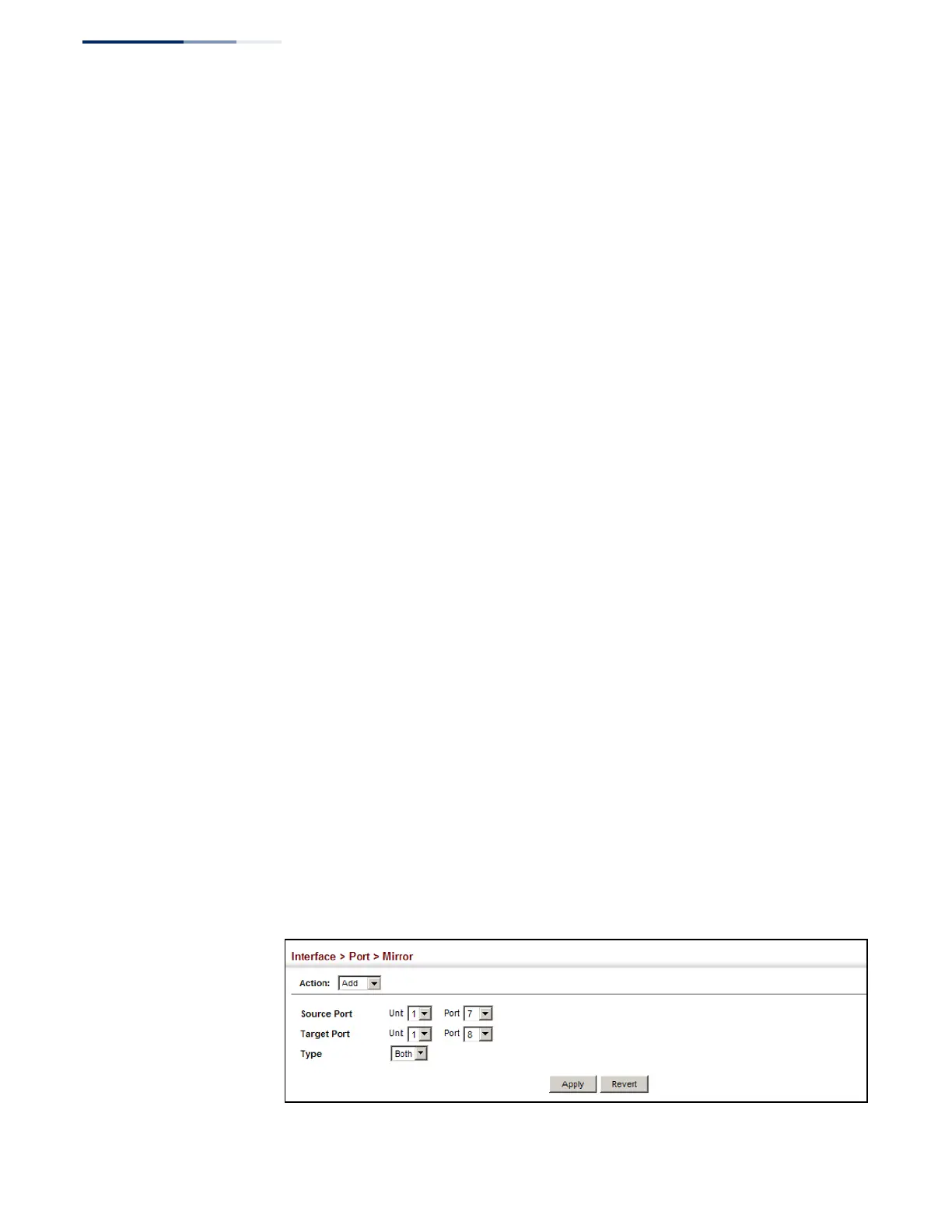

Figure 33: Configuring Local Port Mirroring
