Chapter 13
| Basic Administration Protocols
Remote Monitoring
– 411 –
Web Interface
To show SNMP statistics:
1. Click Administration, SNMP.
2. Select Show Statistics from the Step list.

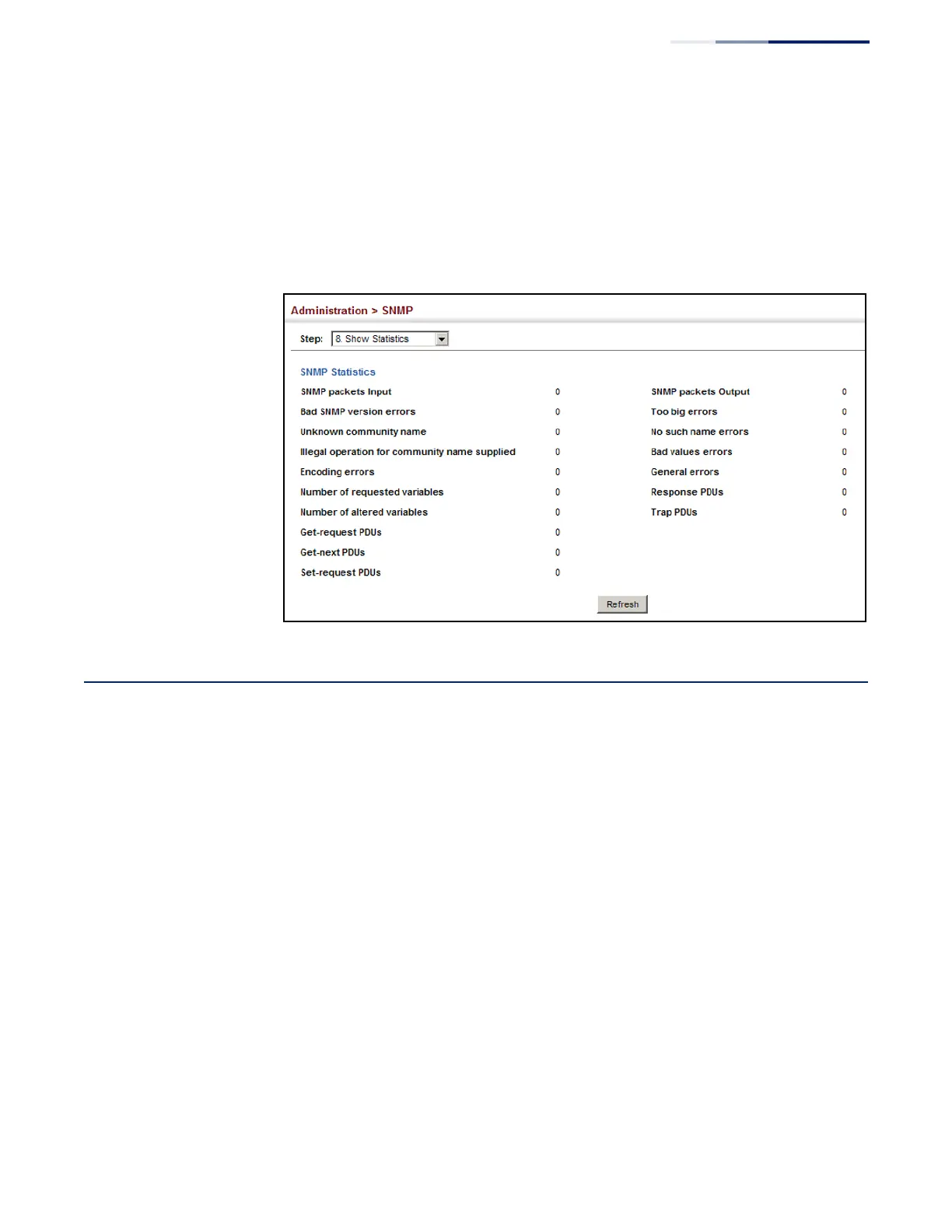

Figure 265: Showing SNMP Statistics
Remote Monitoring
Remote Monitoring allows a remote device to collect information or respond to
specified events on an independent basis. This switch is an RMON-capable device
which can independently perform a wide range of tasks, significantly reducing
network management traffic. It can continuously run diagnostics and log
information on network performance. If an event is triggered, it can automatically
notify the network administrator of a failure and provide historical information
about the event. If it cannot connect to the management agent, it will continue to
perform any specified tasks and pass data back to the management station the
next time it is contacted.
The switch supports mini-RMON, which consists of the Statistics, History, Event and
Alarm groups. When RMON is enabled, the system gradually builds up information
about its physical interfaces, storing this information in the relevant RMON
database group. A management agent then periodically communicates with the
switch using the SNMP protocol. However, if the switch encounters a critical event,
it can automatically send a trap message to the management agent which can then
respond to the event if so configured.
