Edge-Core ECS4210-12P Web Management Guide

Chapter 7 | Spanning Tree Algorithm
Configuring Interface Settings for MSTP
– 202 –

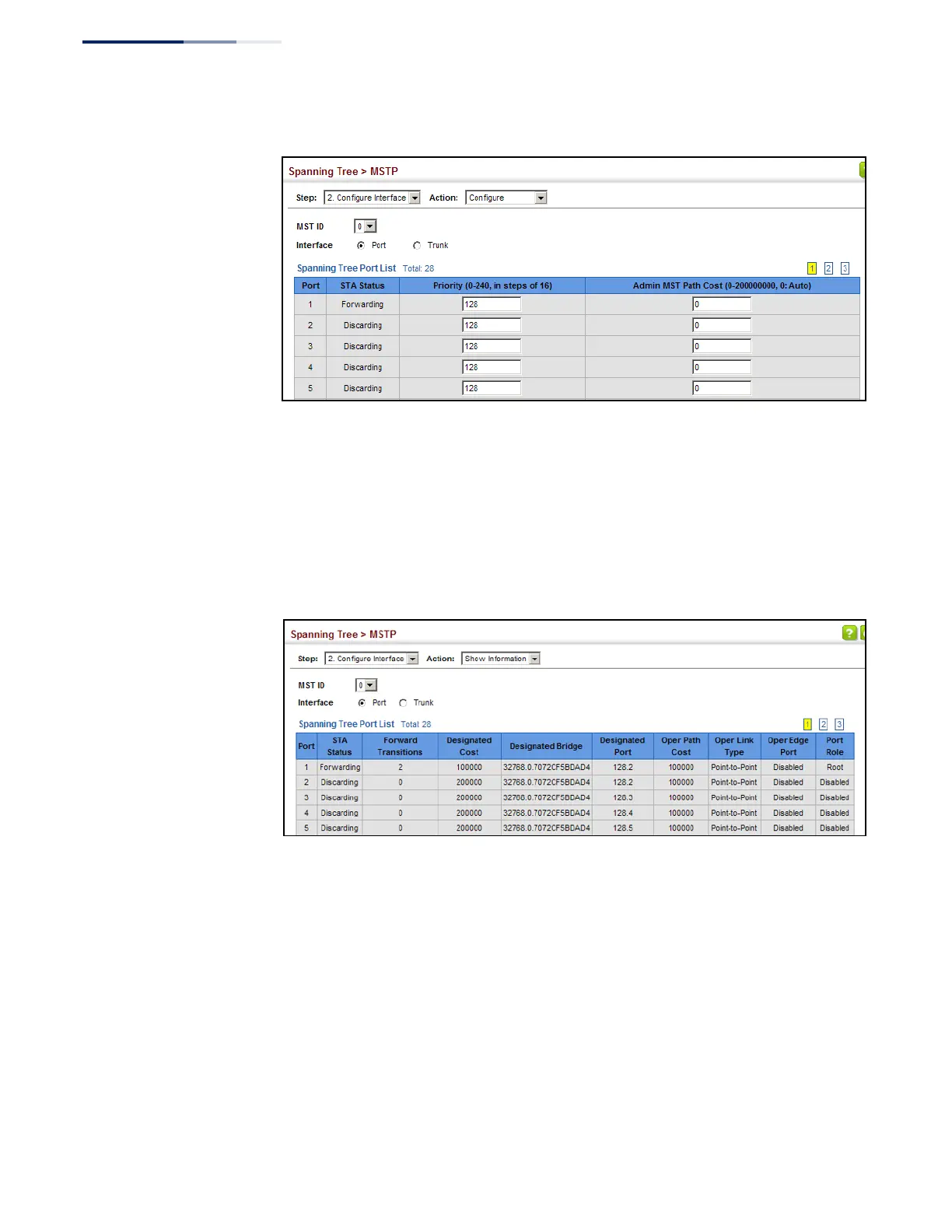

Figure 120: Configuring MSTP Interface Settings
To display MSTP parameters for a port or trunk:
1. Click Spanning Tree, MSTP.
2. Select Configure Interface from the Step list.
3. Select Show Information from the Action list.
Figure 121: Displaying MSTP Interface Settings
