Chapter 13
| Basic Administration Protocols
Configuring Event Logging
– 357 –
Web Interface
To configure the logging of error messages to system memory:
1. Click Administration, Log, System.
2. Select Configure Global from the Step list.
3. Enable or disable system logging, set the level of event messages to be logged
to flash memory and RAM.
4. Click Apply.

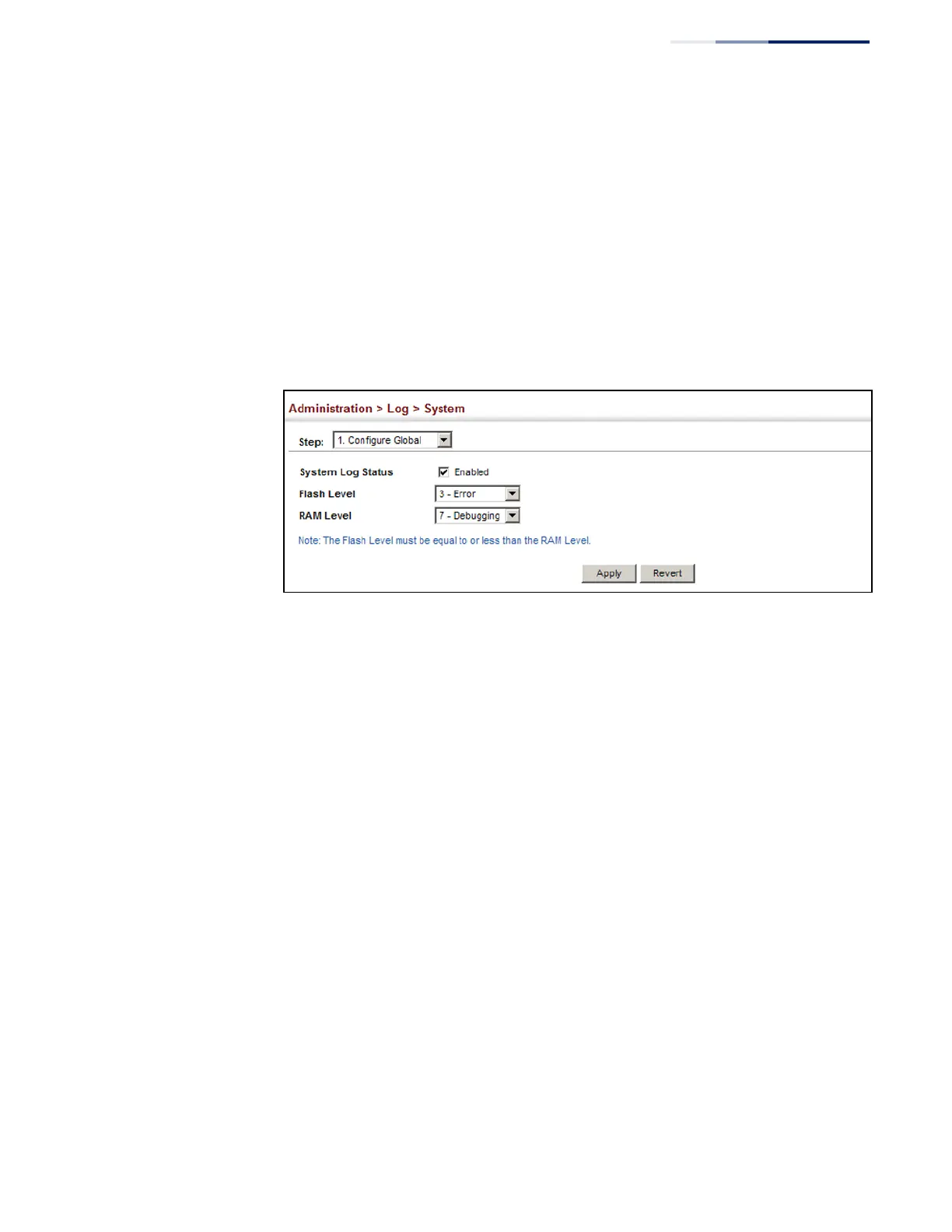

Figure 226: Configuring Settings for System Memory Logs
To show the error messages logged to system or flash memory:
1. Click Administration, Log, System.
2. Select Show Logs from the Step list.
3. Click RAM to display log messages stored in system memory, or Flash to display
messages stored in flash memory.
This page allows you to scroll through the logged system and event messages.
The switch can store up to 2048 log entries in temporary random access
memory (RAM; i.e., memory flushed on power reset) and up to 4096 entries in
permanent flash memory.
