Chapter 6
| Address Table Settings
Clearing the Dynamic Address Table
– 172 –
5. Click Query.

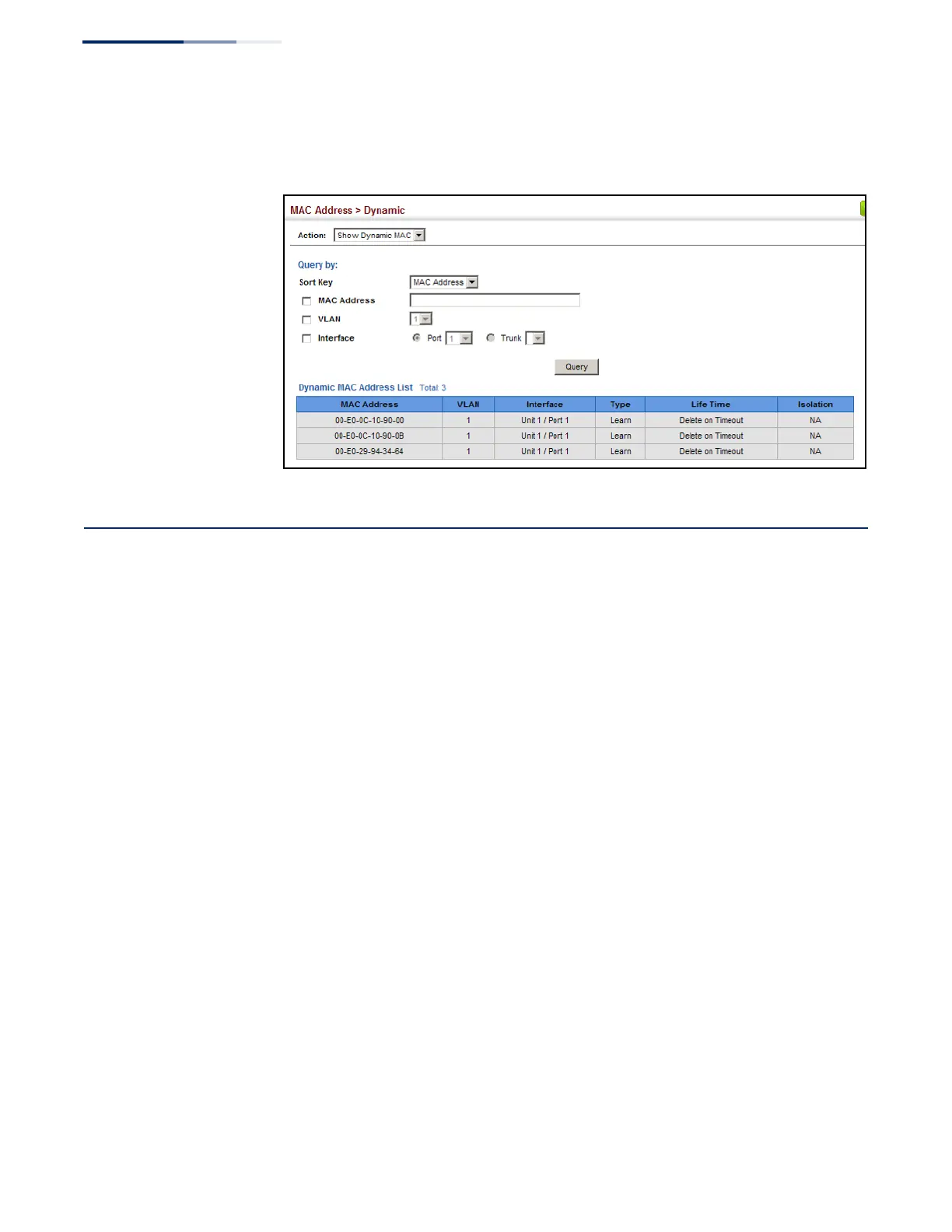

Figure 97: Displaying the Dynamic MAC Address Table
Clearing the Dynamic Address Table
Use the MAC Address > Dynamic (Clear Dynamic MAC) page to remove any learned
entries from the forwarding database.
Parameters
These parameters are displayed:
◆ Clear by – All entries can be cleared; or you can clear the entries for a specific
MAC address, all the entries in a VLAN, or all the entries associated with a port
or trunk.
Web Interface
To clear the entries in the dynamic address table:
1. Click MAC Address, Dynamic.
2. Select Clear Dynamic MAC from the Action list.
3. Select the method by which to clear the entries (i.e., All, MAC Address, VLAN, or
Interface).
4. Enter information in the additional fields required for clearing entries by MAC
Address, VLAN, or Interface.
5. Click Clear.
