Edge-Core ECS4210-12P - Figure 271: Showing Configured RMON History Samples; Figure 272: Showing Collected RMON History Samples

Chapter 13 | Basic Administration Protocols
Remote Monitoring
– 418 –
To show configured RMON history samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
4. Select a port from the list.
5. Click History.

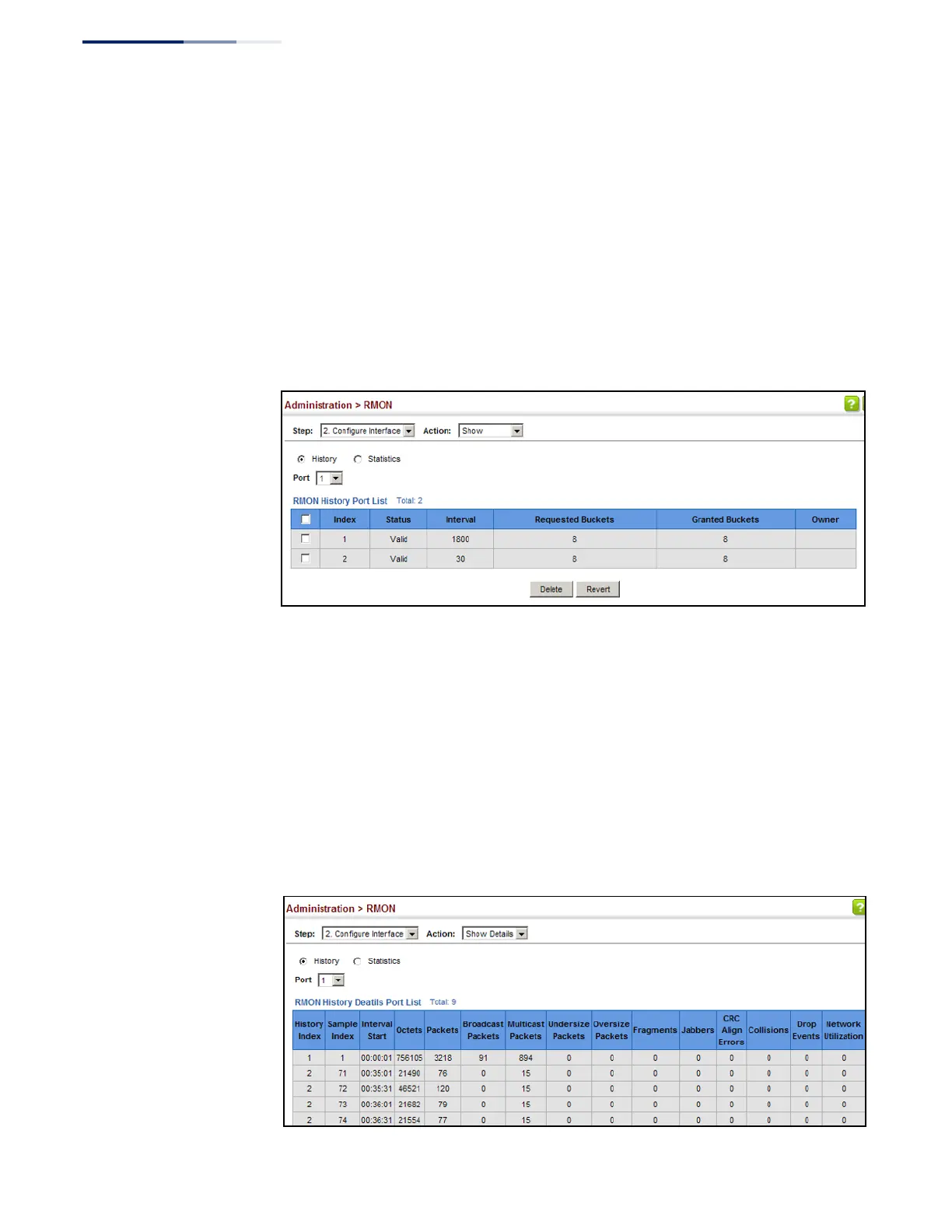

Figure 271: Showing Configured RMON History Samples
To show collected RMON history samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show Details from the Action list.
4. Select a port from the list.
5. Click History.
Figure 272: Showing Collected RMON History Samples
