Chapter 12 | Security Measures
IP Source Guard
– 345 –
◆ VLAN – ID of a configured VLAN (Range: 1-4094)
◆ MAC Address – A valid unicast MAC address.
◆ IP Address – A valid unicast IP address, including classful types A, B or C.
Dynamic Binding List
◆ VLAN – VLAN to which this entry is bound.
◆ MAC Address – Physical address associated with the entry.
◆ Interface – Port to which this entry is bound.
◆ IP Address – IP address corresponding to the client.
◆ Lease Time – The time for which this IP address is leased to the client.
Web Interface
To display the binding table for IP Source Guard:
1. Click Security, IP Source Guard, Dynamic Binding.
2. Mark the search criteria, and enter the required values.
3. Click Query

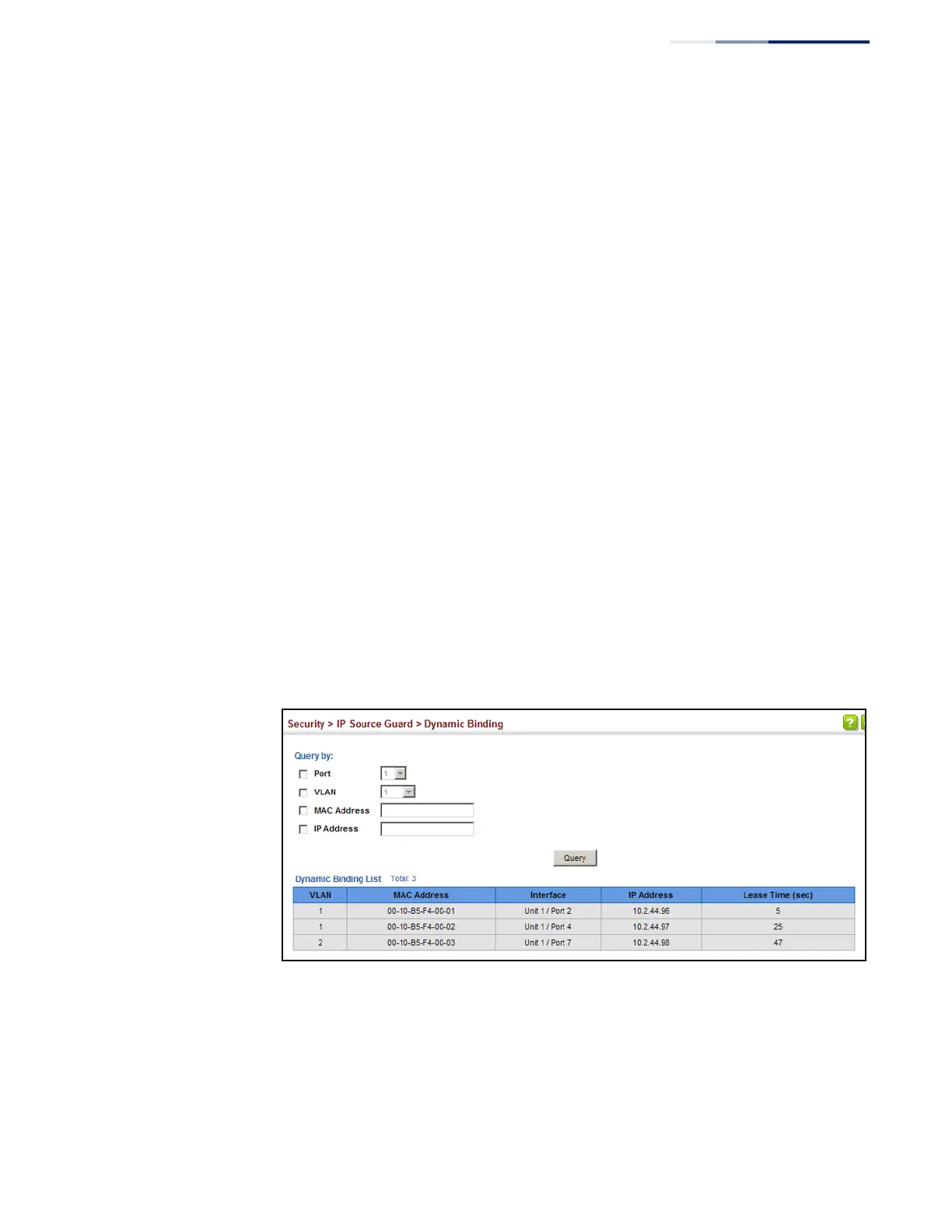

Figure 221: Showing the IP Source Guard Binding Table
