Chapter 4
| Interface Configuration
Port Configuration
– 97 –
◆ Speed/Duplex – Allows you to manually set the port speed and duplex mode.
(i.e., with auto-negotiation disabled)
◆ Flow Control – Allows automatic or manual selection of flow control.
Web Interface
To configure port connection parameters:
1. Click Interface, Port, General.
2. Select Configure by Port List from the Action List.
3. Modify the required interface settings.
4. Click Apply.

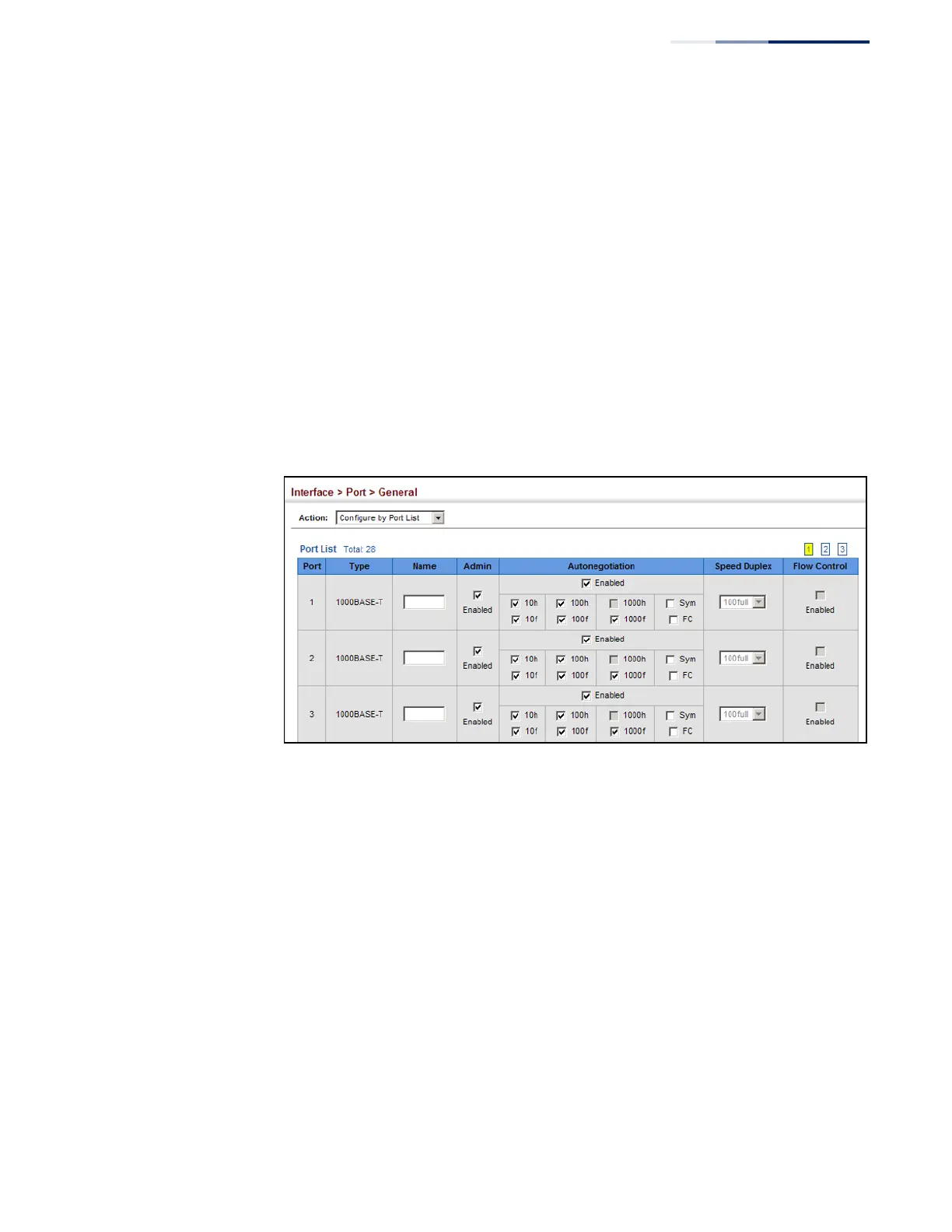

Figure 29: Configuring Connections by Port List
Configuring by
Port Range
Use the Interface > Port > General (Configure by Port Range) page to enable/
disable an interface, set auto-negotiation and the interface capabilities to
advertise, or manually fix the speed, duplex mode, and flow control.
For more information on command usage and a description of the parameters,
refer to “Configuring by Port List” on page 95.
Web Interface
To configure port connection parameters:
1. Click Interface, Port, General.
2. Select Configure by Port Range from the Action List.
3. Enter to range of ports to which your configuration changes apply.
4. Modify the required interface settings.
