Chapter 5
| VLAN Configuration
IEEE 802.1Q Tunneling
– 153 –
4. Click Apply.

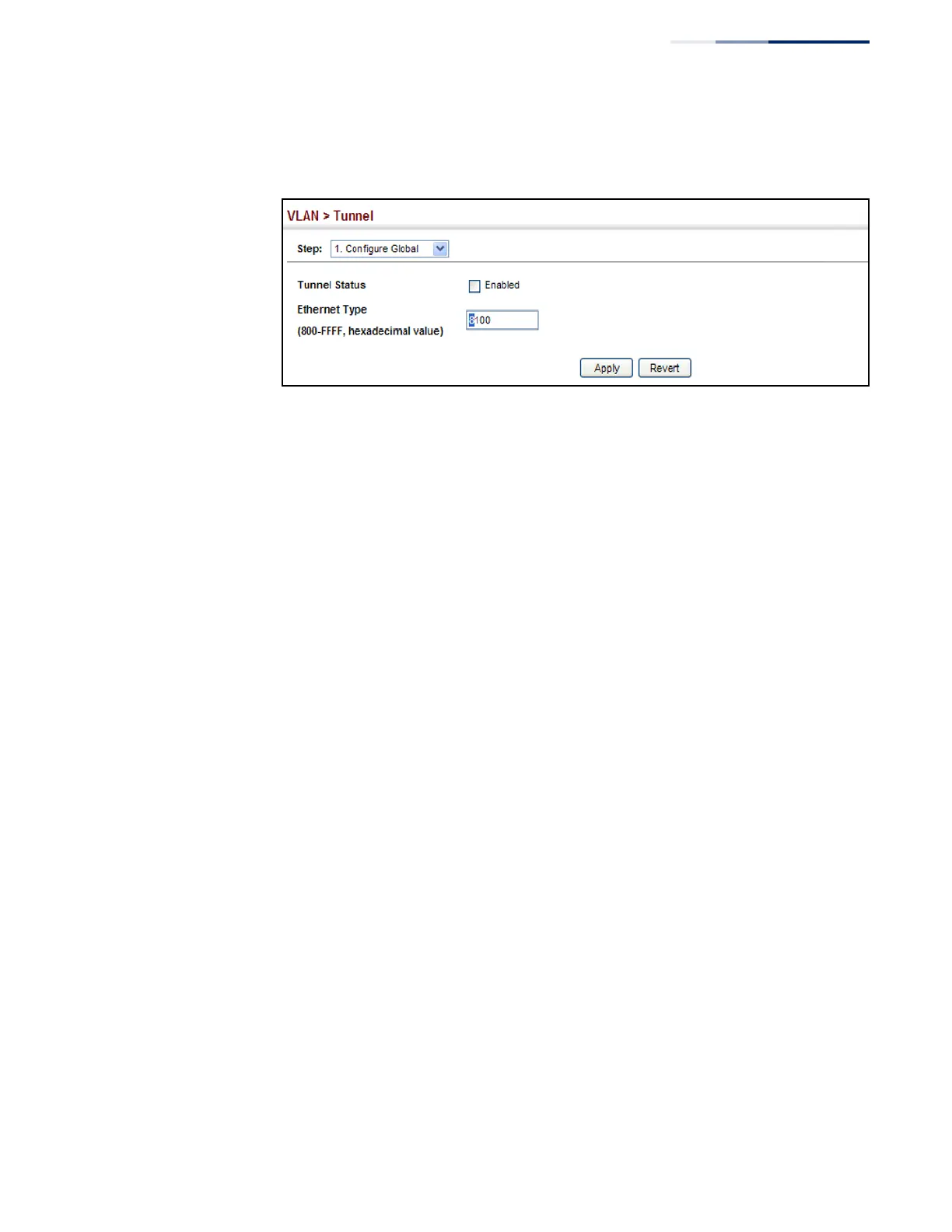

Figure 79: Enabling QinQ Tunneling
Adding an Interface to
a QinQ Tunnel
Follow the guidelines in the preceding section to set up a QinQ tunnel on the
switch. Then use the VLAN > Tunnel (Configure Interface) page to set the tunnel
mode for any participating interface.
Command Usage
◆ Use the Configure Global page to set the switch to QinQ mode before
configuring a tunnel access port or tunnel uplink port (see “Enabling QinQ
Tunneling on the Switch” on page 152). Also set the Tag Protocol Identifier
(TPID) value of the tunnel access port if the attached client is using a
nonstandard 2-byte ethertype to identify 802.1Q tagged frames.
◆ Then use the Configure Interface page to set the access interface on the edge
switch to Access mode, and set the uplink interface on the switch attached to
the service provider network to Uplink mode.
Parameters
These parameters are displayed:
◆ Interface – Displays a list of ports or trunks.
◆ Port – Port Identifier. (Range: 1-12/28)
◆ Trunk – Trunk Identifier. (Range: 1-8/12)
◆ Mode – Sets the VLAN membership mode of the port.
■
None – The port operates in its normal VLAN mode. (This is the default.)
■
Access – Configures QinQ tunneling for a client access port to segregate
and preserve customer VLAN IDs for traffic crossing the service provider
network.
■
Uplink – Configures QinQ tunneling for an uplink port to another device
within the service provider network.
