Chapter 12 | Security Measures
Network Access (MAC Address Authentication)
– 275 –
VLAN to use when MAC Authentication or 802.1X Authentication fails, and the
dynamic VLAN and QoS assignments.
5. Click Apply.

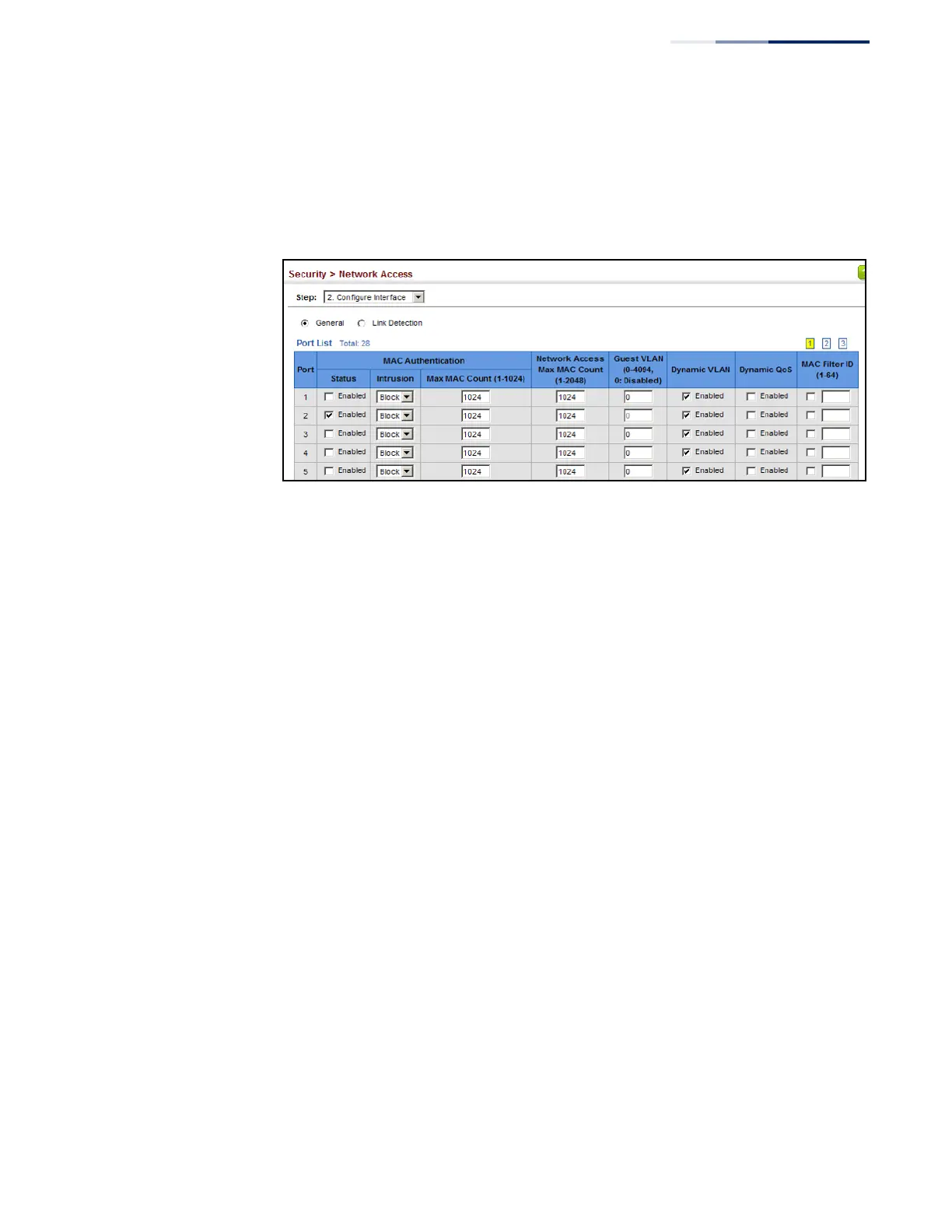

Figure 174: Configuring Interface Settings for Network Access
Configuring Port Link
Detection
Use the Security > Network Access (Configure Interface - Link Detection) page to
send an SNMP trap and/or shut down a port when a link event occurs.
Parameters
These parameters are displayed:
◆ Link Detection Status – Configures whether Link Detection is enabled or
disabled for a port.
◆ Condition – The link event type which will trigger the port action.
■
Link up – Only link up events will trigger the port action.
■
Link down – Only link down events will trigger the port action.
■
Link up and down – All link up and link down events will trigger the port
action.
◆ Action – The switch can respond in three ways to a link up or down trigger
event.
■
Trap – An SNMP trap is sent.
■
Trap and shutdown – An SNMP trap is sent and the port is shut down.
■
Shutdown – The port is shut down.
Web Interface
To configure link detection on switch ports:
1. Click Security, Network Access.
2. Select Configure Interface from the Step list.
