Chapter 12
| Security Measures
Access Control Lists
– 300 –
7. Select the address type (Any, Host, or IP).
8. If you select “Host,” enter a specific address. If you select “IP,” enter a subnet
address and the mask for an address range.
9. Set any other required criteria, such as service type, protocol type, or control
code.
10. Click Apply.

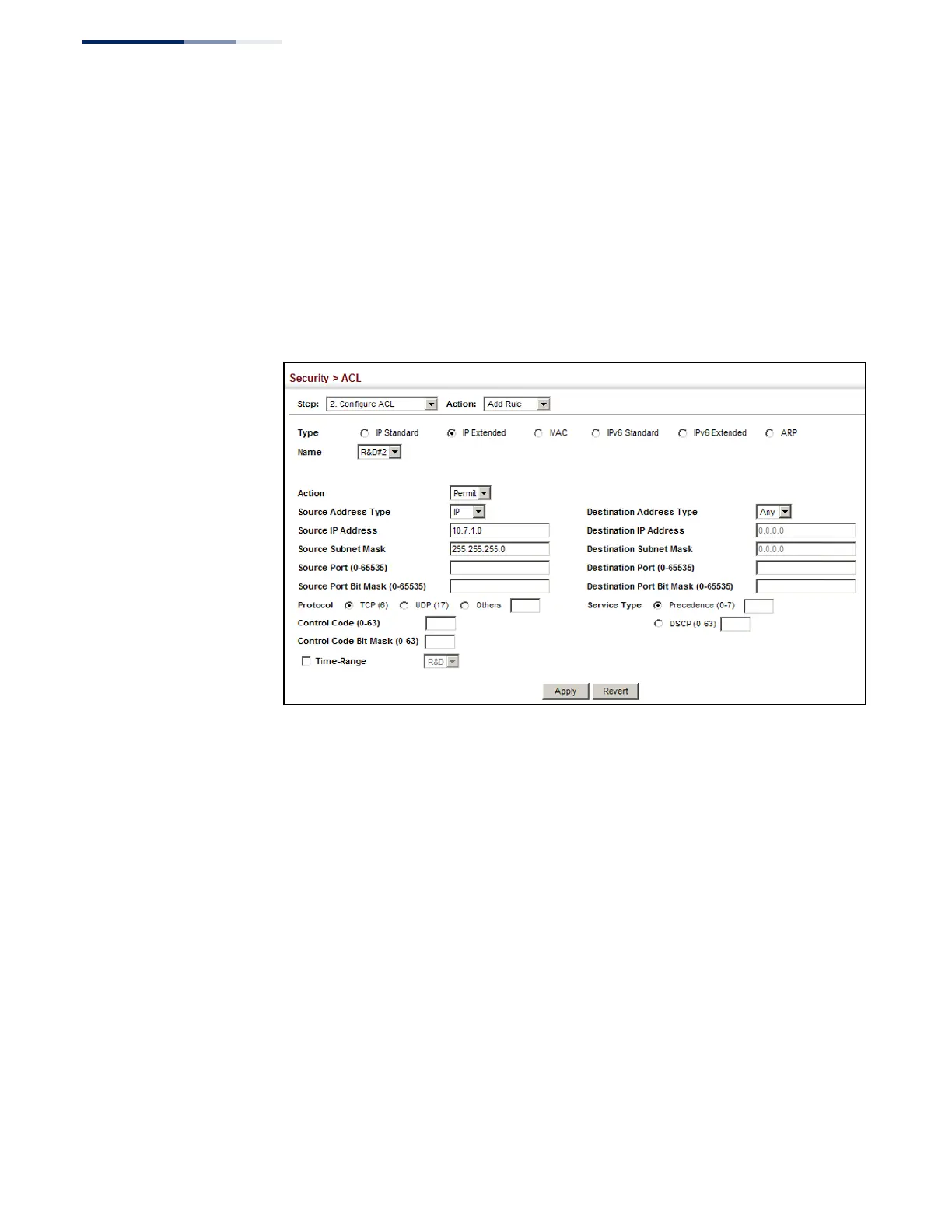

Figure 194: Configuring an Extended IPv4 ACL
Configuring a
Standard IPv6 ACL
Use the Security > ACL (Configure ACL - Add Rule - IPv6 Standard) page to
configure a Standard IPv6ACL.
Parameters
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Source Address Type – Specifies the source IP address. Use “Any” to include all
possible addresses, “Host” to specify a specific host address in the Address field,
or “IPv6-Prefix” to specify a range of addresses. (Options: Any, Host, IPv6-Prefix;
Default: Any)
