Chapter 16
| Multicast Filtering
Filtering and Throttling IGMP Groups
– 491
3. Select Add from the Action list.
4. Enter the number for a profile, and set its access mode.
5. Click Apply.

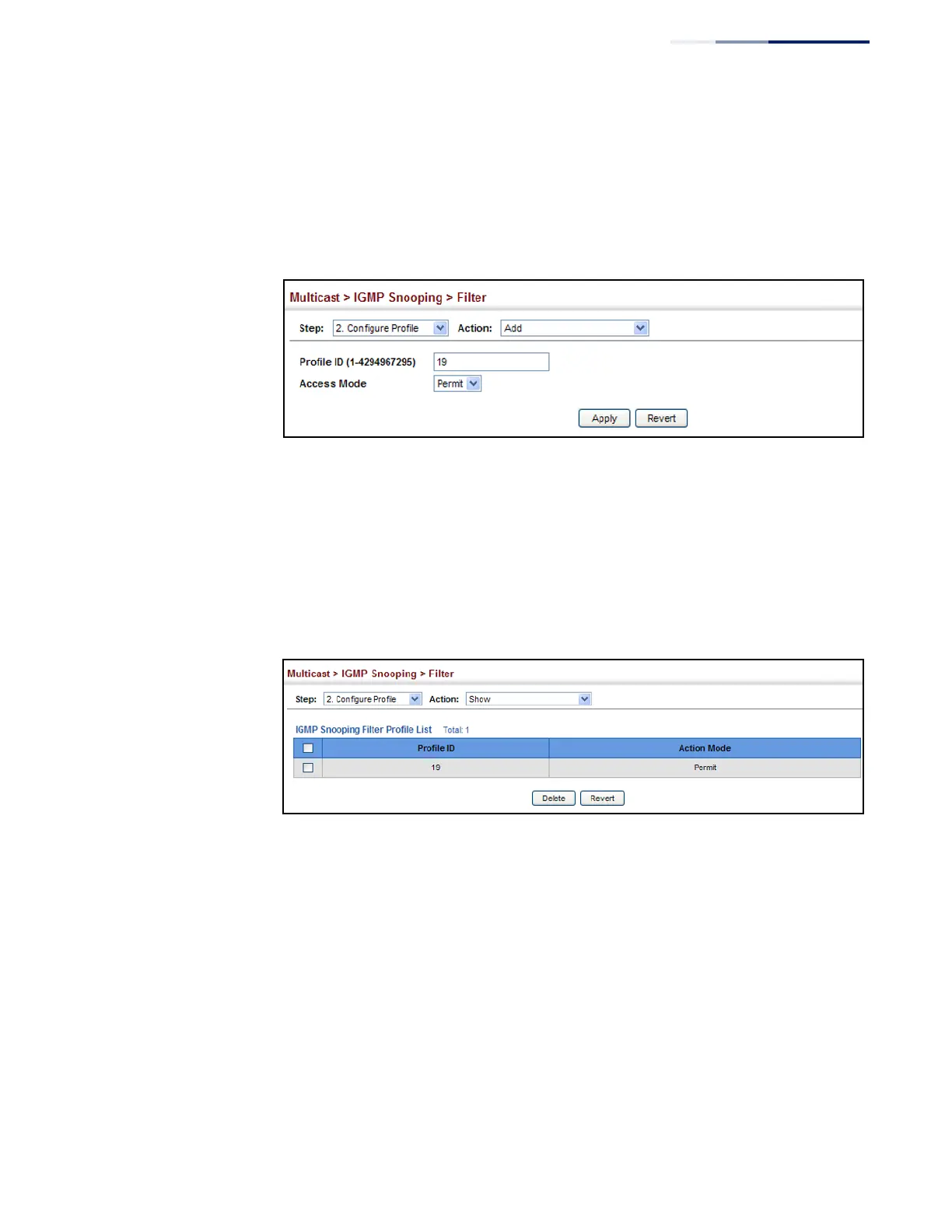

Figure 324: Creating an IGMP Filtering Profile
To show the IGMP filter profiles:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Show from the Action list.
Figure 325: Showing the IGMP Filtering Profiles Created
To add a range of multicast groups to an IGMP filter profile:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Add Multicast Group Range from the Action list.
4. Select the profile to configure, and add a multicast group address or range of
addresses.
5. Click Apply.
