Chapter 5
| VLAN Configuration
IEEE 802.1Q VLANs
– 139 –
◆ Remote VLAN – Reserves this VLAN for RSPAN (see “Configuring Remote Port
Mirroring” on page 101).
Modify
◆ VLAN ID – ID of configured VLAN (1-4094).
◆ VLAN Name – Name of the VLAN (1 to 32 characters).
◆ Status – Enables or disables the specified VLAN.
Show
◆ VLAN ID – ID of configured VLAN.
◆ VLAN Name – Name of the VLAN.
◆ Status – Operational status of configured VLAN.
◆ Remote VLAN – Shows if RSPAN is enabled on this VLAN (see “Configuring
Remote Port Mirroring” on page 101).
Web Interface
To create VLAN groups:
1. Click VLAN, Static.
2. Select Add from the Action list.
3. Enter a VLAN ID or range of IDs.
4. Mark Enabled to configure the VLAN as operational.
5. Specify whether the VLANs are to be used for remote port mirroring.
6. Click Apply.

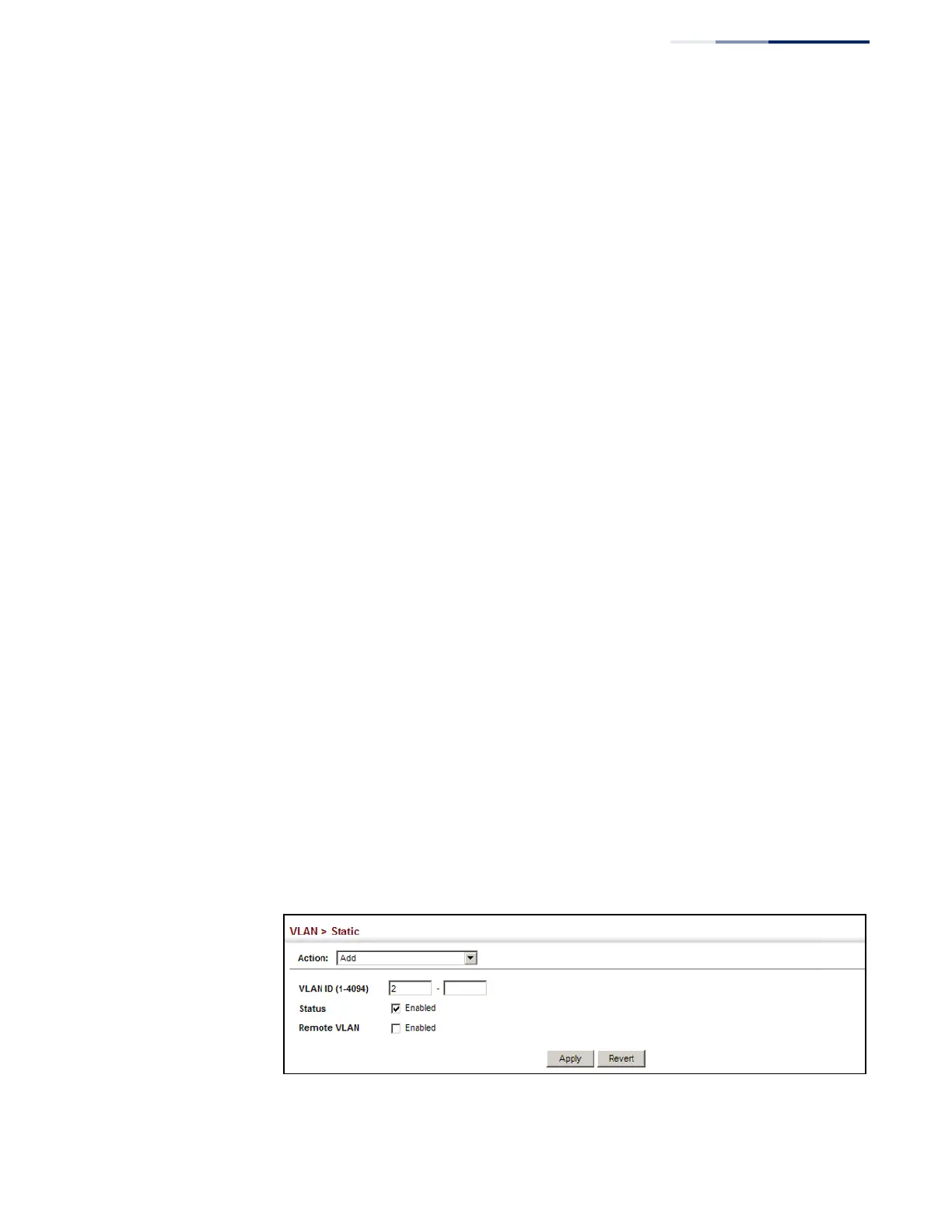

Figure 68: Creating Static VLANs
