Chapter 8
| Congestion Control
Automatic Traffic Control
– 211
Web Interface
To configure the response timers for automatic storm control:
1. Click Traffic, Congestion Control, Automatic Storm Control.
2. Select Configure Interface from the Step field.
3. Enable or disable ATC as required, set the control response, specify whether or
not to automatically release the control response of rate limiting, set the upper
and lower thresholds, and specify which trap messages to send.
4. Click Apply.

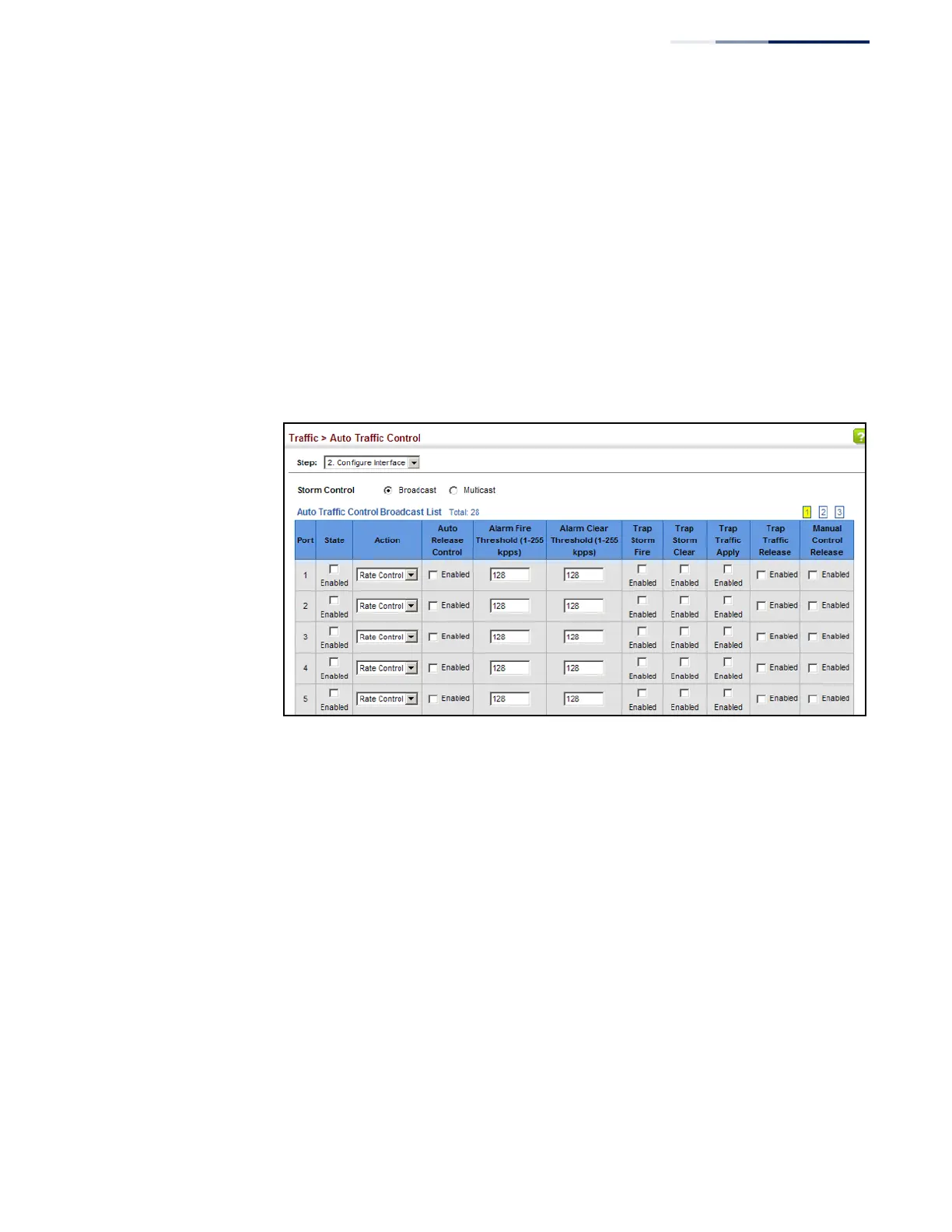

Figure 127: Configuring ATC Interface Attributes
