Chapter 16 | Multicast Filtering
Multicast VLAN Registration
– 509 –
To assign an MVR group address profile to a domain:
1. Click Multicast, MVR.
2. Select Associate Profile from the Step list.
3. Select Add from the Action list.
4. Select a domain from the scroll-down list, and enter the name of a group
profile.
5. Click Apply.

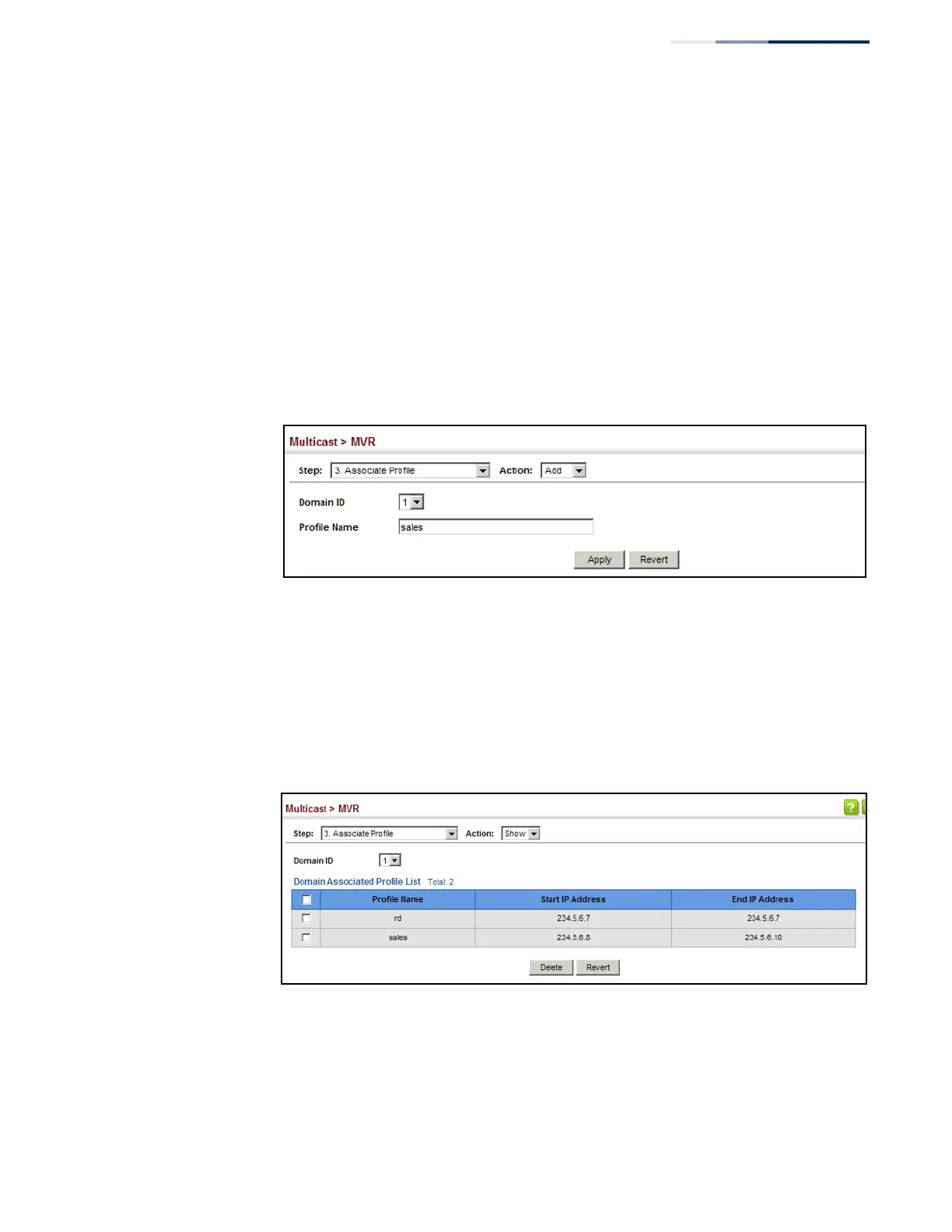

Figure 343: Assigning an MVR Group Address Profile to a Domain
To show the MVR group address profiles assigned to a domain:
1. Click Multicast, MVR.
2. Select Associate Profile from the Step list.
3. Select Show from the Action list.
Figure 344: Showing the MVR Group Address Profiles Assigned to a Domain
