Chapter 16 | Multicast Filtering
Multicast VLAN Registration
– 518 –
To display MVR protocol-related statistics for a VLAN:
1. Click Multicast, MVR.
2. Select Show Statistics from the Step list.
3. Select Show VLAN Statistics from the Action list.
4. Select an MVR domain.
5. Select a VLAN.

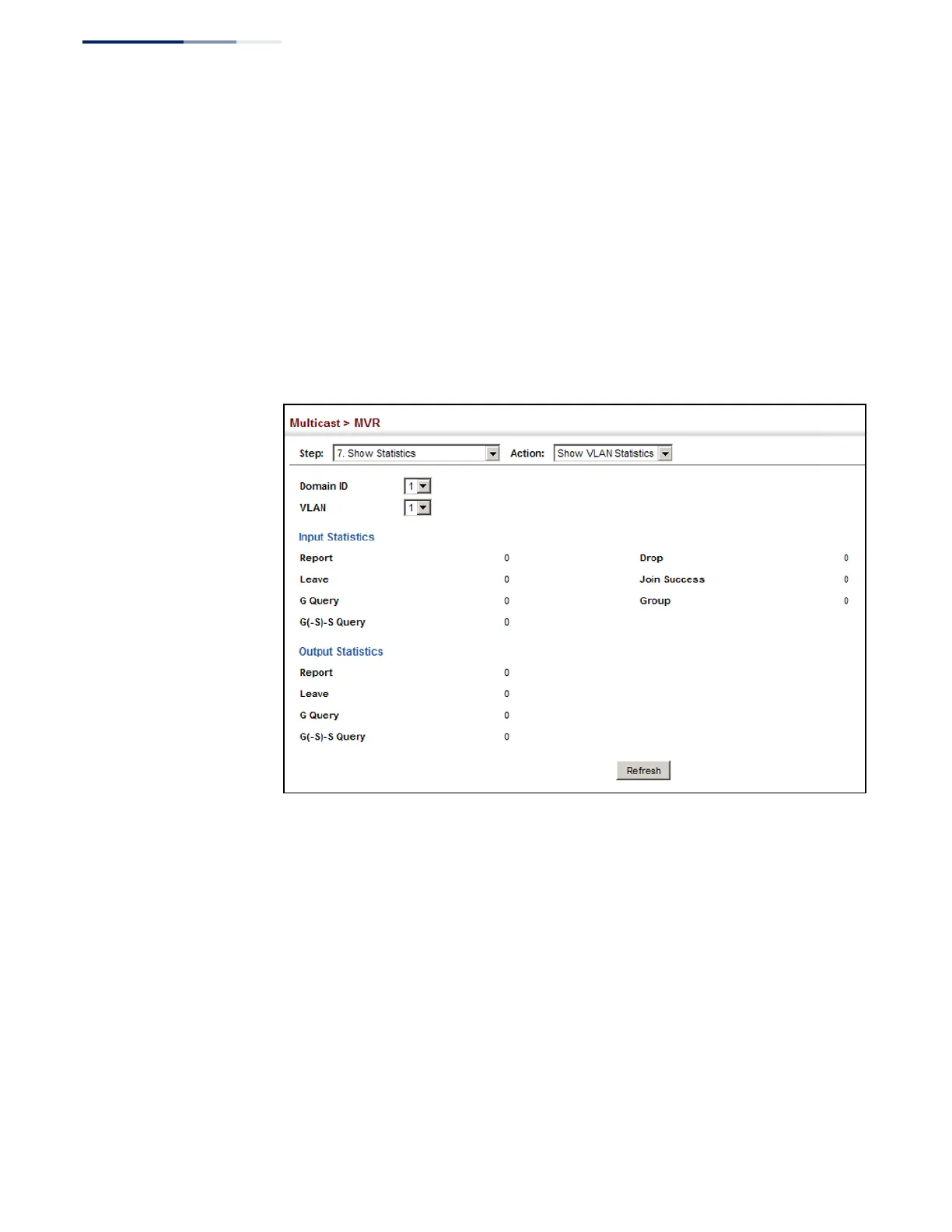

Figure 350: Displaying MVR Statistics – VLAN
