Chapter 4
| Interface Configuration
Trunk Configuration
– 124 –
Web Interface
To display LACP port counters:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Counters.
5. Select a group member from the Port list.

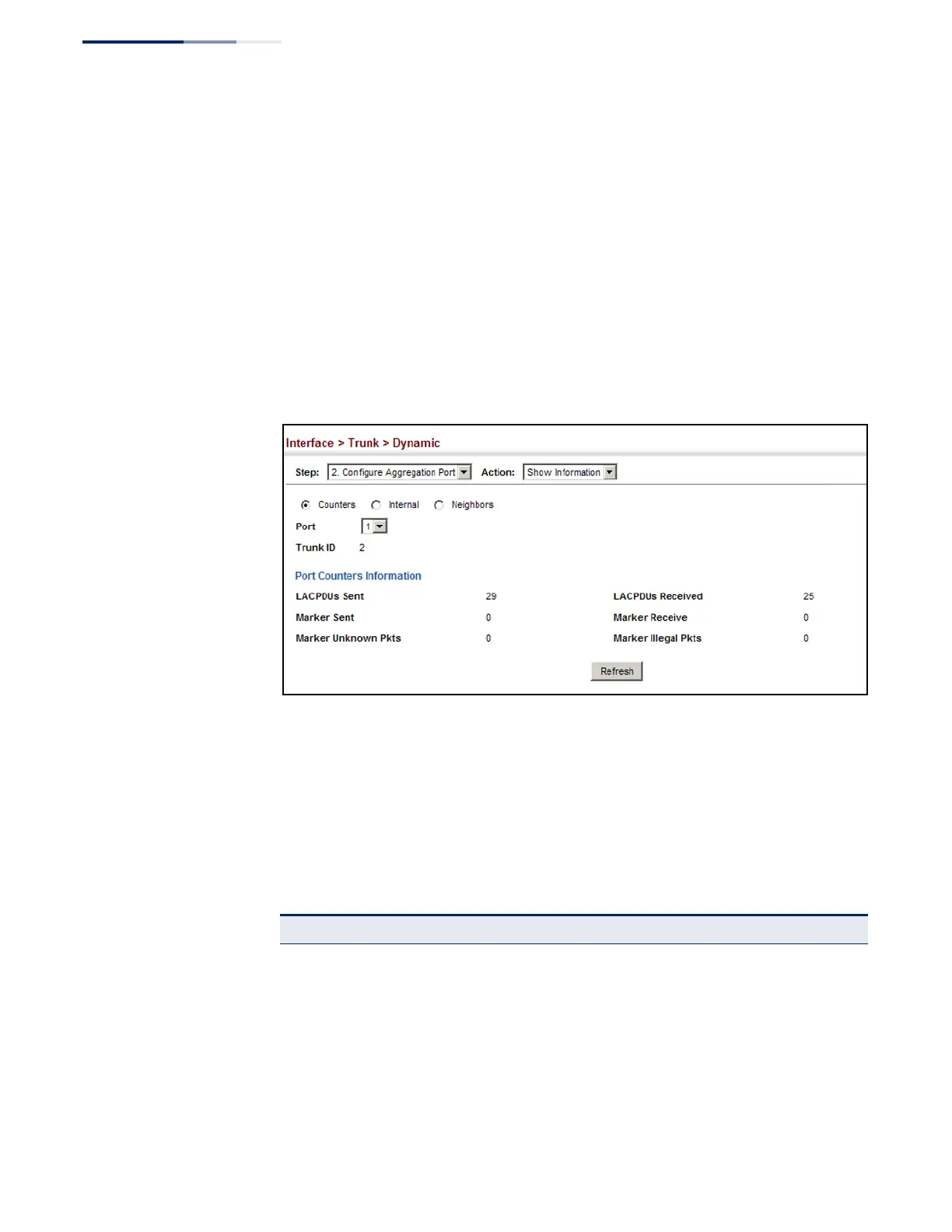

Figure 58: Displaying LACP Port Counters
Displaying LACP
Settings and Status for
the Local Side
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Internal) page to display the configuration settings and operational
state for the local side of a link aggregation.
Parameters
These parameters are displayed:
Table 7: LACP Internal Configuration Information
Parameter Description
LACP System Priority LACP system priority assigned to this port channel.
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin Key Current administrative value of the key for the aggregation port.
Oper Key Current operational value of the key for the aggregation port.
LACPDUs Interval Number of seconds before invalidating received LACPDU information.
