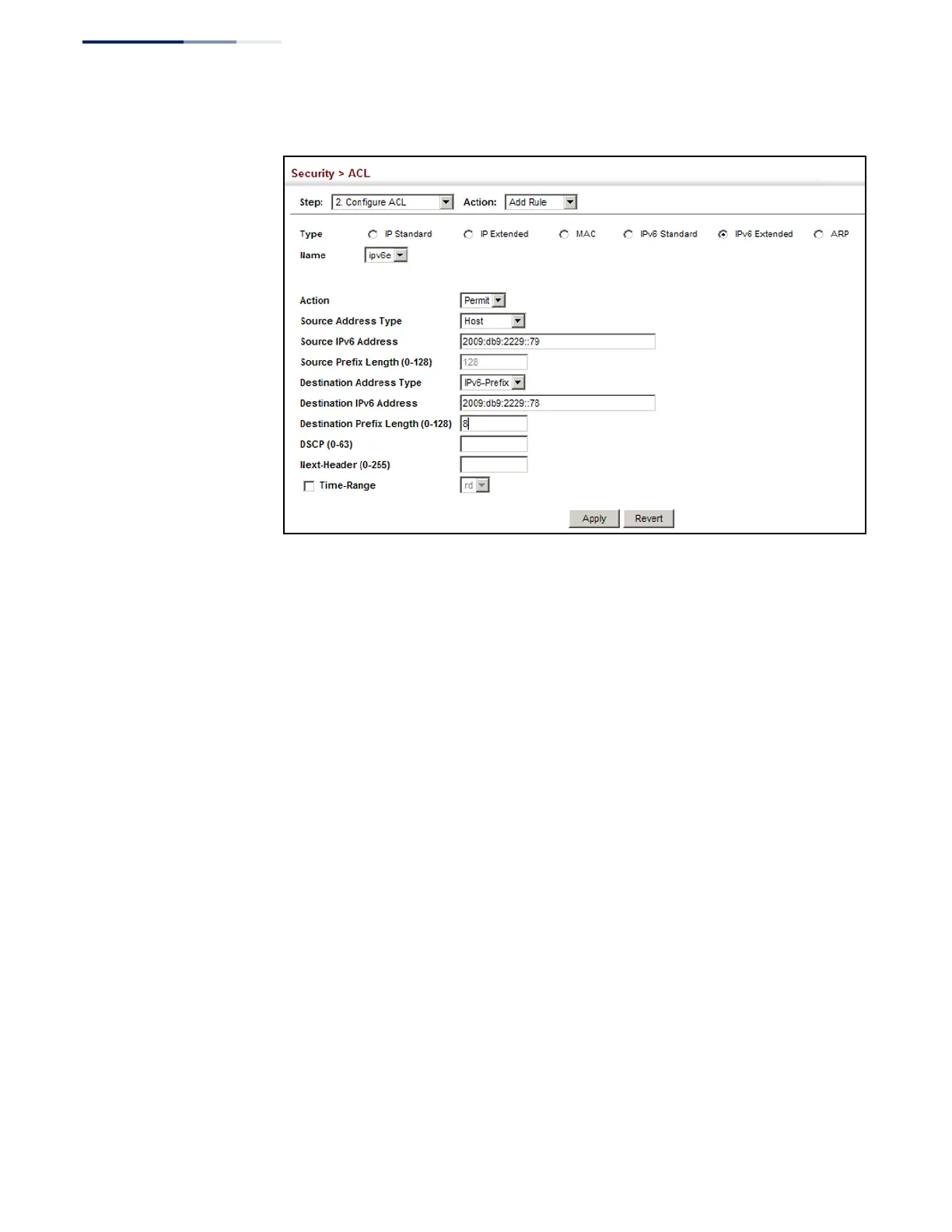

Figure 196: Configuring an Extended IPv6 ACL
Configuring a
MAC ACL
Use the Security > ACL (Configure ACL - Add Rule - MAC) page to configure a MAC
ACL based on hardware addresses, packet format, and Ethernet type.
Parameters
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Source/Destination Address Type – Use “Any” to include all possible
addresses, “Host” to indicate a specific MAC address, or “MAC” to specify an
address range with the Address and Bit Mask fields. (Options: Any, Host, MAC;
Default: Any)
◆ Source/Destination MAC Address – Source or destination MAC address.
◆ Source/Destination Bit Mask – Hexadecimal mask for source or destination
MAC address.
◆ VLAN Header – Specifies the packet header as untagged, tagged, or either.
◆ Packet Format – This attribute includes the following packet types:
■
Any – Any packet format type.
