Chapter 16
| Multicast Filtering
Multicast VLAN Registration
– 514 –

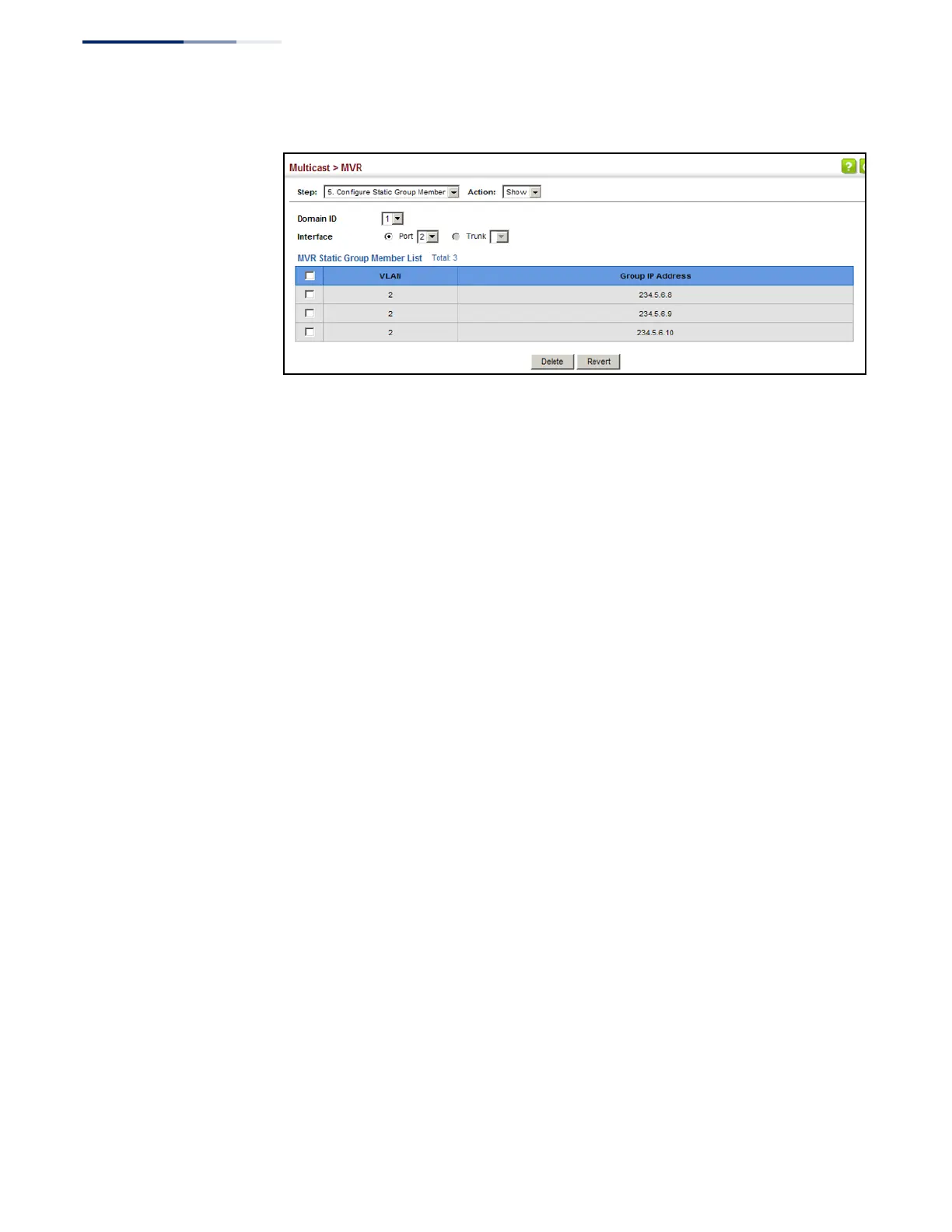

Figure 347: Showing the Static MVR Groups Assigned to a Port
Displaying MVR
Receiver Groups
Use the Multicast > MVR (Show Member) page to show the multicast groups either
statically or dynamically assigned to the MVR receiver groups on each interface.
Parameters
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IP Address – Multicast groups assigned to the MVR VLAN.
◆ VLAN – Indicates the MVR VLAN receiving the multicast service. Note that this
may be different from the MVR VLAN if the group address has been statically
assigned.
◆ Port – Shows the interfaces with subscribers for multicast services provided
through the MVR VLAN.
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is received
from currently active or new clients.
◆ Count – The number of multicast services currently being forwarded from the
MVR VLAN.
Web Interface
To show the interfaces associated with multicast groups assigned to the MVR VLAN:
1. Click Multicast, MVR.
2. Select Show Member from the Step list.
3. Select an MVR domain.
