Chapter 4
| Interface Configuration
Port Configuration
– 108 –
Web Interface
To show a list of port statistics:
1. Click Interface, Port, Statistics.
2. Select the statistics mode to display (Interface, Etherlike, RMON or Utilization).
3. Select a port from the drop-down list.
4. Use the Refresh button at the bottom of the page if you need to update the
screen.

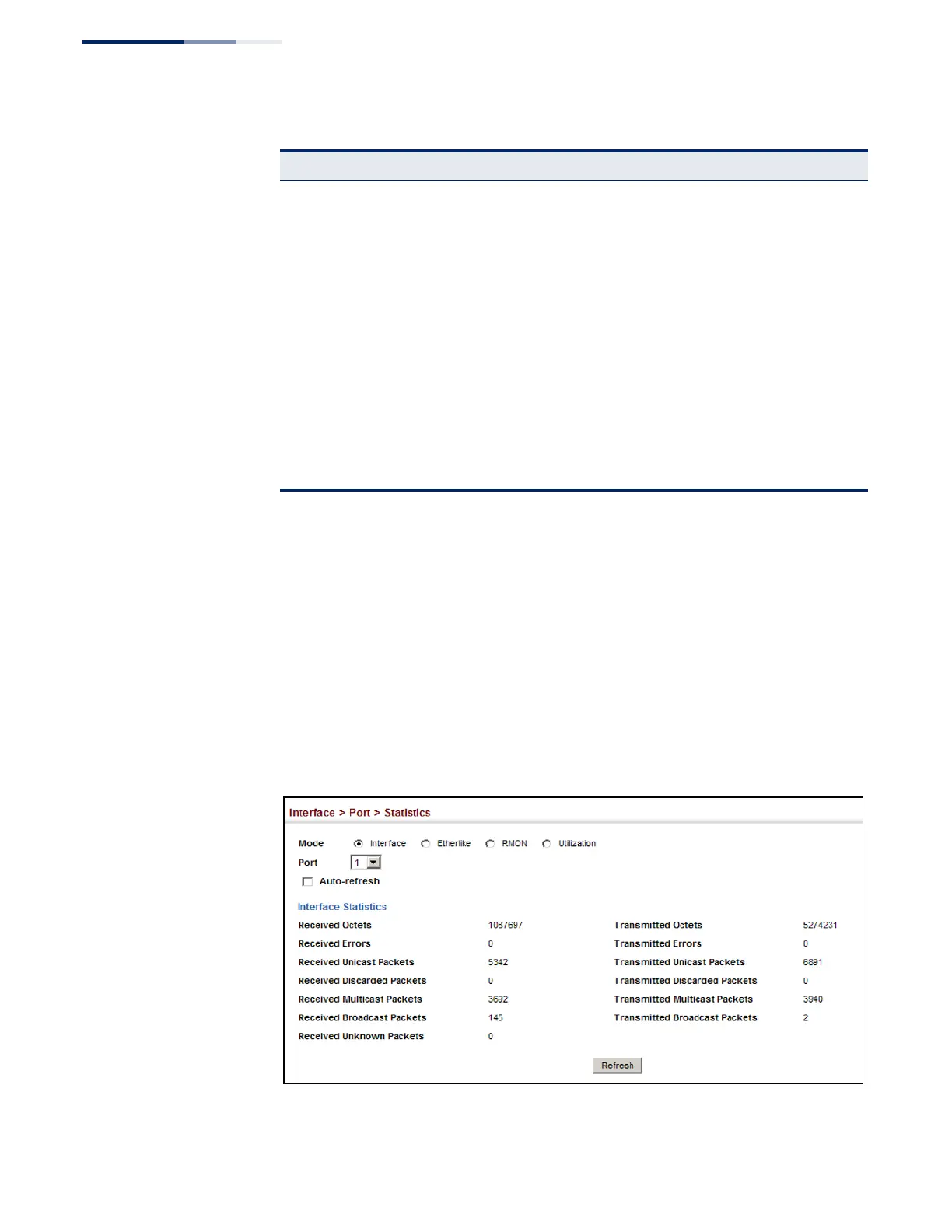

Figure 39: Showing Port Statistics (Table)
65-127 Byte Packets
128-255 Byte Packets
256-511 Byte Packets
512-1023 Byte Packets
1024-1518 Byte Packets
1519-1536 Byte Packets
The total number of packets (including bad packets) received and
transmitted where the number of octets fall within the specified range
(excluding framing bits but including FCS octets).
Utilization Statistics
Received Octet Rate Number of octets entering this interface in kbits per second.
Received Packet Rate Number of packets entering this interface in packets per second.
Received Utilization The input utilization rate for this interface.
Transmitted Octet Rate Number of octets leaving this interface in kbits per second.
Transmitted Packet Rate Number of packets leaving this interface in packets per second.
Transmitted Utilization The output utilization rate for this interface.
Table 5: Port Statistics (Continued)
Parameter Description
To Next Page
