Chapter 16 | Multicast Filtering
Layer 2 IGMP (Snooping and Query)
– 487 –
◆ G(-S)-S Query – The number of group specific or group-and-source specific
query messages sent from this interface.
Web Interface
To display statistics for IGMP snooping query-related messages:
1. Click Multicast, IGMP Snooping, Statistics.
2. Select Show Query Statistics from the Action list.
3. Select a VLAN.

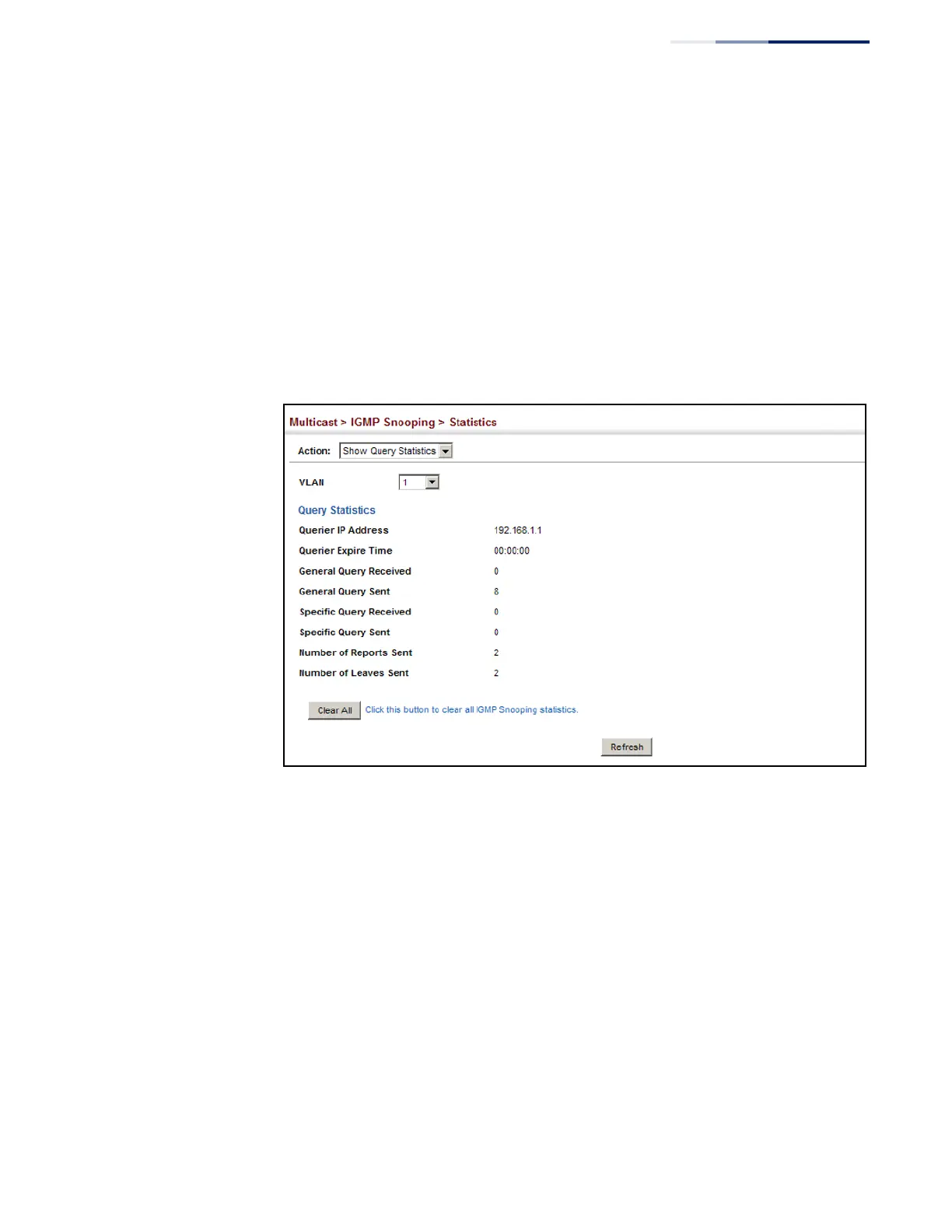

Figure 320: Displaying IGMP Snooping Statistics – Query
To display IGMP snooping protocol-related statistics for a VLAN:
1. Click Multicast, IGMP Snooping, Statistics.
2. Select Show VLAN Statistics from the Action list.
3. Select a VLAN.
