Chapter 5
| VLAN Configuration
IEEE 802.1Q VLANs
– 140 –
To modify the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Modify from the Action list.
3. Select the identifier of a configured VLAN.
4. Modify the VLAN name or operational status as required.
5. Click Apply.

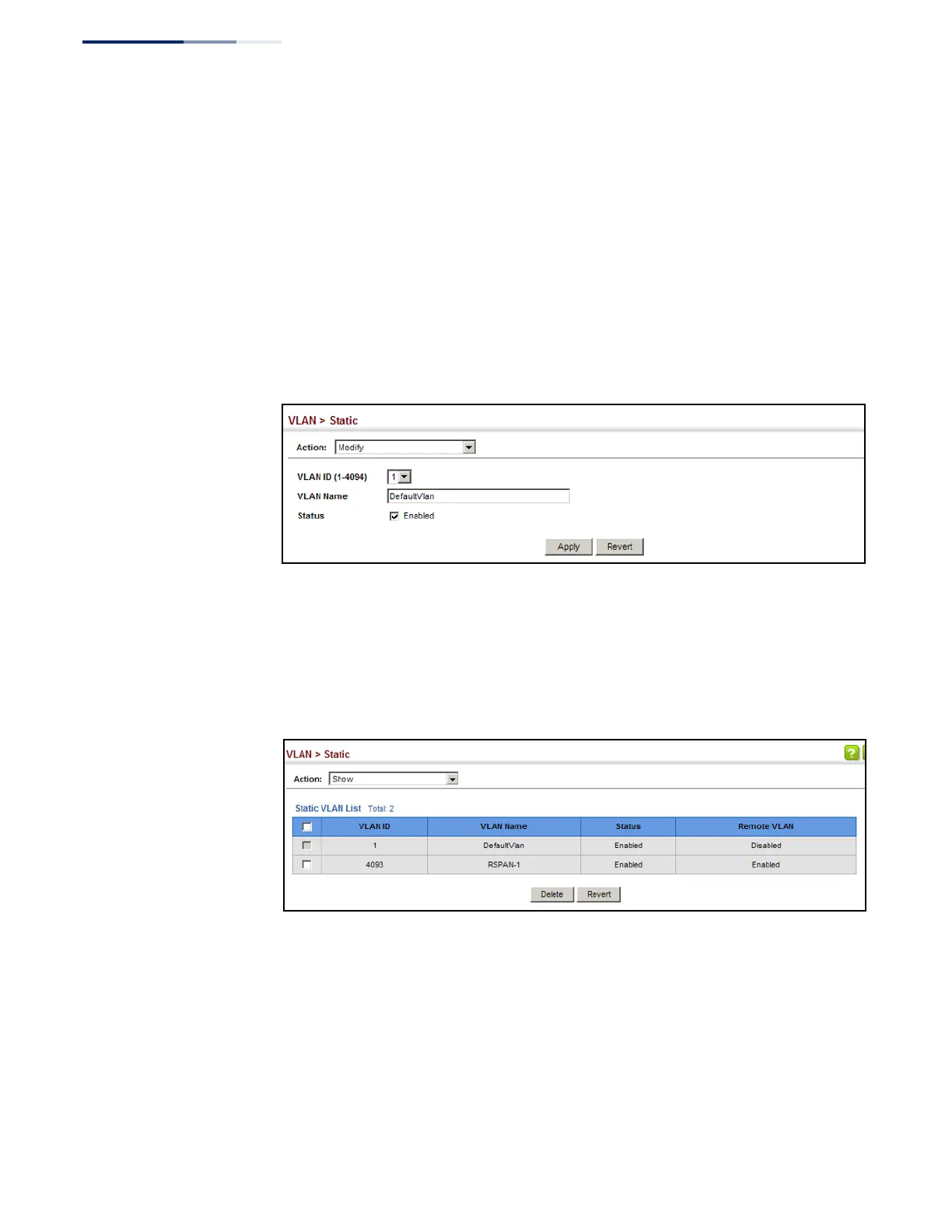

Figure 69: Modifying Settings for Static VLANs
To show the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Show from the Action list.
Figure 70: Showing Static VLANs
Adding Static
Members to VLANs
Use the VLAN > Static (Modify VLAN and Member Ports, Edit Member by Interface,
or Edit Member by Interface Range) pages to configure port members for the
selected VLAN index, interface, or a range of interfaces. Use the menus for editing
port members to configure the VLAN behavior for specific interfaces, including the
mode of operation (Hybrid or 1Q Trunk), the default VLAN identifier (PVID),
accepted frame types, and ingress filtering. Assign ports as tagged if they are
connected to 802.1Q VLAN compliant devices, or untagged they are not connected
to any VLAN-aware devices. Or configure a port as forbidden to prevent the switch
from automatically adding it to a VLAN via the GVRP protocol.
