Chapter 2
| Using the Web Interface
Navigating the Web Browser Interface
– 46 –
Panel Display The web agent displays an image of the switch’s ports. The Mode can be set to
display different information for the ports, including Active (i.e., up or down),
Duplex (i.e., half or full duplex), or Flow Control (i.e., with or without flow control).

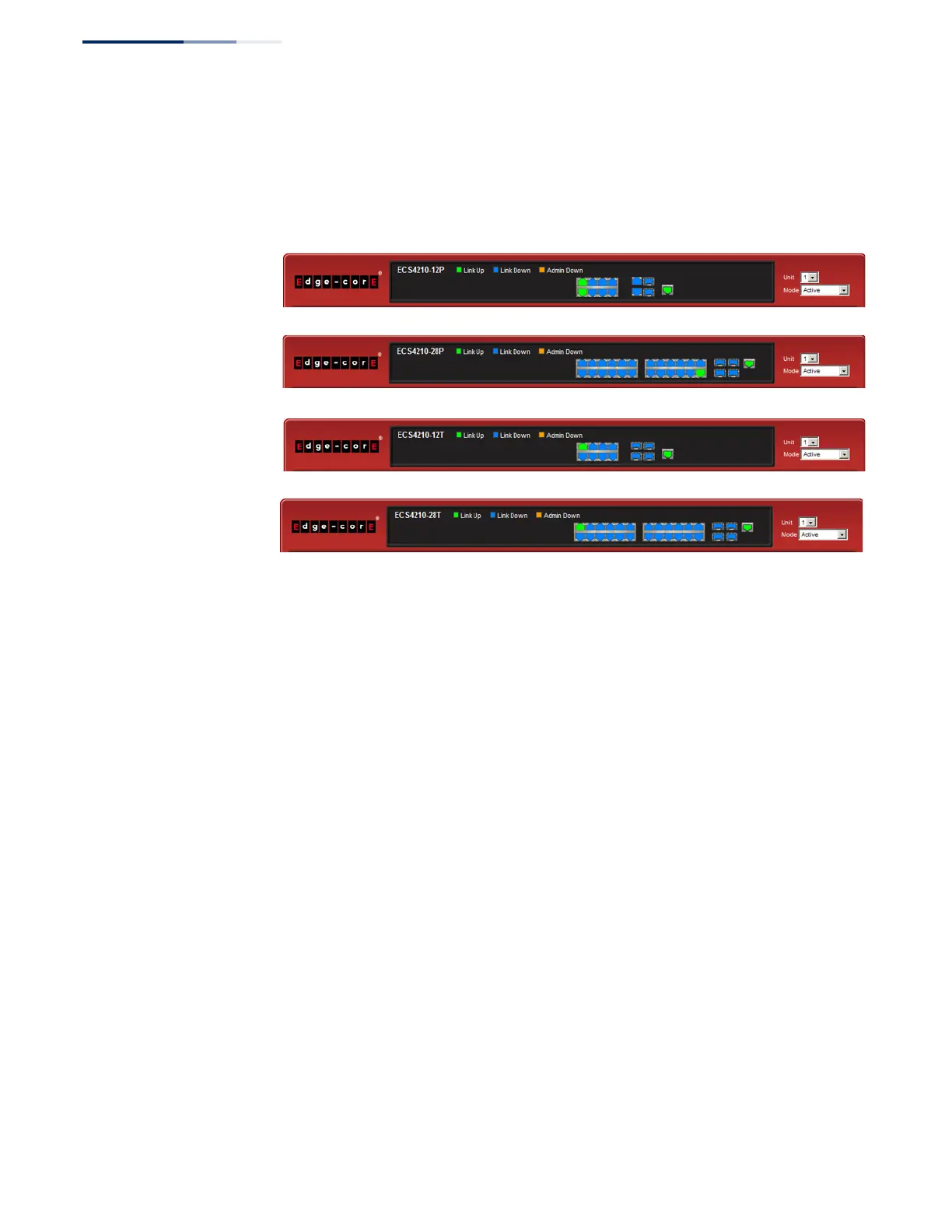

Figure 2: Front Panel Indicators
ECS4210-12P
ECS4210-28P
ECS4210-12T
ECS4210-28T
