Edge-Core ECS4210-12P - Figure 202: Showing ACL Statistics; Showing ACL Hardware Counters

Chapter 12 | Security Measures
Access Control Lists
– 311 –
Showing ACL
Hardware Counters
Use the Security > ACL > Configure Interface (Show Hardware Counters) page to
show statistics for ACL hardware counters.
Parameters
These parameters are displayed:
◆ Port – Port identifier. (Range: 1-12/28)
◆ Type – Selects the type of ACL.
◆ Direction – Displays statistics for ingress traffic.
◆ ACL Name – The ACL bound this port.
◆ Action – Shows if action is to permit or deny specified packets.
◆ Rules – Shows the rules for the ACL bound to this port.
◆ Time-Range – Name of a time range.
◆ Hits – Shows the number of packets matching this ACL.
◆ Clear Counter – Clears the hit counter for the specified ACL.
Web Interface
To show statistics for ACL hardware counters:
1. Click Security, ACL.
2. Select Configure Interface from the Step list.
3. Select Show Hardware Counters from the Action list.
4. Select a port.
5. Select ingress or egress traffic.

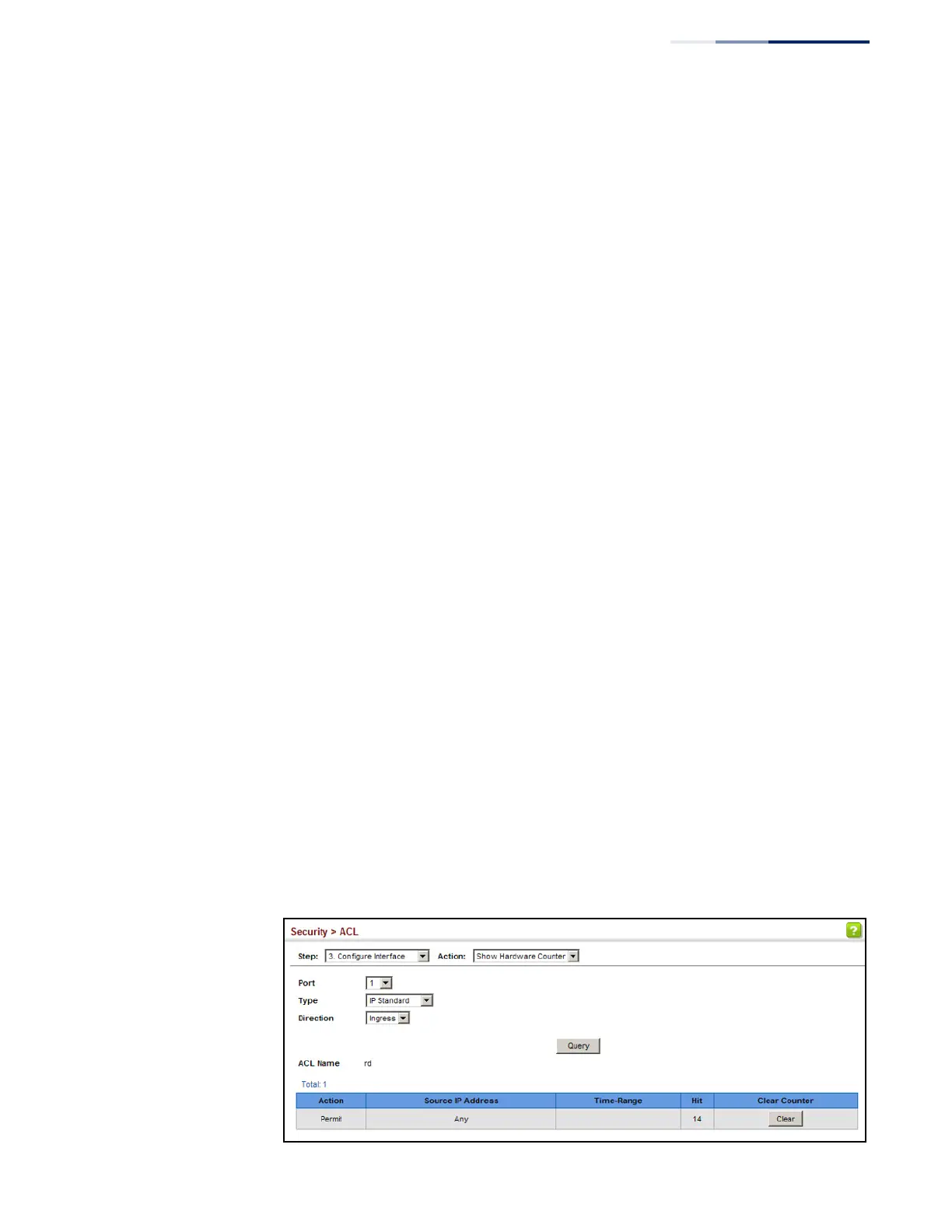

Figure 202: Showing ACL Statistics
