Chapter 7 | Spanning Tree Algorithm
Configuring Multiple Spanning Trees
– 199 –

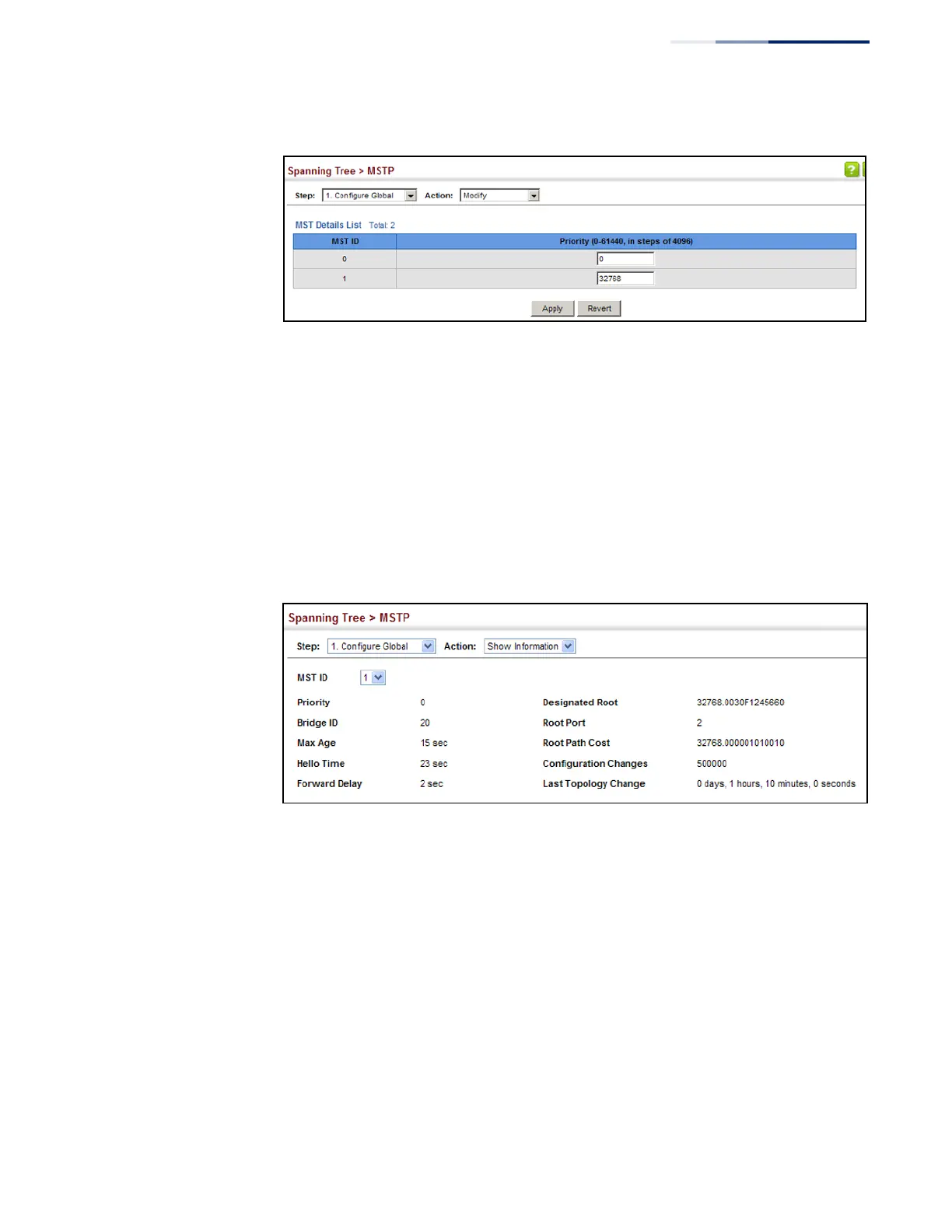

Figure 116: Modifying the Priority for an MST Instance
To display global settings for MSTP:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show Information from the Action list.
4. Select an MST ID. The attributes displayed on this page are described under
“Displaying Global Settings for STA” on page 189.
Figure 117: Displaying Global Settings for an MST Instance
To add additional VLAN groups to an MSTP instance:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Add Member from the Action list.
4. Select an MST instance from the MST ID list.
5. Enter the VLAN group to add to the instance in the VLAN ID field. Note that the
specified member does not have to be a configured VLAN.
6. Click Apply
