Chapter 5
| VLAN Configuration
Protocol VLANs
– 156 –
6. Enter an identifier for the protocol group.]
7. Click Apply.

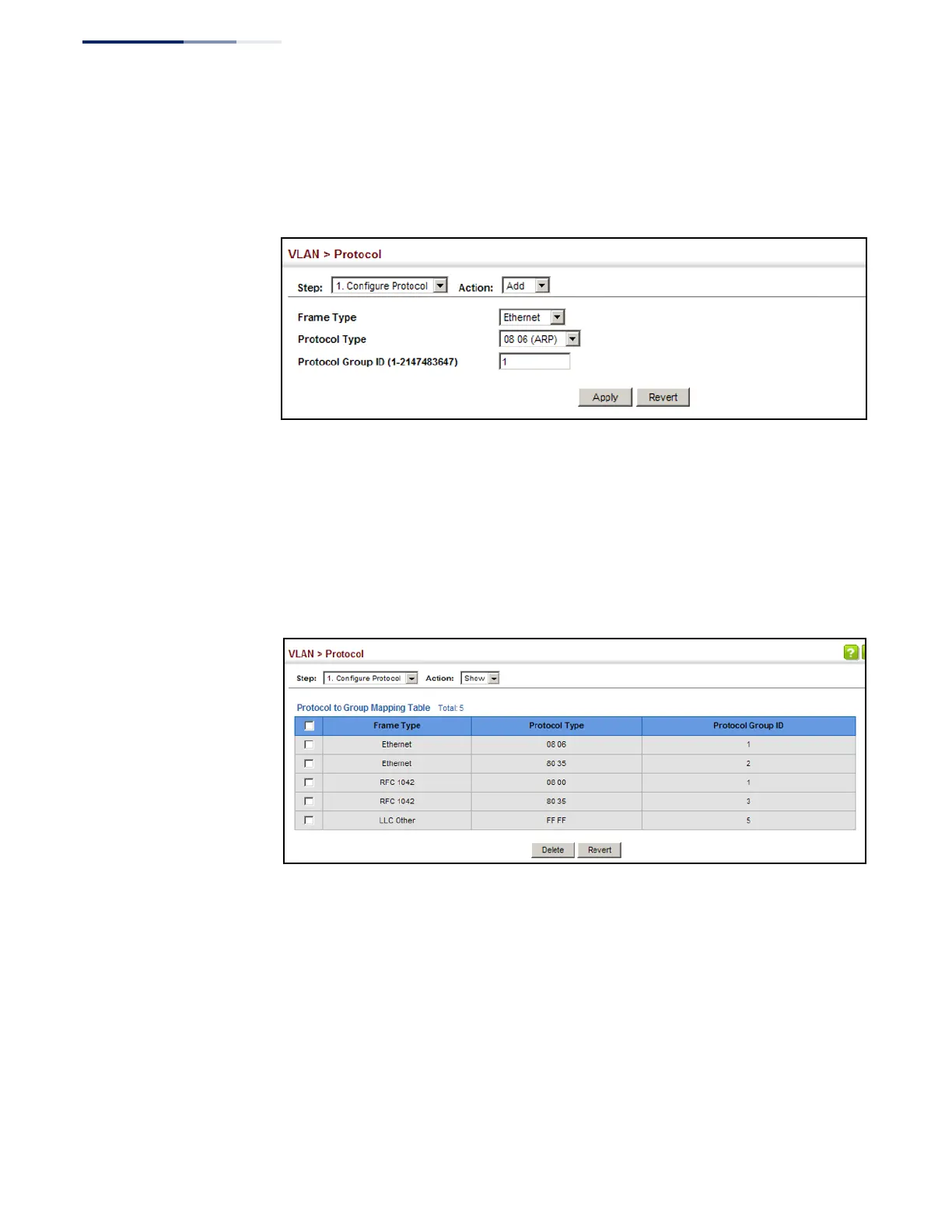

Figure 81: Configuring Protocol VLANs
To configure a protocol group:
1. Click VLAN, Protocol.
2. Select Configure Protocol from the Step list.
3. Select Show from the Action list.
Figure 82: Displaying Protocol VLANs
Mapping Protocol
Groups to Interfaces
Use the VLAN > Protocol (Configure Interface - Add) page to map a protocol group
to a VLAN for each interface that will participate in the group.
Command Usage
â—† When creating a protocol-based VLAN, only assign interfaces using this
configuration screen. If you assign interfaces using any of the other VLAN
menus such as the VLAN Static table (page 140), these interfaces will admit
traffic of any protocol type into the associated VLAN.
