Edge-Core ECS4210-12P Web Management Guide

Chapter 12 | Security Measures
Access Control Lists
– 296 –
Web Interface
To configure the name and type of an ACL:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Add from the Action list.
4. Fill in the ACL Name field, and select the ACL type.
5. Click Apply.

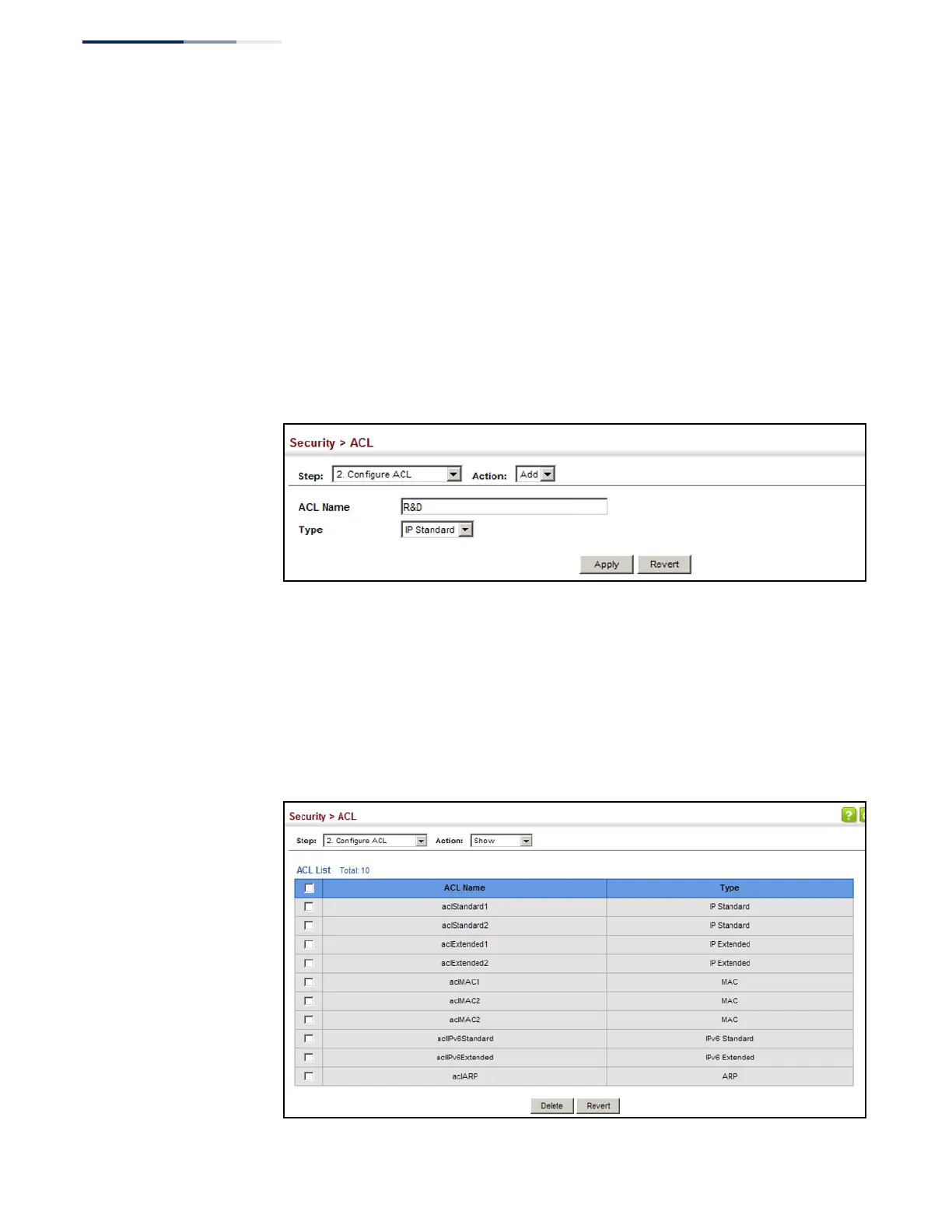

Figure 191: Creating an ACL
To show a list of ACLs:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Show from the Action list.
Figure 192: Showing a List of ACLs
