Chapter 16 | Multicast Filtering
Multicast VLAN Registration
– 513 –
Web Interface
To assign a static MVR group to a port:
1. Click Multicast, MVR.
2. Select Configure Static Group Member from the Step list.
3. Select Add from the Action list.
4. Select an MVR domain.
5. Select a VLAN and port member to receive the multicast stream, and then enter
the multicast group address.
6. Click Apply.

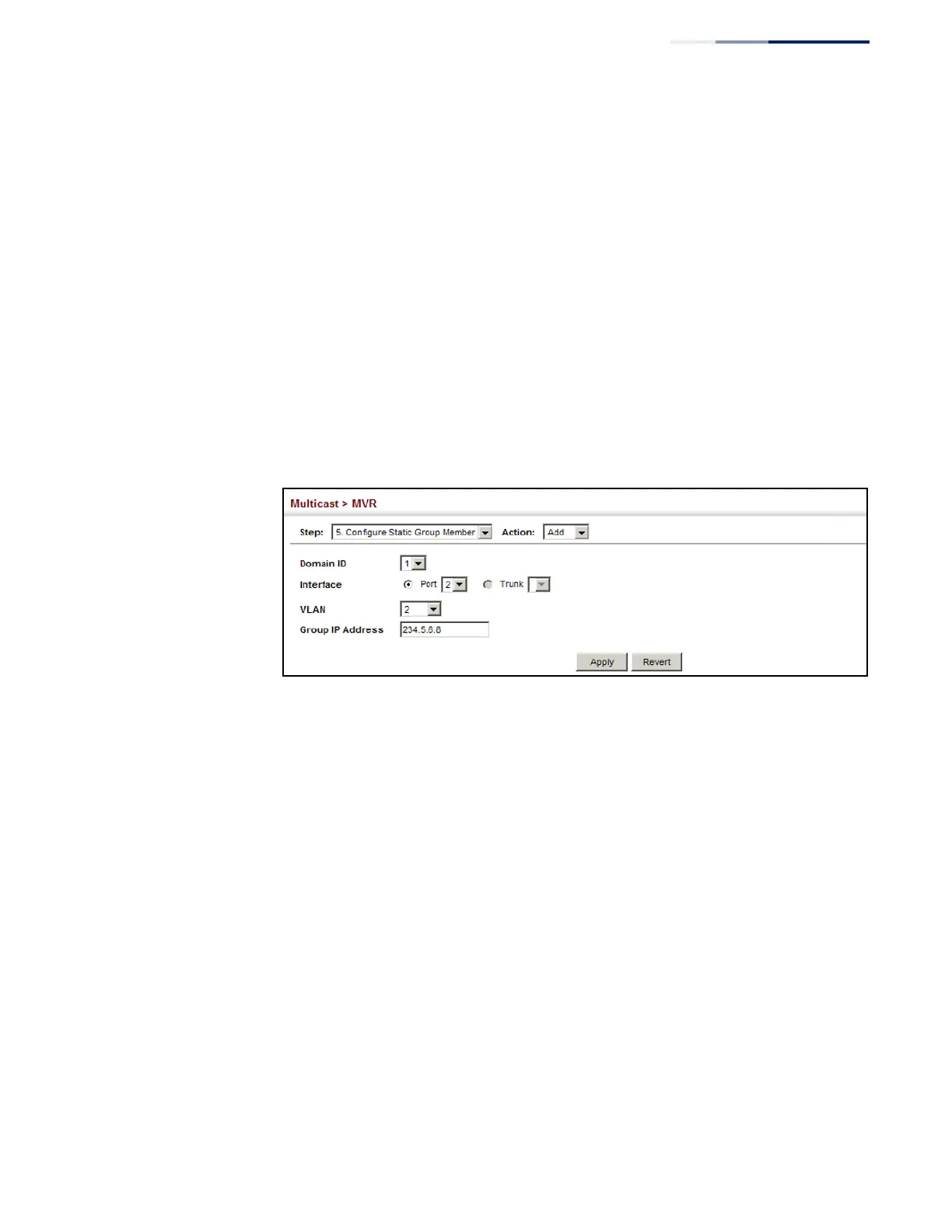

Figure 346: Assigning Static MVR Groups to a Port
To show the static MVR groups assigned to a port:
1. Click Multicast, MVR.
2. Select Configure Static Group Member from the Step list.
3. Select Show from the Action list.
4. Select the port for which to display this information.
